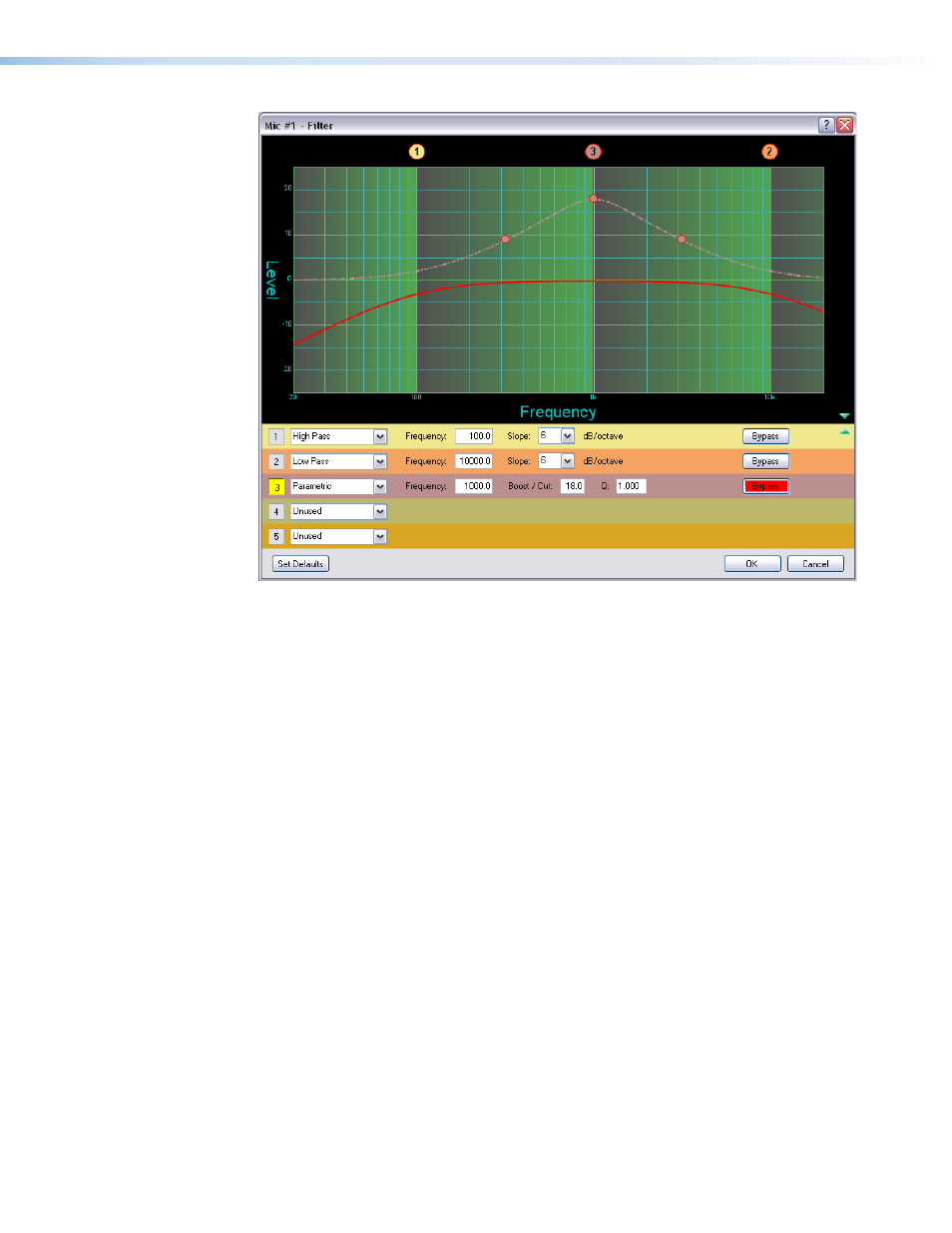

Figure 24. Filter Dialog Box, Filters Added
Within the dialog box, a filter is focused when a filter type is inserted, or is focused by
clicking the filter number to the left of the filter selection drop-down list. Note how box 3
(see figure 24) is highlighted in yellow, indicating it is the filter in focus. When bypassed,
the results of the filter in focus (independent of other filters) will show in the graph as a
dotted line the same color as its filter row. When active (not bypassed), the line is solid.
When multiple filters are enabled, the graph indicates the focused filter result (independent
of other filters) in the color of the filter row in the type/parameters table below the graph.
The composite response of all filters is displayed in red.
