Configure Digital I/O Ports — Live mode only. Opens a utility to configure

digital I/O ports. The DMP 64 provides six digital I/O ports that can be used to trigger
external events from DMP 64 actions, or for external events to trigger DMP actions
(see

Digital I/O Ports

on page 75).

Connect to/Disconnect from Device (depending on Emulate or Live

mode)

— Performs the same functions as the Mode Emulate and Mode Live

buttons.

Issue RESET Command — Initializes and clears the following: mix-points, presets,

processor blocks, and gain blocks. This reset is identical to the E ZXXX} SIS

command (see

SIS Programming and Control

on page 92).

Save changes to device Live mode only. Saves configuration changes

made in the DSP Configurator program to the DMP 64.

Firmware Loader — Calls the Firmware Loader program, which allows updates

without taking the DMP 64 out of service (see

Firmware Loader

on page 136).

Configure Groups — Opens the configure groups dialog box (see

Group

Masters

on page 69).

Device Settings — Live mode only. Opens a dialog box providing a means to

change the IP address, set administrator and user passwords, and select the serial
port baud rate.

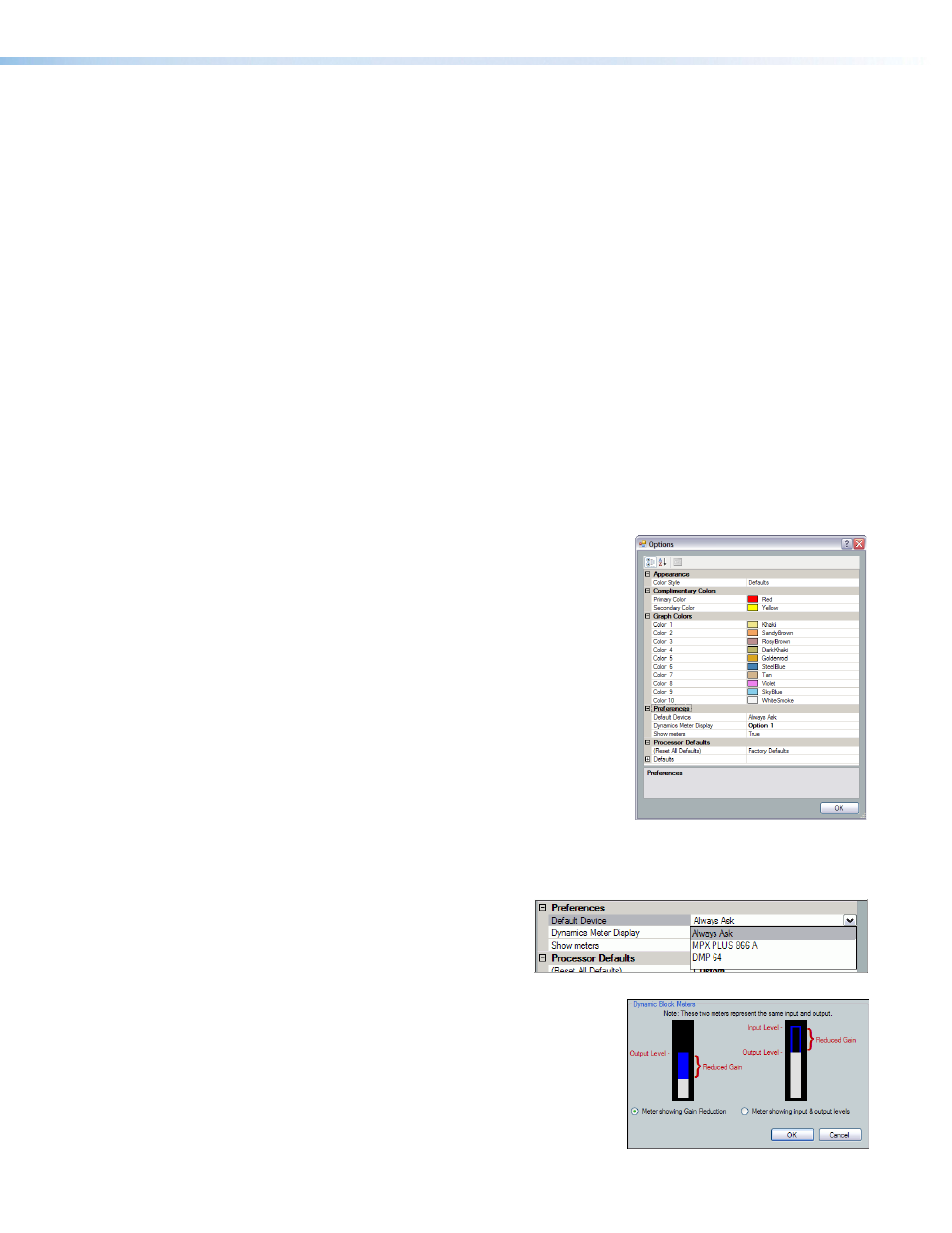

Options — Opens a tabbed dialog box to customize the DSP Configurator

appearance and operation.

Colors — Tailor the appearance of

the various graphs and dialog boxes.

Appearance

uses a selected color scheme

for the complimentary and graph colors.

Complimentary Colors

allows custom

selection of colors used with the various
graphs and dialog boxes.

Graph colors

change the row colors containing the
information and descriptions of the graphs
seen in the processor blocks.

Preferences — The startup splash screen contains options to select the

device to connect to, or to “Always ask” on startup.
The selection can be changed using

Default Device

.

If Show Meters is set to

True

,

Dynamic

Block Meters is used to tailor the
appearance of the dynamics meters to
use the full meter to show input and gain
reduction, or to show the level based on the
output and gain reduction.

DMP 64 • Software Control

24
