Electromagnetic Flow Meter
FW: 842018/842009
Adaptive Batch Counter
The counter adapts compensates for overrun and insufficient flow.
NR Totalizer
Forward
Only f
or ter
minal use
Must not be surrended
A
B
C
D
E
Date
Modification
Scale:
MJK AUTOMATION A/S
Byageren 7
DK-2800 Nñrum
Fax: +45 45 56 06 46
Tel.: +45 45 56 06 56
Date:
Constructor:
Part no.:
Software version
Skala for tegning
Menu system for MagFlux Converter
Converter setup,
Totalizer Forward, Totalizer Reverse
Totalizer Sum, Batch Counter 1, Batch Counter 2
Batch Counter 1
NR Totalizer
Reverse
Reseting the
Batch Counter 1
Automatic
Manually
Adaptive
Back
Select
OK
Mechanical Relay (DO2)
Opto Relay (DO1)
Not in use
Back
Select
OK
Mechanical Relay (DO2)
Opto Relay (DO1)
Number of
preSelected (Units)
00.002778 m
3
Back
Select
>
Not in use
Converter setup
2006 - 09 - 19
841010
Totalizer Forward Unit
l
hl
kl
m
3
ft
3
gal
MG
Back
Select
OK
Totalizer Reverse Unit
l
hl
kl
m
3
ft
3
gal
MG
Back
Select
OK
NR Totalizer
Sum
Totalizer total Unit
l
hl
kl
m
3
ft
3
gal
MG
Back
Select
OK
Batch Counter 1 Unit
l
hl
kl
m
3
ft
3
gal
MG
Back
Select
OK
Pause with Digital Input
Yes
No
Back
Select
OK
Adaptive
Maximum Correction
20%
Back
Select
>
Reset Batch Error
Yes
No
Back
Select
OK
Automatic
Batch Counter 1 Unit
l
hl
kl
m
3
ft
3
gal
MG
Back
Select
OK
Pause with Digital Input
Yes
No
Back
Select
OK
Reseting the
Batch Counter 1
Automatic
Manually
Adaptive
Back
Select
OK
On-time
00100 mSec
Back
Select
>
Number of
preselected (Units)
00.002778 m
3
Back
Select
>
Number of
preSelected (Units)
00.002778 m
3
Back
Select
>
Manually
Batch Counter 2
Reseting the
Batch Counter 2
Automatic
Manually
Adaptive
Back
Select
OK
Mechanical Relay (DO2)
Opto Relay (DO1)
Not in use
Back
Select
OK
Mechanical Relay (DO2)
Opto Relay (DO1)
Number of
preselected (Units)
00.002778 m
3
Back
Select
>
Not in use
Converter setup
Batch Counter 2 Unit
l
hl
kl
m
3
ft
3
gal
MG
Back
Select
OK
Pause with Digital Input
Yes
No
Back
Select
OK
Adaptive
Maximum Correction
20%
Back
Select
>
Reset Batch Error
Yes
No
Back
Select
OK
Automatic
Batch Counter 2 Unit
l
hl
kl
m
3
ft
3
gal
MG
Back
Select
OK
Pause with Digital Input
Yes
No
Back
Select
OK
Reseting the
Batch Counter 2
Automatic
Manually
Adaptive
Back
Select
OK
On-time
00100 mSec
Back
Select
>
Number of
preselected (Units)
00.02778m
3
Back
Select
>
Number of
preSelected (Units)
00.002778 m
3
Back
Select
>
Manually
KJ/LSP
Converter setup
Path: Main Menu - > Converter setup -> NR Totalizer Forward / NR Totalizer Reverse / NR Totalizer Sum / Batch Counter 1 / Batch
Counter 2
Number of preSelected (Units)
The preset batch volume.
Maximum Correction
The correction in percent that triggers an error message or an alarm.
Reset Batch Error
Reset the batch correction percentage to 0%.

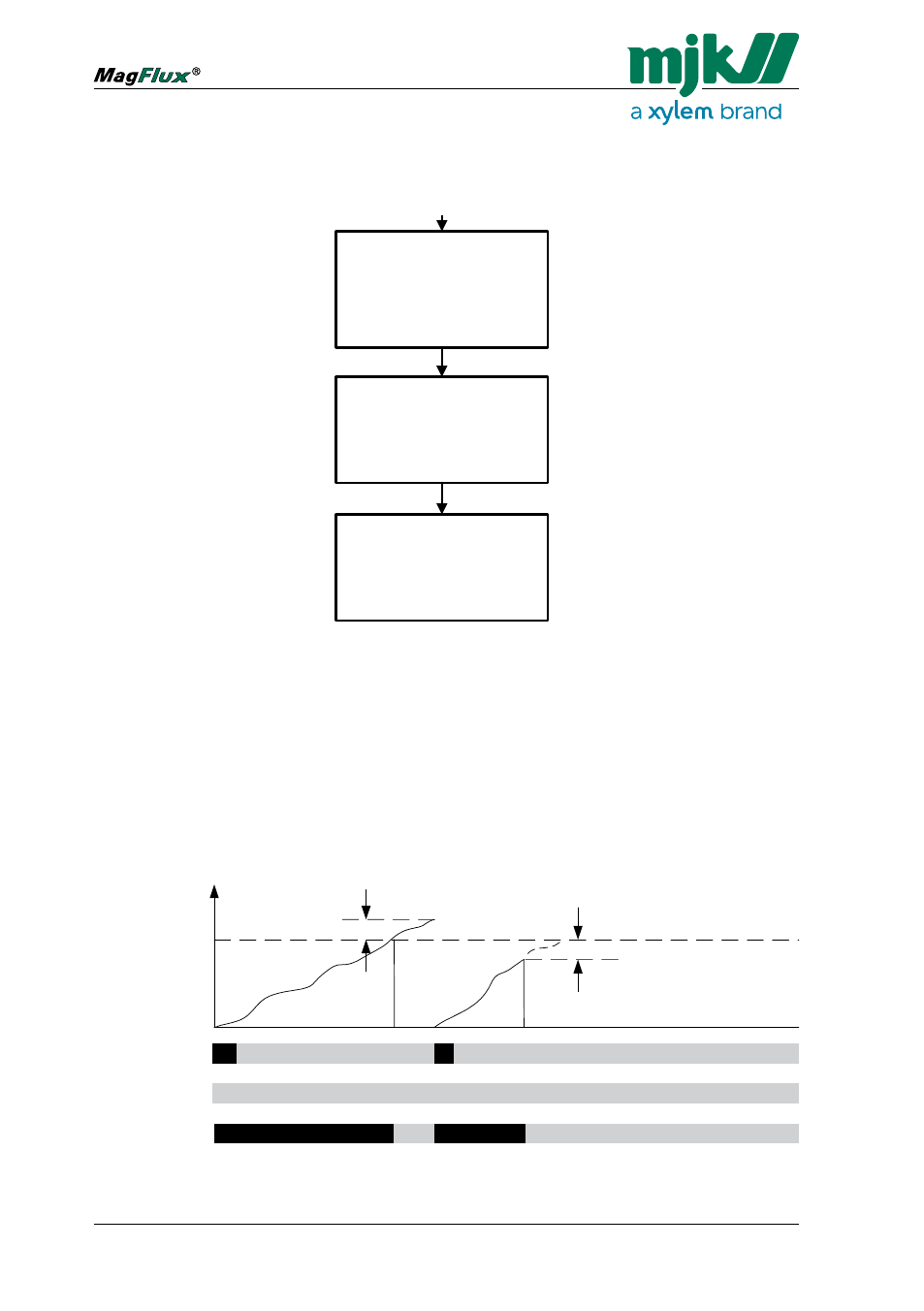

Automatic
Adaptive
Manual
V (volume)
Time
DO 1 or 2
Preset Volume
V (volume)
Time
Start
Preset Volume
Stop
Pause
DO 1 or 2
Function or DO activated
Function or DO deactivated
V (volume)
Time
Start
Stop
DO 1 or 2
overflow %
Dynamic stop of Batch
Preset Volume
