102 EN 3.05 MagFlux Manual 1212
Electromagnetic Flow Meter

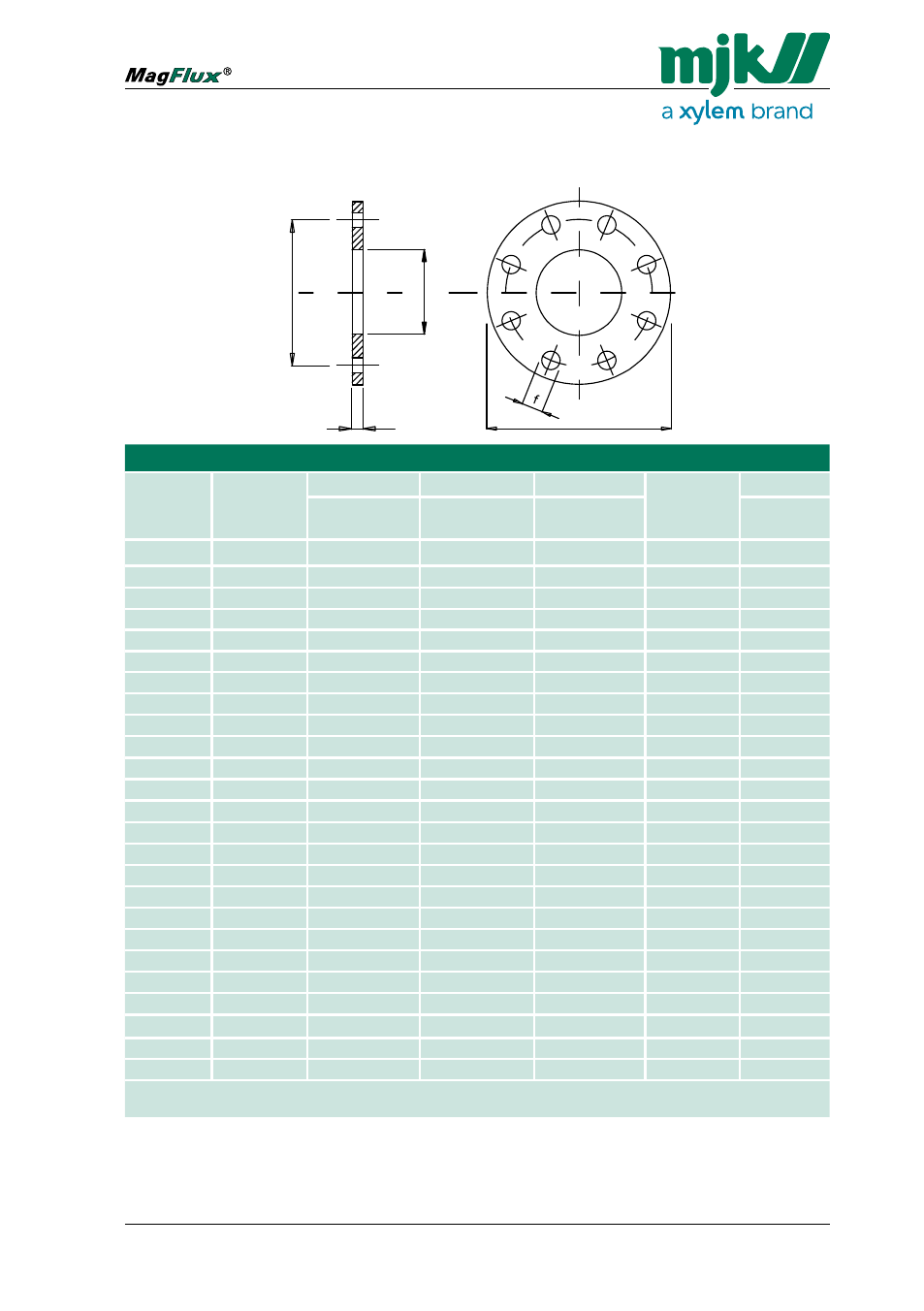

Standard Flanges - ANSI B 16.5 - U.S.A.
a DN
b
D
Flange Dimensions - ANSI B 16.5
Size Pressure
Class
D a b No. of holes f
Outer
diameter
Bolt
diameter
Thickness
[in]
Hole
diameter
[in] [psi] ➀ [in] [in] 150 lbs [in]
½" 150 3.5 2.38 0.44 4 0.62
3/4 " 150 3.9 2.75 0.50 4 0.62
1" 150 4.3 3.12 0.56 4 0.62
1 ¼ 150 4.6 3.50 0.62 4 0.62
1½" 150 5.0 3.88 0.69 4 0.62
2" 150 6.0 4.75 0.75 4 0.75
2½" 150 7.0 5.50 0.88 4 0.75
3" 150 7.5 6.00 0.94 4 0.75
4" 150 9.0 7.50 0.94 8 0.75
5" 150 10.0 8.50 0.94 8 0.88
6" 150 11.0 9.50 1.00 8 0.88
8" 150 13.5 11.75 1.12 8 0.88
10" 150 16.0 14.25 1.19 12 1.00
12" 150 19.0 17.00 1.25 12 1.00
14" 150 21.0 18.75 1.38 14 1.12
16" 150 23.5 21.75 1.44 16 1.12
18” 150 25.0 22.75 1.56 16 1.25
20” 150 27.5 25.00 1.69 20 1.25
24” 150 32.0 29.50 1.88 20 1,38
28” 150 36.5
32” 150 41.4
36” 150 46.0
40” 150 50.2
48” 150 59.4
➀ 300-600-900 psi: Consult the factory.
