Electromagnetic Flow Meter
FW: 842018/842009
8. Mechanical Dimensions
Standard Flanges - EN-1092-1:2001 - Europe
Flange marking: zzz/EN 1092-1/01 A/DN xxxx/PN ww/S235JR/yyyyy
where:
zzz = Manufacturer's name/trademark
EN 1092-1 = Standard number
01 A = Flange type
DN xxxx = DN (size)
PN ww = PN (pressure)
S235JR = Material symbol/no/grade
yyyyy = Traceable ID or control no.

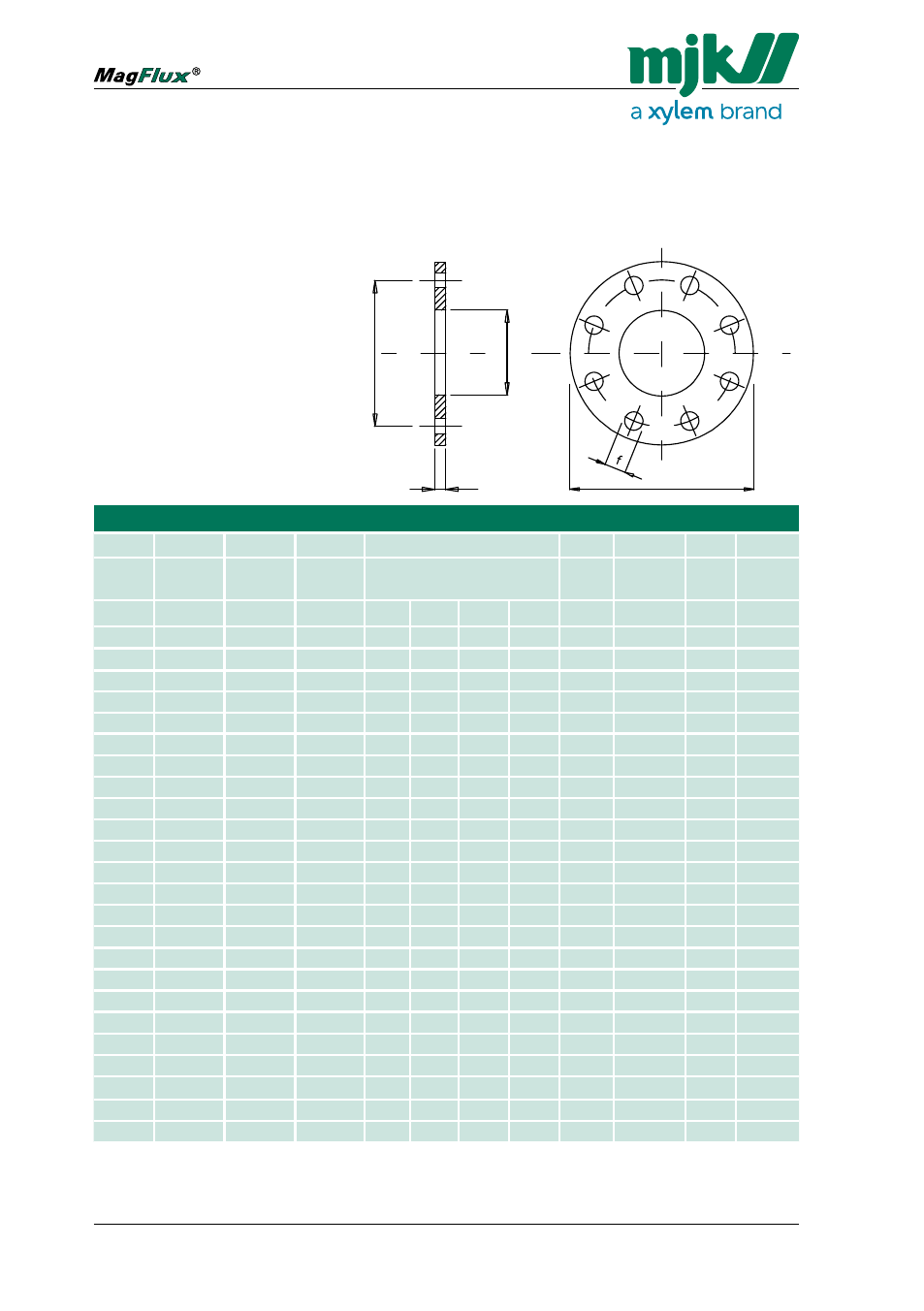

a
DN
b D
Flange Dimensions - EN-1092-1:2001
Size Pressure D a b f
DN PN
Outer
diameter
Bolt
diameter
Thickness
[mm]
No. of
holes
Hole
diameter
Bolt
size Flange
type
[mm] [bar] [mm] [mm] PN 6 PN 10 PN 16 PN 40 [mm]
15 40 95 65 14 4 14 M12 01
20 40 105 75 16 4 14 M12 01
25 40 115 85 16 4 14 M12 01
32 40 140 100 18 4 18 M16 01
40 40 150 110 18 4 18 M16 01
50 16 165 125 19 4 18 M16 01
65 16 185 145 20 8 18 M16 01
80 16 200 160 20 8 18 M16 01
100 16 220 180 22 8 18 M16 01
125 16 250 210 22 8 18 M16 01
150 16 285 240 24 8 22 M20 01
200 16 340 295 26 12 22 M20 01
250 10 395 350 26 12 22 M20 01
300 10 445 400 26 12 22 M20 01
350 10 505 460 28 16 22 M20 01
400 10 565 515 32 16 26 M24 01
450 10 615 565 36 20 26 M24 01
500 10 670 620 38 20 26 M24 01
600 10 780 725 42 20 30 M27 01
700 10 895 840 38 24 30 M27 05
800 6 975 920 44 24 30 M27 05
900 6 1075 1020 48 24 30 M27 05
1000 6 1175 1120 52 28 30 M27 05
1200 6 1405 1340 60 32 33 M30 05
