System configuration examples, Compact converter and display unit on flow sensor – Xylem Magflux Electromagnetic Flow Meter User Manual
Page 33
33
Electromagnetic Flow Meter
FW: 842018/842009
5. System Configuration Examples

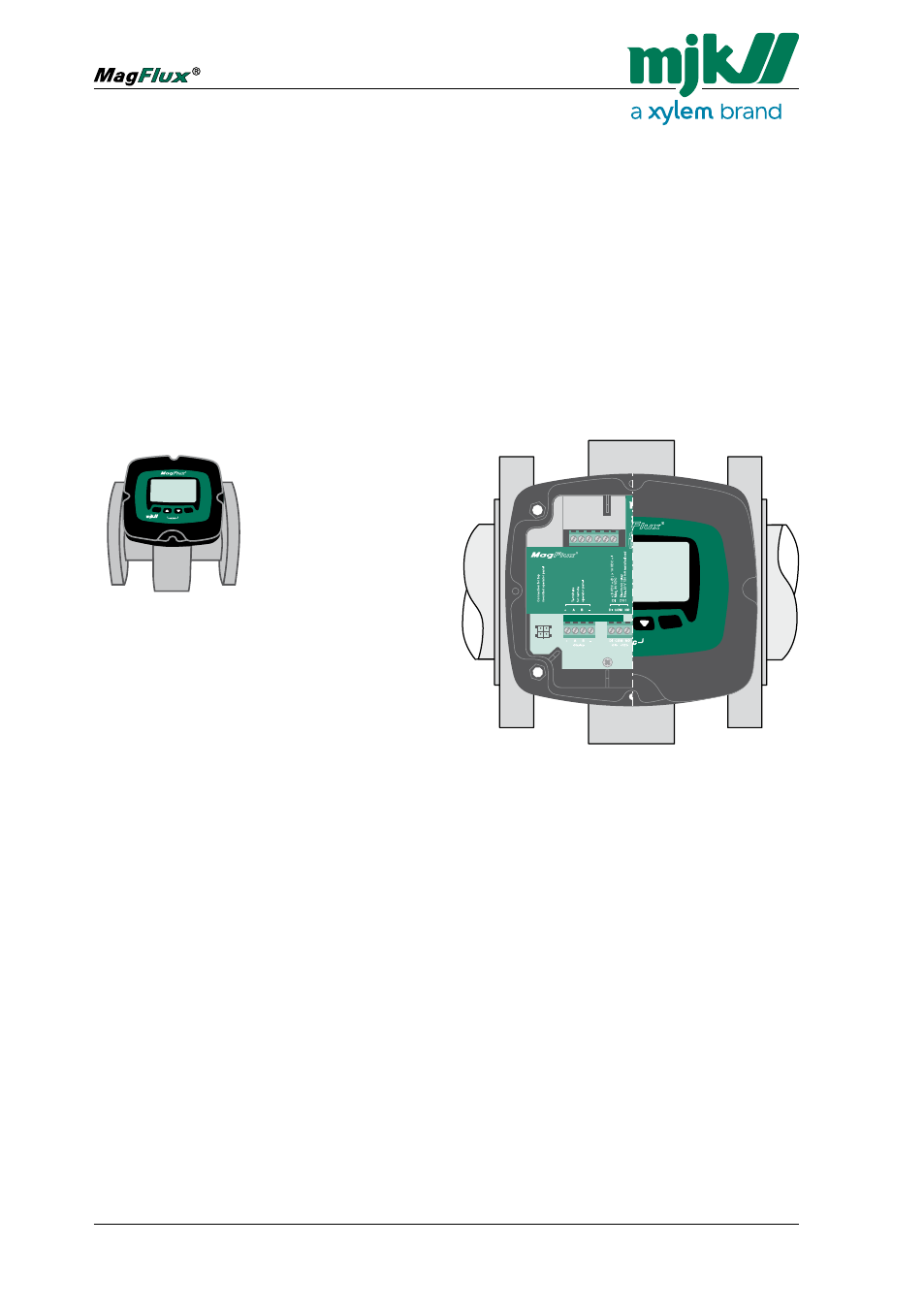

Compact Converter and Display Unit on Flow Sensor
Configuration: The MagFlux
®
Converter and Display Unit is mounted
directly on the MagFlux
®
Flow Sensor.
Order numbers for this configuration:
207xxx MagFlux
®
Flow Sensor
207920 MagFlux
®
Converter with Display Unit for sensor mounting
207920 consists of:
207940 Display Unit
807000 Converter PCB
800070 Field Cabinet
bottom part for sensor
mounting
