Electromagnetic Flow Meter

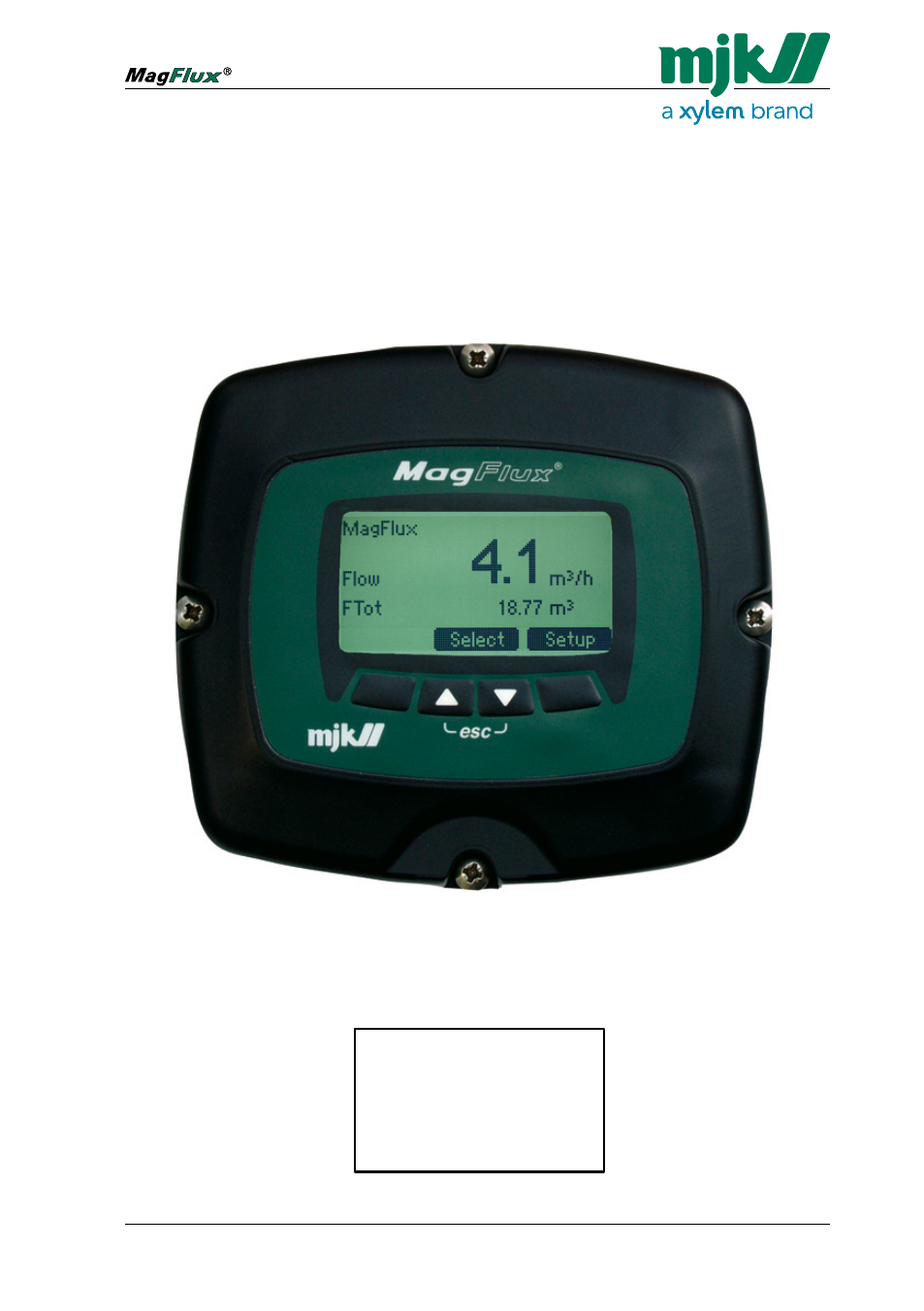

Display Read-out, one connected unit
All MagFlux ® display read-outs are illustrated and described in this manual.
Chapter 6. MagFlux Menus (on page 47 ) gives a detailed description of the
displays shown during setup, configuration and normal operation.
A 5-line LCD screen displays symbols and the actual status during setup,
configuration, servicing and normal operation (see also page
48 ).
Keyboard for reading and programming the MagFlux
The display shown above will in the remaining part of this manual be stylized
to appear like this:
MagFlux
Flow
4.1
m 3 /h
FTot 18.77 m 3
Select Setup
