14 EN 3.05 MagFlux Manual 1212
Electromagnetic Flow Meter
Product Identification
A delivery will usually consist of a MagFlux ® converter and a MagFlux ®
flow sensor. Check that the item(s) delivered corresponds to the ordered
item(s). The part number and the calibration code are printed on an iden-
tification label sticked onto the flow converter shipping box and on a label

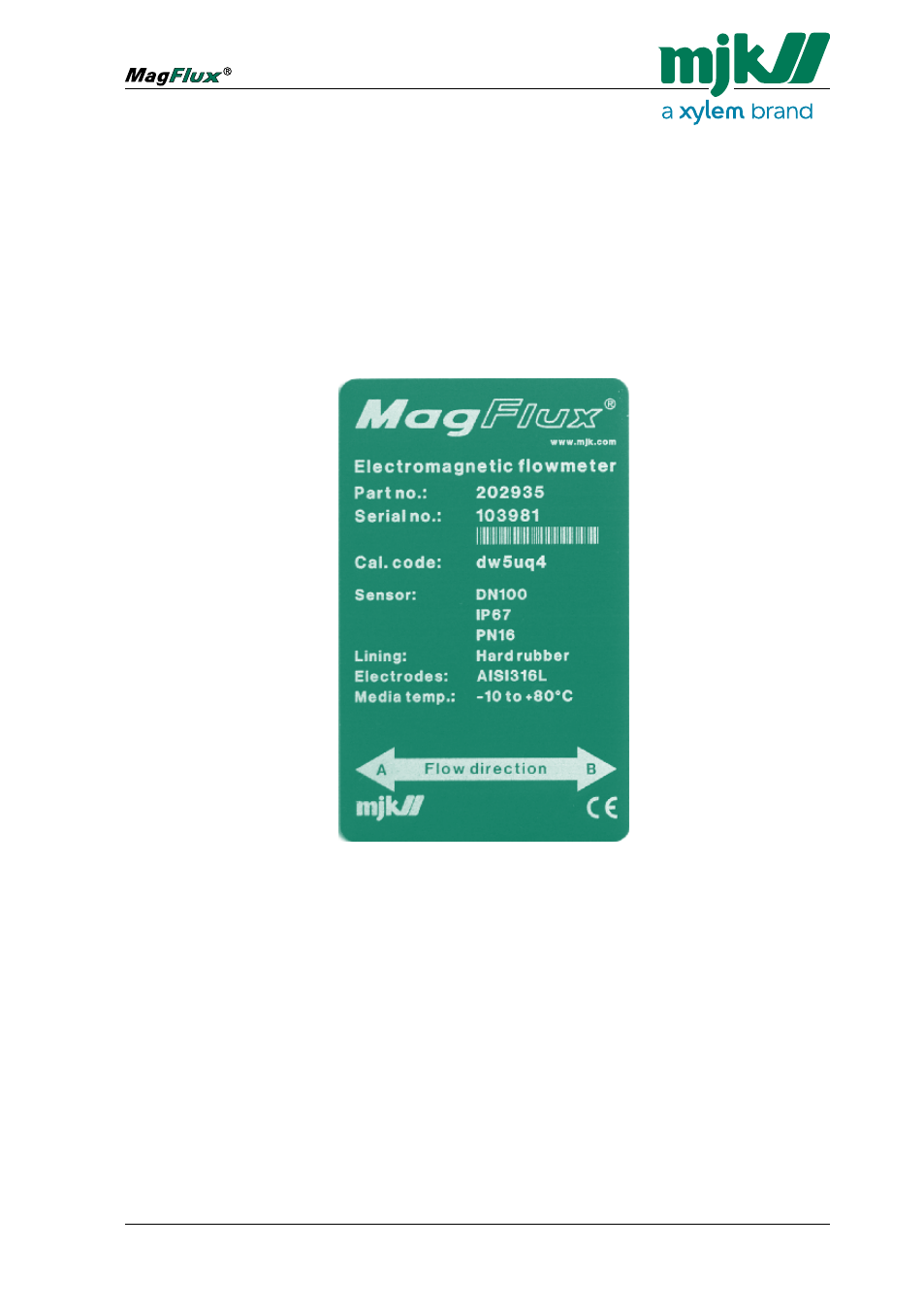

on the flow converter itself. The part number, the serial number, the cali-
bration code and the electrode/lining data for the flow sensor are printed
on a green name plate (see example below).
This calibration code (Cal. code) is unique and provides the MagFlux ®
converter with information about flow sensor number, nominal diameter of
the flow sensor and calibration data for the flow sensor.
The current converter firmware requires an 8-character input, but it also
accepts 6 characters plus two "Ok"s. The example above (dw5uq4) would
require that you enter: d w 5 u q 4 "Ok" "Ok", where "Ok" indicates that
you press the "Ok" key without selecting any character. Only small letters
can be entered from the MagFlux
® keypad.
If changes are needed to the unique sensor calibration code following
initial setup, this is the calibration code that the "Sensor Calibration Code"
menu must contain (see pages
44 and 86 ).
