Electromagnetic Flow Meter
FW: 842018/842009

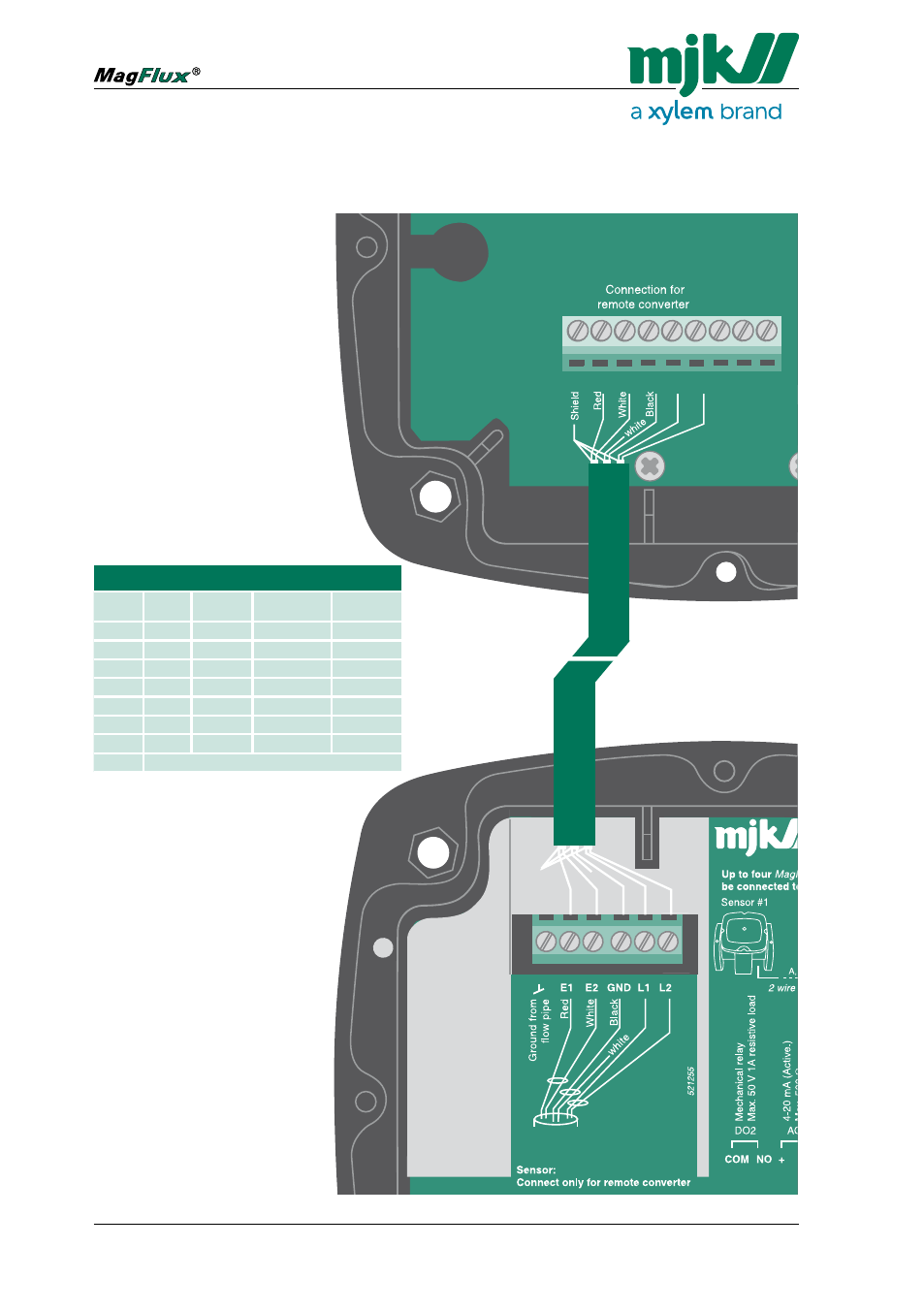

Wiring Schematic #1
for "Remote Converter with Connection Box on Flow Sensor" on the op-
posite page (page
34 ).
Flow Sensor
Connect one end of
the MJK cable to the
flow sensor as de-
scribed in the table
below. All 3 shields are
twisted and connected
in slot 1. The white
lead in pair no. 3 is not
used.
B Connection for remote converter
Terminal Signal Wire Colour before
March 2001
Colour from
March 2011
1 GND Shield - -
2 E1 Pair no. 1 Red Red
3 E2 Pair no. 1 White White
4 GND Pair no. 3 Black Black
- - Pair no. 3 White -
5 L1 Pair no. 2 Green Blue
6 L2 Pair no. 2 White Brown
7, 8, 9 not used
Remote Converter
(and Display Unit)
Connect the other end
of the MJK cable to
the remote converter
as shown to the right.
The "1 Shield" lead
goes into "Ground
from flow pipe", the
"2 Red" lead goes
into "E1 Red", the "3
White" lead into "E2
White", and so on.
A
B
207920
1 2 3 4 5 6 7 8 9
1 2 3 4 5 6 7 8 9
Blue
Br
own
Blue
Br
own
