Cabinet mounted on the flow sensor – Xylem Magflux Electromagnetic Flow Meter User Manual
Page 22
22
EN 3.05 MagFlux Manual 1212
Electromagnetic Flow Meter

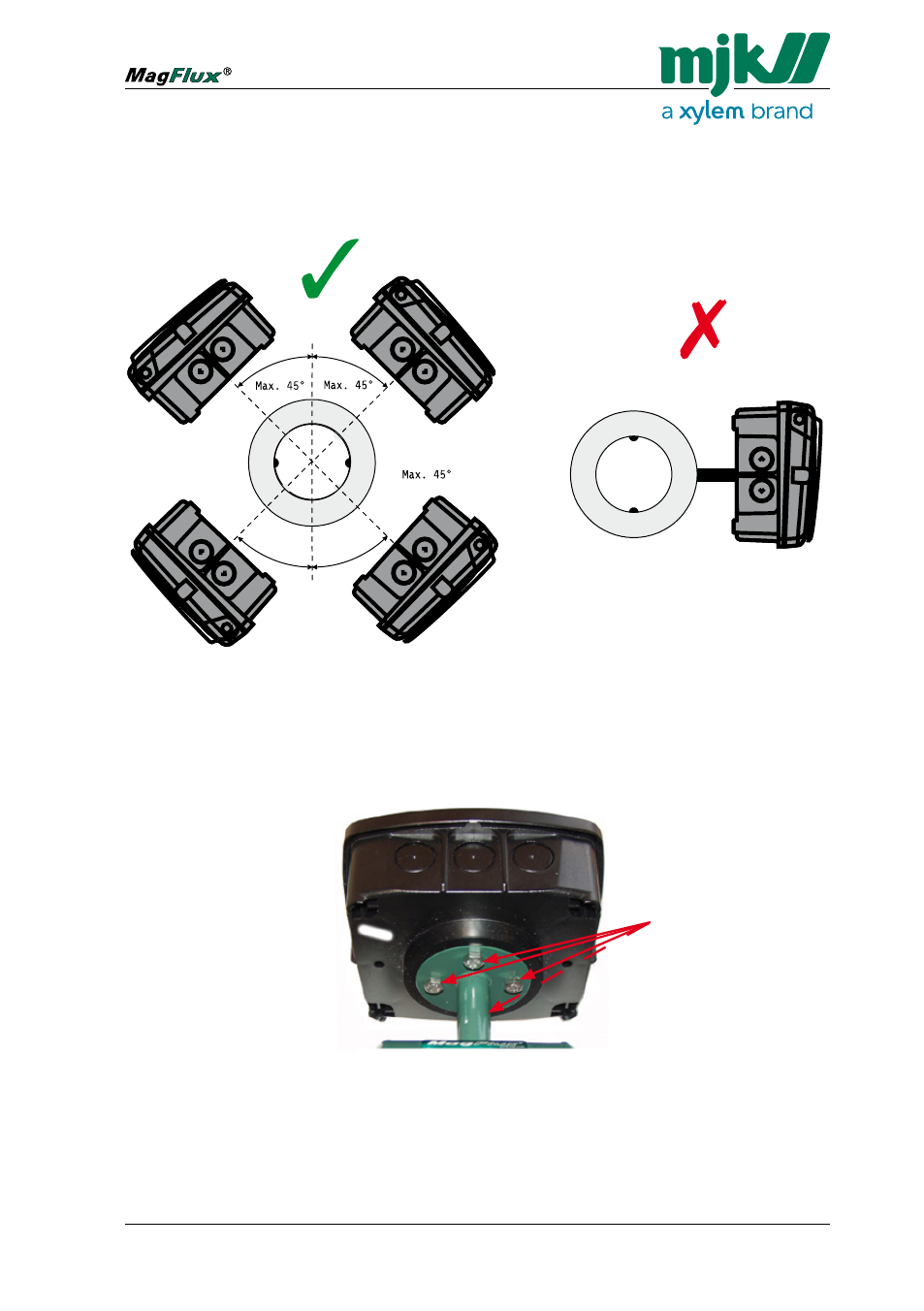

7. When mounting horizontally the flow sensor can be rotated max. +/- 45°
seen from the connection end. If the flow sensor is rotated more than
45°, one of the electrodes may not be in full contact with the liquid.
Cabinet Mounted on the Flow Sensor
The cabinet is mounted on the flow sensor with four pcs. 6x12 hex cap
screws.
