Electromagnetic Flow Meter
FW: 842018/842009

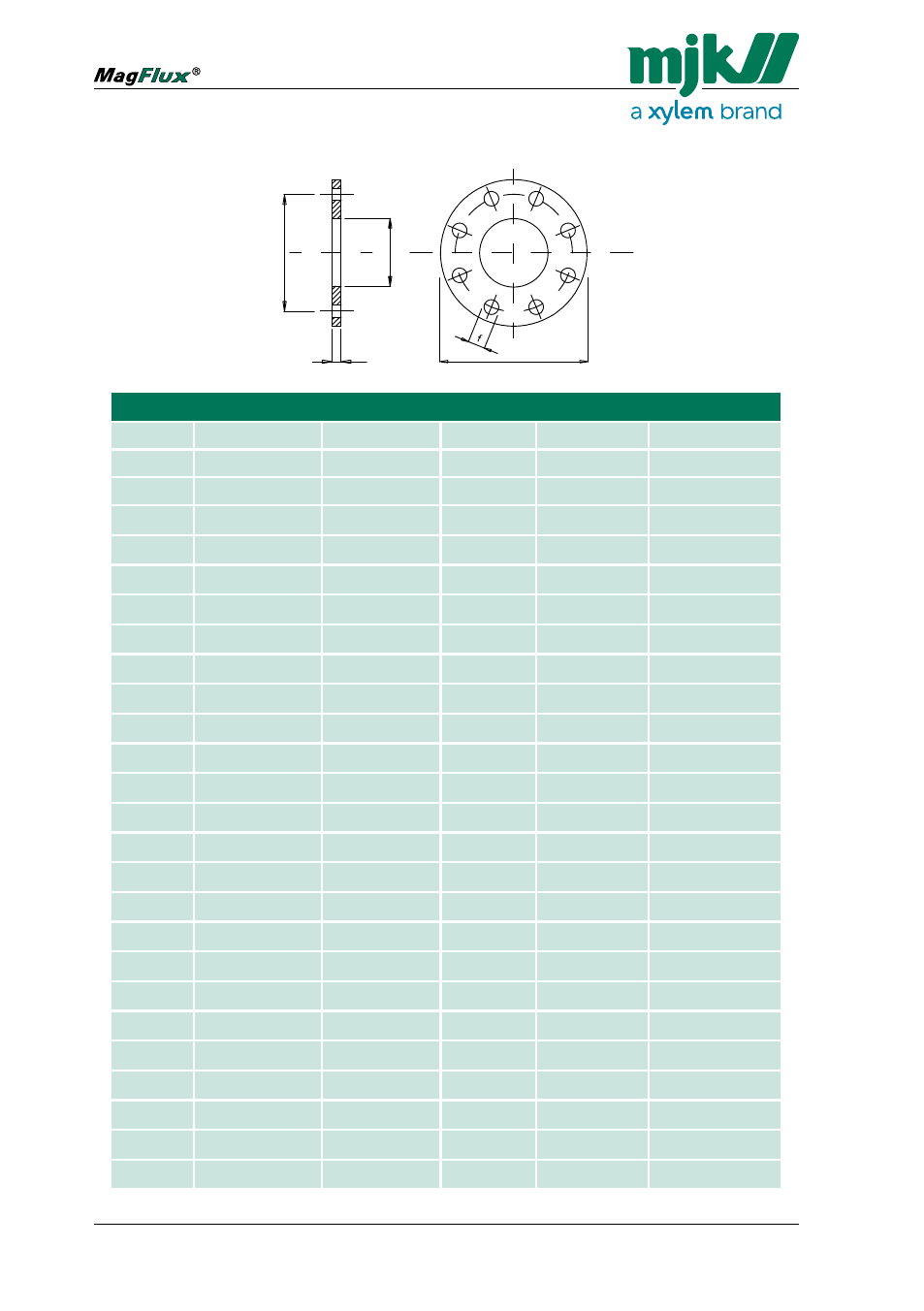

Standard Flanges - AS-4087-2004 - Australia
a DN
b D
Flange Dimensions - PN 16 - AS-4087-2004
Size D a b f
DN Outer diameter Bolt diameter Thickness No. of holes Hole diameter
[mm] [mm] [mm] [mm] [mm]
15 95 67 6 4 14
20 100 73 6 4 14
25 115 83 8 4 14
32 120 87 8 4 14
40 135 98 10 4 14
50 150 114 10 4 18
65 165 127 11 4 18
80 185 146 11 4 18
100 215 178 13 4 18
150 280 235 19 8 18
200 335 292 19 8 18
250 405 356 23 8 22
300 455 406 30 12 22
350 525 470 30 12 26
400 580 521 30 12 26
450 640 584 30 12 26
500 705 641 38 16 26
600 825 756 48 16 30
700 910 845 56 20 30
800 1060 984 56 20 36
900 1175 1092 66 24 36
1000 1255 1175 66 24 36
1200 1490 1410 76 32 36
