Xylem Magflux Electromagnetic Flow Meter User Manual
Page 28
28
EN 3.05 MagFlux Manual 1212
Electromagnetic Flow Meter

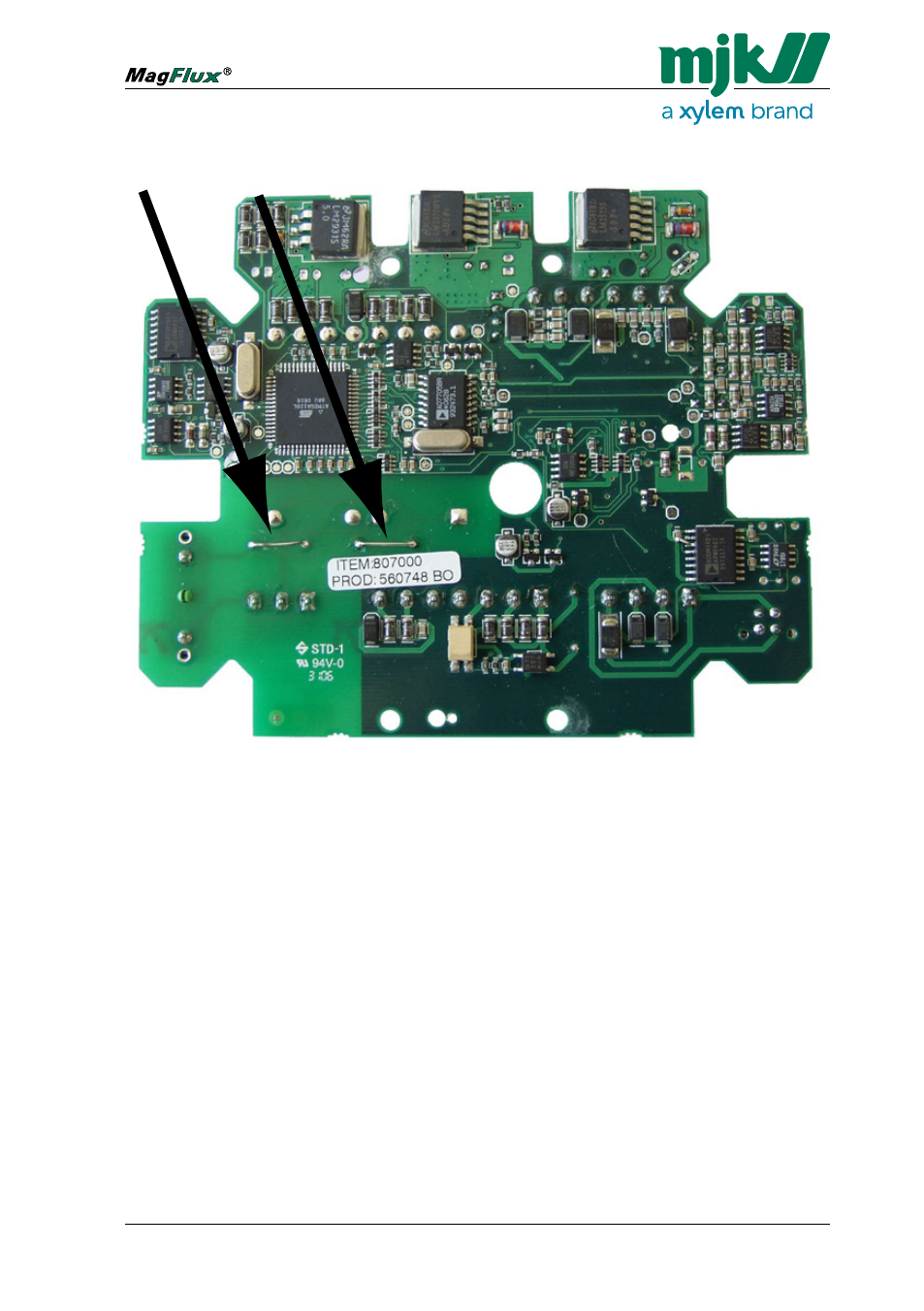

7. Look at the following picture to see where two new jumpers must be
inserted (115 V AC configuration):
8. Insert and solder 2 jumpers (wires) in the positions indicated by the ar-
rows.
9. Turn around the PCB and replace the 63 mAT fuse on the right side
with a 125 mAT fuse ( or vice versa going from 115 VAC to 230 VAC).
10. Re-insert the PCB and re-assemble the flow meter (see also steps 4, 3,
2 and 1).
