Electromagnetic Flow Meter
FW: 842018/842009
Graph Display

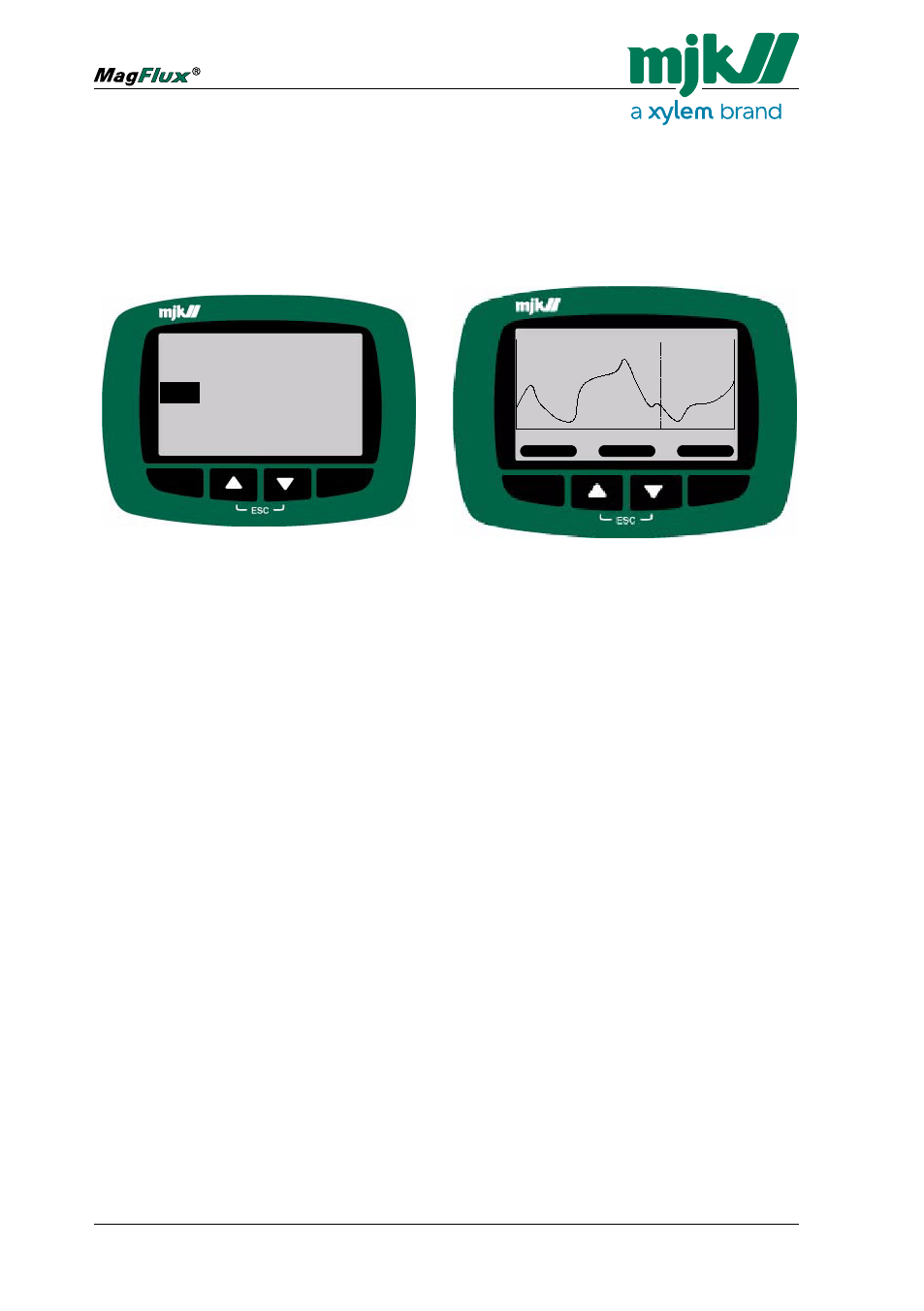

The content of the Data Logger can displayed on the Display Unit by
pressing the up/down keys simultaneously (esc), highlighting "Flow" and
selecting "Graph"
10.000M3/H
2006-08-21 16:09:42 3.039M3/H
<< >> < >
Inlet flow
flow
32,5
m3/h
cnt 1 312535 m3
Select Graph
10.000M3/H
2006-08-21 16:09:42 3.039M3/H
<< >> < >
Innlet flow
flow
32,5
m3/h
cnt 1 312535 m3
Select Graph
The Display Unit then shows the Graph screen. To return to the Main
Menu display screen, select "esc" by pressing the up/down keys simulta-
neously.
The Y axis is automatically scaled according to the Q
max
of the mA output.
Double-arrow keys jump forward and backward one screen frame at a
time. Single-arrow keys move the cursor forward and backward on the
screen.
The actual values at the cursor position is shown at the bottom of the
screen.
