Test sequences – GE Industrial Solutions Millennium II Controller J85501P-1 User Manual
Page 59
Basic Installation and User’s Guide for the Millennium II Controller
Issue 3 January 2008
59
Test Sequences

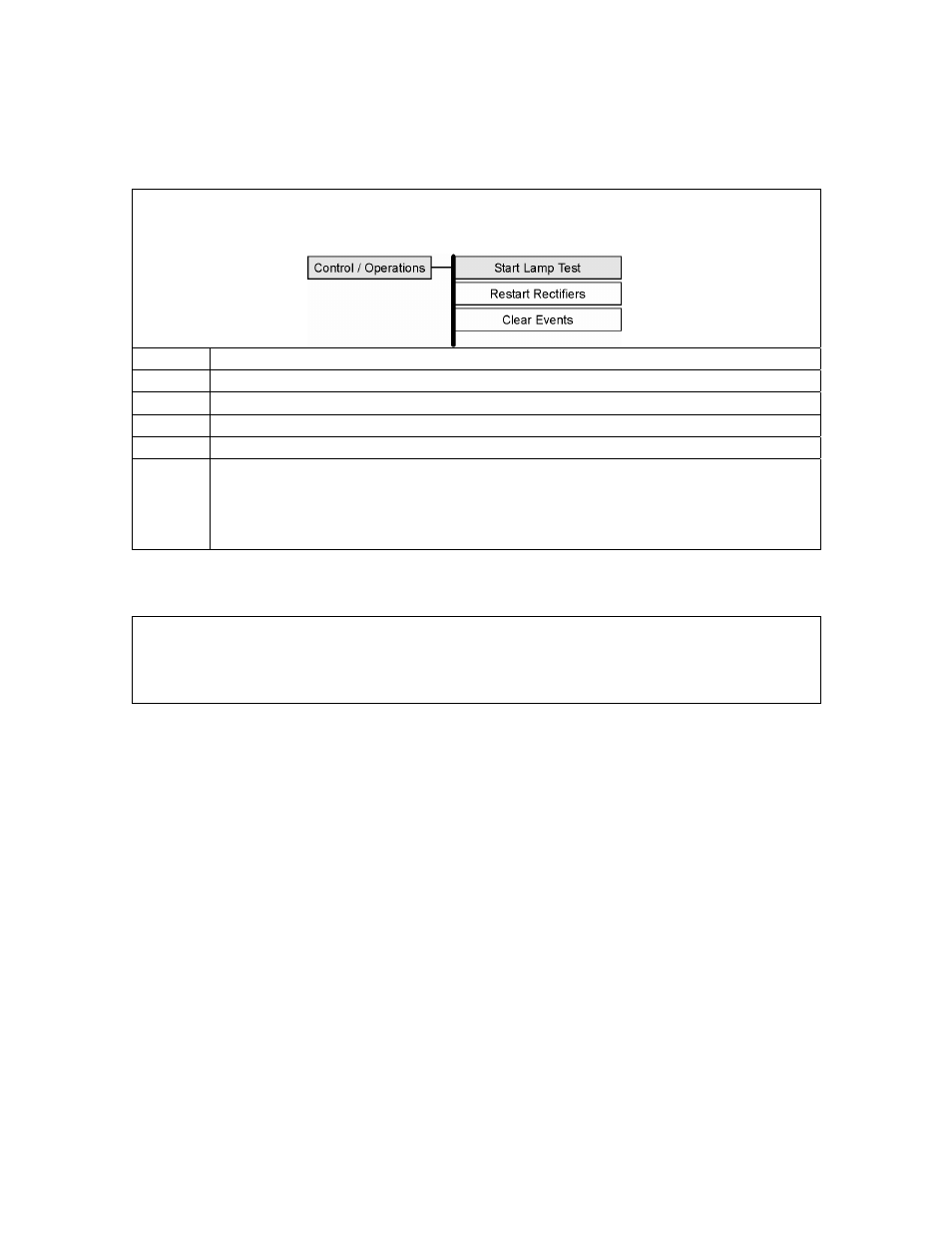

Lamp Test
This test verifies that All of the LEDs on the front panel of the controller are functioning
properly. No alarms are generated from this test.
Step Action
1.
From the Default Screen, press the Menu button for the Main Menu.
2.
Using the Up/Down Arrows, Scroll to Control/Operations and press Enter.
3. Select
Start Lamp Test, and press Enter.
4. Press
Enter again to start the test, or Escape to return to the menus.
5. Observations:
• LCD Refreshes
• Front Panel LEDs ALL turn on momentarily and return to normal
• NO alarms are generated from this test
Front Panel Display Meter Calibration
Using a calibrated digital voltmeter, measure the plant voltage from the front panel test
jacks. Follow these steps to calibrate the front panel meter display for Voltage and
Current readings:
