Integrator’s Guide 8
1.1.1.1 Configuration
User must set the parameters for each PLC Input from the PLC Input screen (Main Menu, User
Settings, Control).

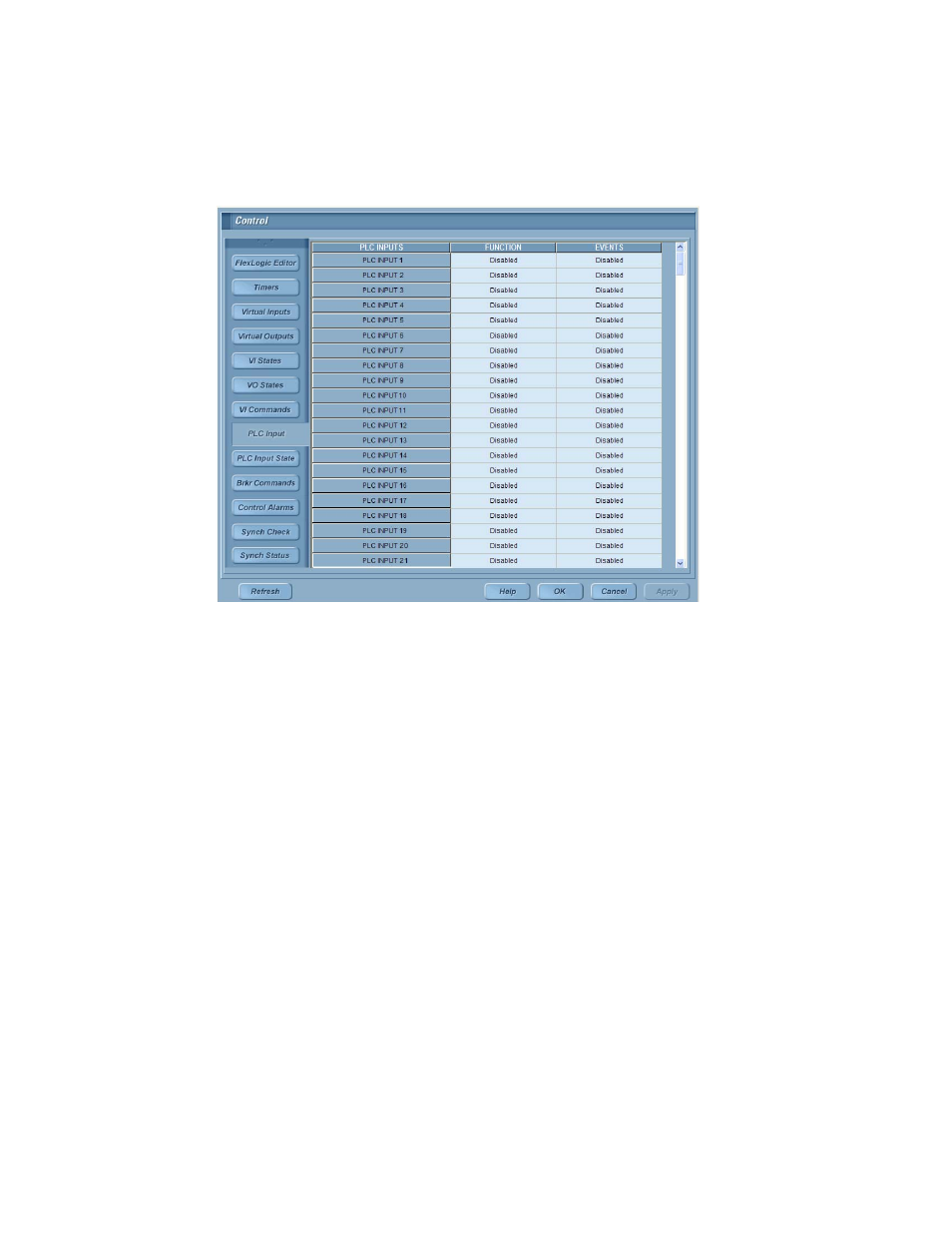

Figure 1-1 PLC Input configuration screen
Function: Controls whether the input is either enabled or disabled. When input is disabled,
FlexLogic always reads its state as low. If input is enabled, FlexLogic reads the state from
corresponding Modbus register.
Events: When enabled, if there is transition of state, an event corresponding to the direction of
the transition will be logged.
