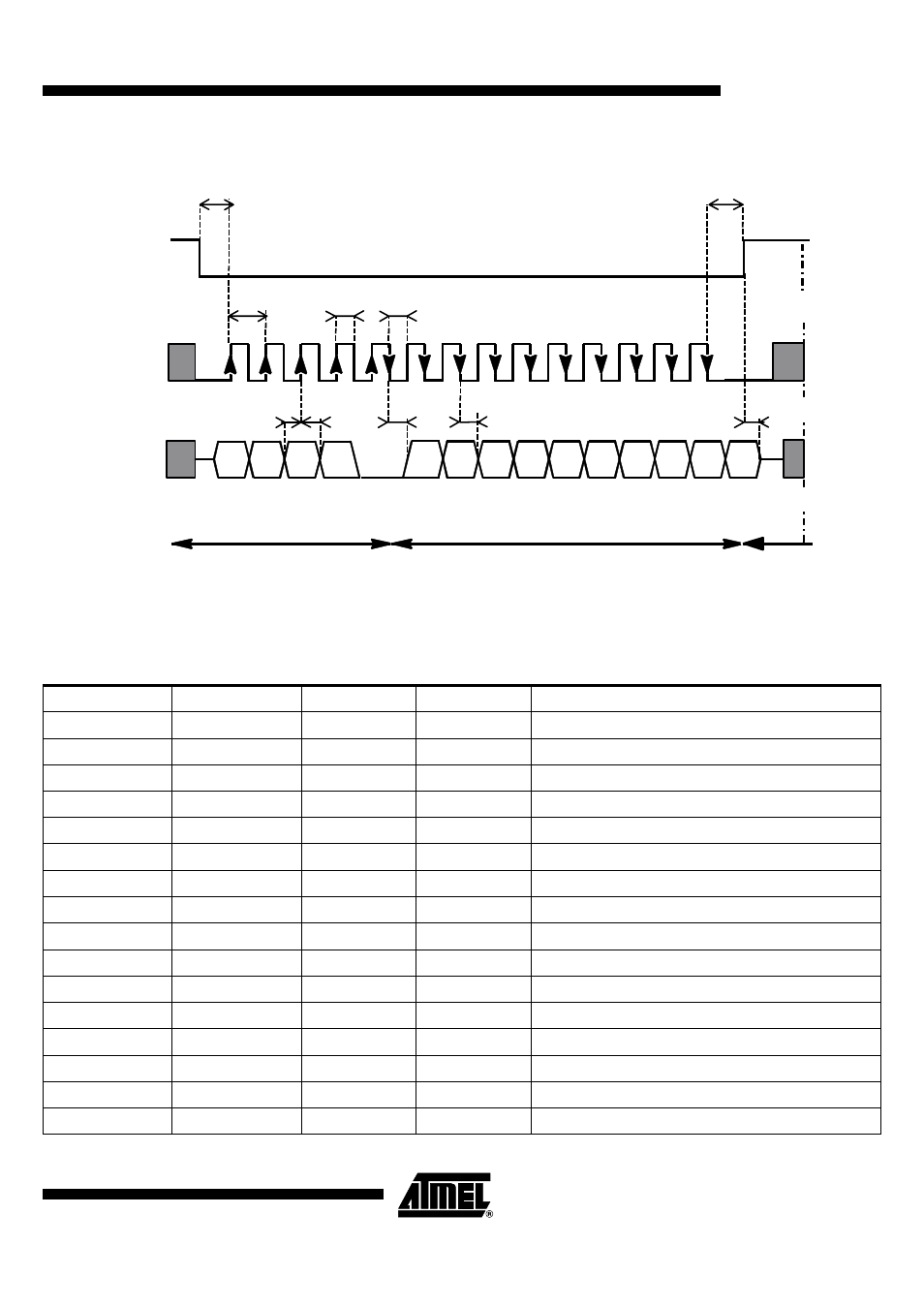

Figure 33. Chronogram with Timing
Note:
For the timing specification, please refer to the timing table “Digital CMOS DC Characteristics” on page 42.
Registers
Note:
All the registers must be reprogrammed after the voltage supply has been removed, otherwise they will be in the default state
A[0]
A[1]
A[2]
A[3]
R/W
SCK
SDATA
SLE
D[9 ]
D[8]
D[7]
D[6]
D[5]
D[4]
D[3]
D[2]
D[1]
D[0]
INPUT
OUTPUT
INPUT
SDATA
direction
tdle
T
tw
thd
tsd
tpzon
tpd
tpzd
tdle
tw
Table 4. Registers Overview
Name
Address A[3:0]
Nbits
Read-Write
Comments
F0
(0000)
2
32
R-W
F0 Frequency Code
F1
(0001)
2
32
R-W
F1 Frequency Code
F2
(0010)
2
32
R-W
F2 Frequency Code
F3
(0011)
2
32
R-W
F3 Frequency Code
CTRL1
(0100)
2
32
R-W
Main Control Register
STAT
(0101)
2
31
R
Status Register
DTR
(0110)
2
6
R-W
Data Slicer Reference/Discriminator offset adjusting
WUC
(0111)
2
32
R-W
Wake-up Control Register
WUR
(1000)
2
18
R-W
Wake-up Data Rate Register
WUA
(1001)
2
25
R-W
Wake-up Address Register
WUD
(1010)
2
32
R
Wake-up Data Register
RESET
(1011)
2
1
W
Reset
-
(1100)
2
Reserved
-
(1101)
2
Reserved
-
(1110)
2
Reserved
CTRL2
(1111)
2
32
R-W
Control Register (Lock Detect - Clock Recovery)
