Typical Key Fob Application, 2 Batteries

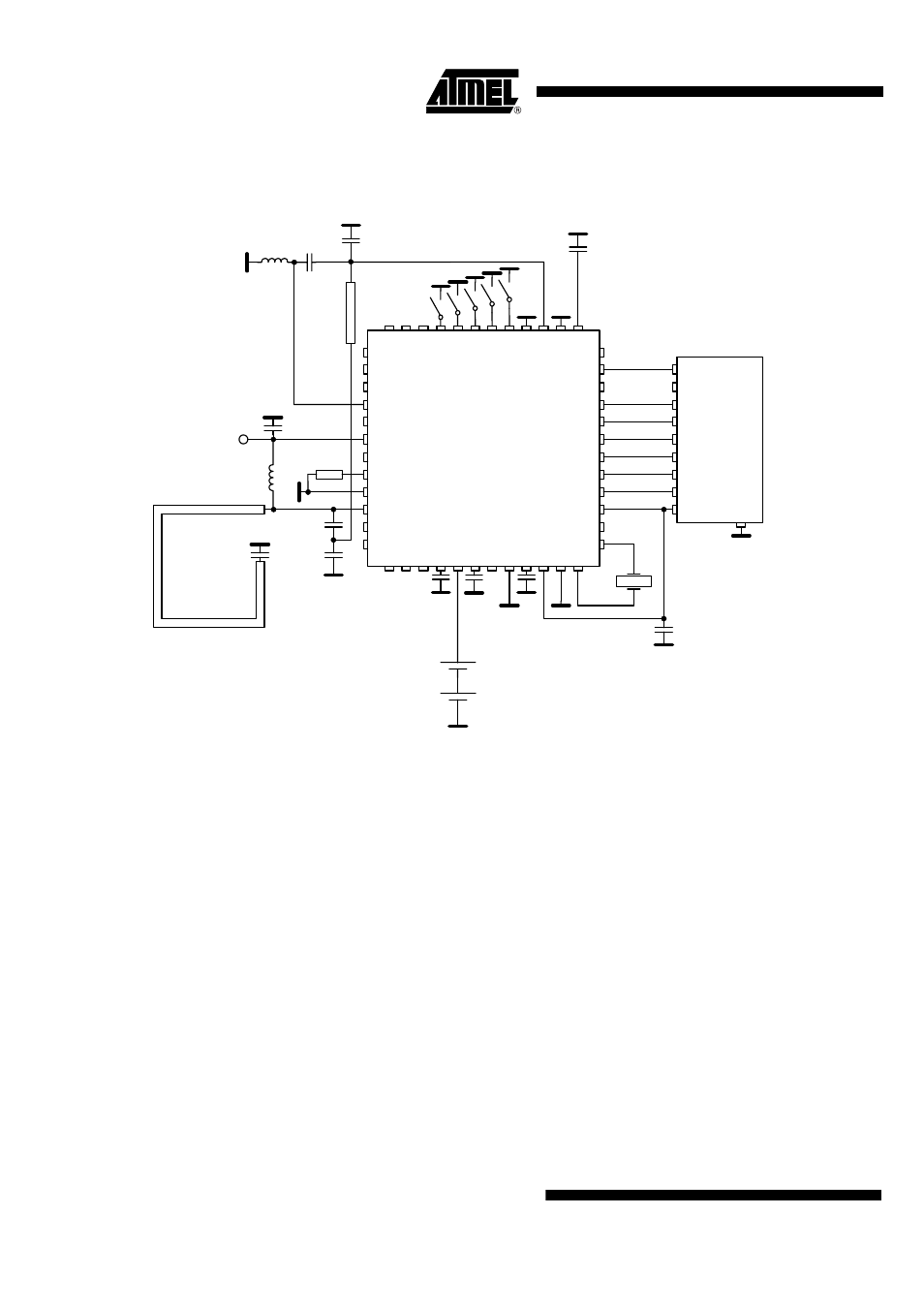

Figure 6. Typical RKE Key Fob Application, 433.92 MHz, 2 Batteries
Figure 6 shows a typical 433.92 MHz 2-battery RKE key fob or sensor application. The
external components are 11 capacitors, 1 resistor, 2 inductors and a crystal. C
1
and C
4
are 68 nF voltage supply blocking capacitors. C
2
and C
3
are 2.2 µF supply blocking
capacitors for the internal voltage regulators. C
5
is a 10 nF supply blocking capacitor. C
6
is a 15 nF fixed capacitor used for the internal quasi peak detector and for the highpass
frequency of the data filter. C
7
to C
11
are RF matching capacitors in the range of 1 pF to
33 pF. L
1
is a matching inductor of about 5.6 nH to 56 nH. L
2
is a feed inductor of about
120 nH. A load capacitor for the crystal of 9 pF is integrated. R
1
is typically 22 k
Ω
and
sets the output power to about 5.5 dBm.
