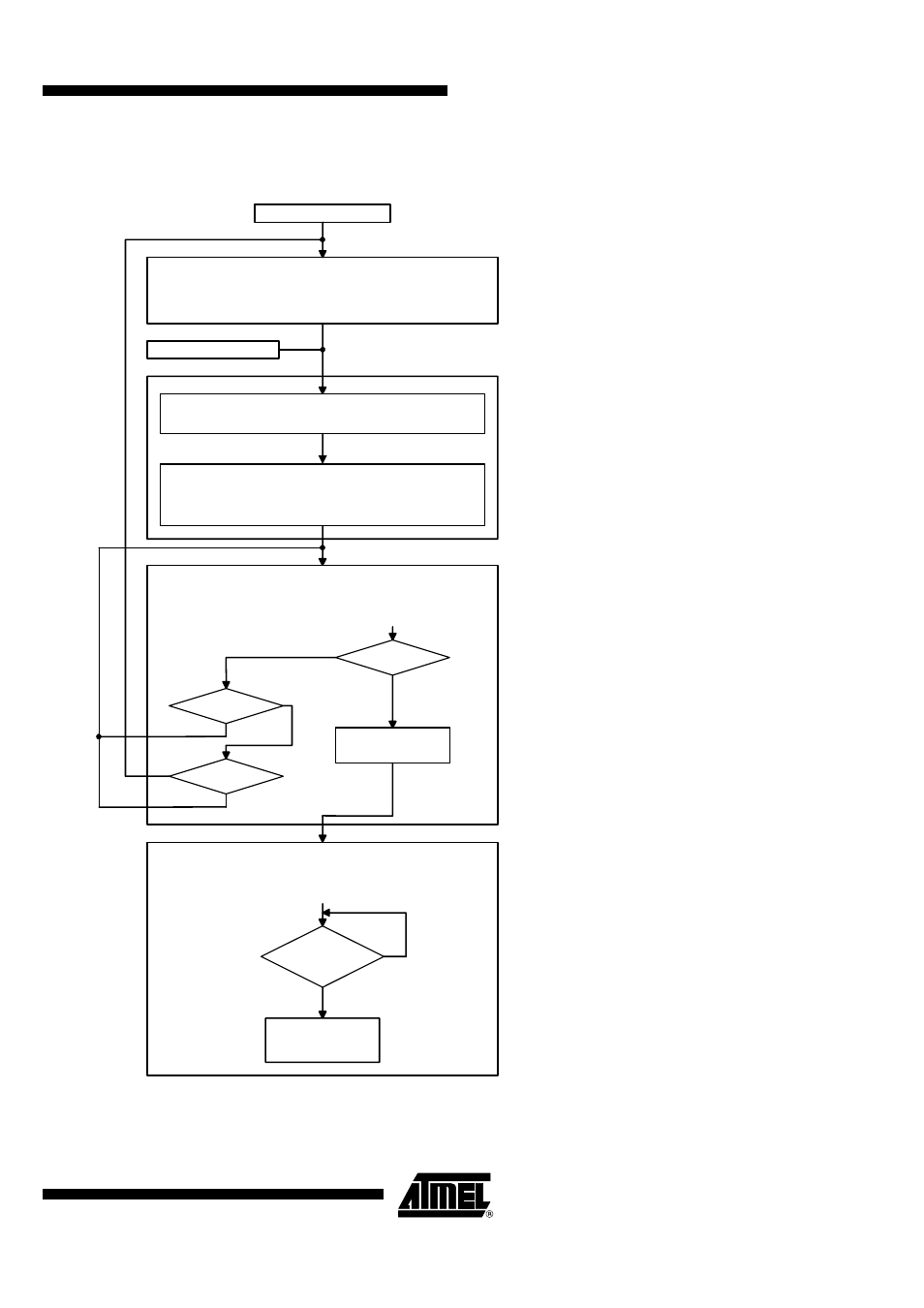

Figure 41. Flow Chart Polling Mode/RX Mode (T_MODE = 1, Transparent Mode Active)
Sleep mode:
All circuits for analog signal processing are disabled. Only XTO and Polling logic
is enabled.
Output level on pin RX_ACTIVE -> Low; I
S
= I
IDLE_X
T
Sleep
= Sleep Ч 1024 Ч T
DCLK
× X
Sleep
Start-up signal processing:
The signal processing circuit are enabled.
Output level on pin RX_ACTIVE -> High; I
S
= I
RX_X
T
Startup_Sig_Proc
Bit-check mode:
The incomming data stream is analyzed. If the timing indicates a valid transmitter
signal, the control bits VSOUT_EN, CLK_ON and OPM0 are set to 1 and the
transceiver is set to receiving mode. Otherwise the transceiver is set to Sleep
mode (if OPM0 = 0 and T
SLEEP
> 0) or stays in Bit-check mode.
Output level on Pin RX_ACTIVE -> High
I
S
= I
RX_X
T
Bit-check
Receiving mode:
The incomming data stream is passed via pin SDO_TMDO to the connected
microcontroller. If an bit error occurs the transceiver is not set back to Start-up
mode.
Output level on Pin RX_ACTIVE -> High
I
S
= I
RX_X
Start-up PLL:
The PLL is enabled and locked.
Output level on pin RX_ACTIVE -> High; I
S
= I
Startup_PLL_X
;T
Startup_PLL
Start-up mode:
OPM0 = 1
?
Bit check
OK ?
YES
NO
NO
YES
Set VSOUT_EN = 1
Set CLK_ON = 1
Set OPM0 = 1
Sleep: Defined by bits Sleep0 to Sleep4 in Control
Register 4
X
Sleep
: Defined by bit XSleep in Control Register 4
T
DCLK
: Basic clock cycle
T
Startup_PLL
: 798.5 × T
DCLK
(typ)
T
Startup_Sig_Proc
: 882 × T
DCLK
(BR_Range 0)
498 × T
DCLK
(BR_Range 1)
306 × T
DCLK
(BR_Range 2)
210 × T
DCLK
(BR_Range 3)
Is defined by the selected baud rate range and
T
DCLK
. The baud-rate range is defined by bit
Baud0 and Baud1 in Control Register 6.
T
Bit-check
: Depends on the result of the bit check.
If the bit check is ok, T
Bit-check
depends on the
number of bits to be checked (N
Bit-check
) and
on the utilized data rate.
If the bit check fails, the average time period for
that check depends on the selected baud-rate
range and on T
XDCLK
. The baud-rate range is
defined by bit Baud0 and Baud1 in Control
Register 6.
Start RX Polling Mode
Start RX Mode
Level on pin CS = Low ?
YES
NO
RX data stream
available on pin
SDO_TMDO
T
SLEEP
= 0
?
NO
YES
If in FSK mode the datastream is interrupted the
FSK-Demodulator-PLL tends to lock out and is
further not able to lock in, even there is a valid
data stream available.
In this case the transceiver must be set back to
IDLE mode.
