Typical Car or Sensor Base-station Application

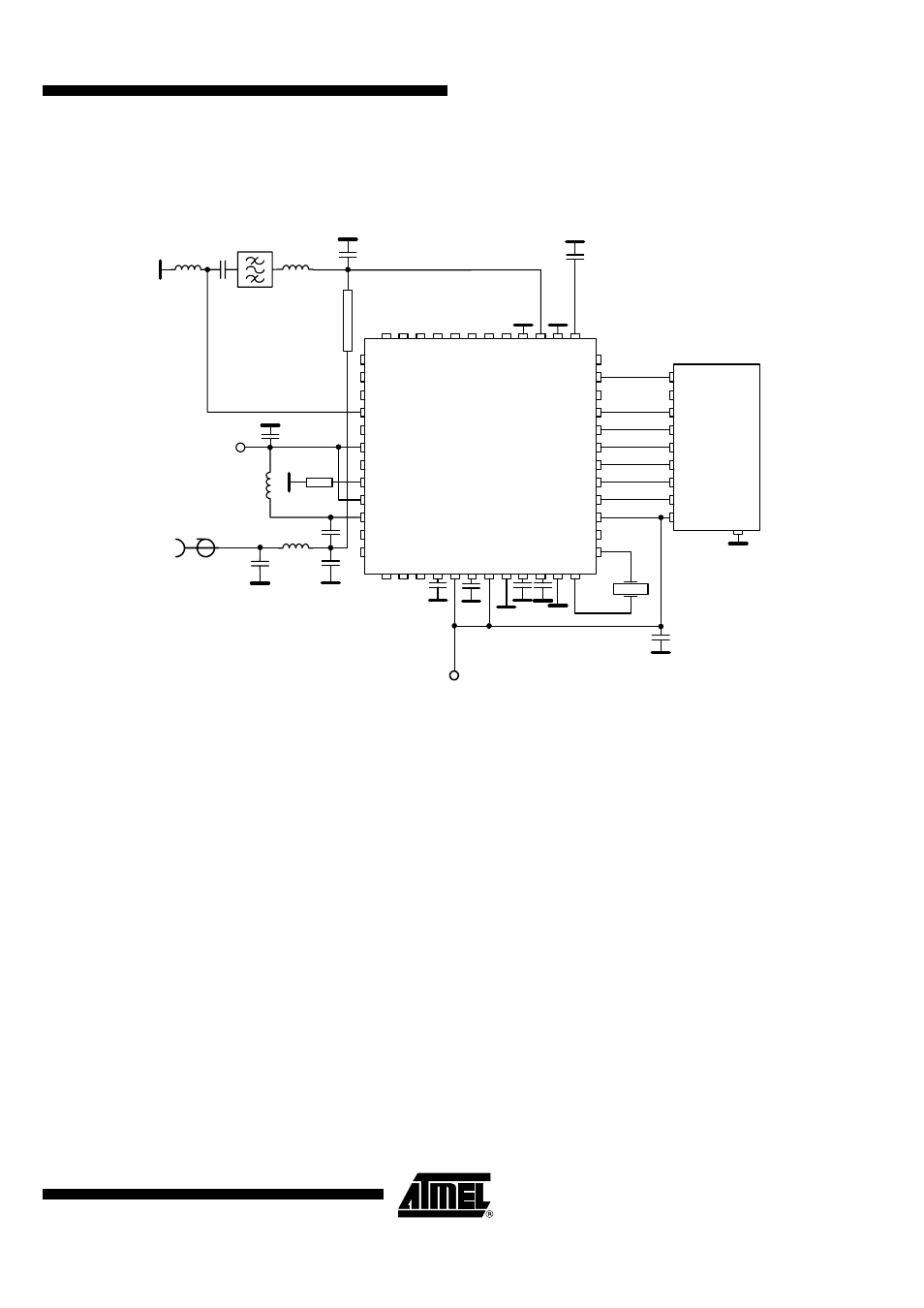

Figure 5. Typical RKE Car or Sensor Base-station Application, 433.92 MHz
Figure 5 shows a typical 433.92 MHz V
CC
= 4.75 V to 5.25 V RKE car or sensor base-
station application. The external components are 12 capacitors, 1 resistor, 4 inductors, a
SAW filter and a crystal. C
1
and C
3
to C
4
are 68 nF voltage supply blocking capacitors.
C
2
and C
12
are 2.2 µF supply blocking capacitors for the internal voltage regulators. C
5
is a 10 nF supply blocking capacitor. C
6
is a 15 nF fixed capacitor used for the internal
quasi peak detector and for the highpass frequency of the data filter. C
7
to C
11
are RF
matching capacitors in the range of 1 pF to 33 pF. L
2
to L
4
are matching inductors of
about 5.6 nH to 56 nH. A load capacitor for the crystal of 9 pF is integrated. R
1
is typi-
cally 22 k
Ω
and sets the output power at RF_OUT to about 10 dBm. Since a quarter
wave or PCB antenna, which has high efficiency and wide band operation, is typically
used here, it is recommended to use a SAW filter to achieve high sensitivity in case of
powerful out-of-band blockers. L
1
, C
10
and C
9
together form a lowpass filter, which is
needed to filter out the harmonics in the transmitted signal to meet regulations. An inter-
nally regulated voltage at pin VSOUT can be used in case the microcontroller only
supports 3.3
V operation, a blocking capacitor with a value of C
12
= 2.2 µF has to be
connected to VSOUT in any case.
