71M6542F Using 71M6x01 and Current Shunts

Figure 38

shows a typical two-phase connection for the 71M6542F using one isolated and one non-isolated

sensor. For best performance, the IAP-IAN current sensor input is configured for differential mode (i.e.,
DIFFA_E = 1, I/O RAM 0x210C[4]). The 71M6x01 Isolated Sensor Interface is used to isolate phase B. The
outputs of the 71M6x01 Isolated Sensor Interface are routed through a pulse transformer, which is
connected to the pins IBP-IBN. The IBP-IBN pins must be configured for remote sensor communication
(i.e., RMT_E =1, I/O RAM 0x2709[3]). See

Figure 5

for the AFE configuration corresponding to

Figure

38

.


MPU

RTC

TIMERS

IAP

VA

IBP

XIN

XOUT

RX

TX

TX

RX

COM0...5

V3P3A V3P3SYS

VBAT

VBAT_RTC

SEG

GNDA GNDD

SEG/DIO

DIO

ICE

PHASE A

NEUTRAL

LOAD

8888.8888

PULSES,

DIO

IR

AMR

POWER FAULT
COMPARATOR

MODUL-

ATOR

SERIAL PORTS

OSCILLATOR/

PLL

MUX and ADC

LCD DRIVER

DIO, PULSES

COMPUTE

ENGINE

FLASH

MEMORY

RAM

32 kHz

REGULATOR

Shunt

POWER SUPPLY

TERIDIAN

71M6542F

TEMPERATURE

SENSOR

VREF

BATTERY

PWR MODE

CONTROL

WAKE-UP

PHASE A

I

2

C or µWire

EEPROM

IAN

IBN

RTC
BATTERY

V3P3D

BATTERY
MONITOR

SPI INTERFACE

HOST

LCD DISPLAY

Resistor Dividers

Pulse

Trans-
former

TERIDIAN

71M6XX1

PHASE B

LOAD

VB

NEUTRAL

PHASE A

Shunt

Note:
This system is referenced to PHASE A

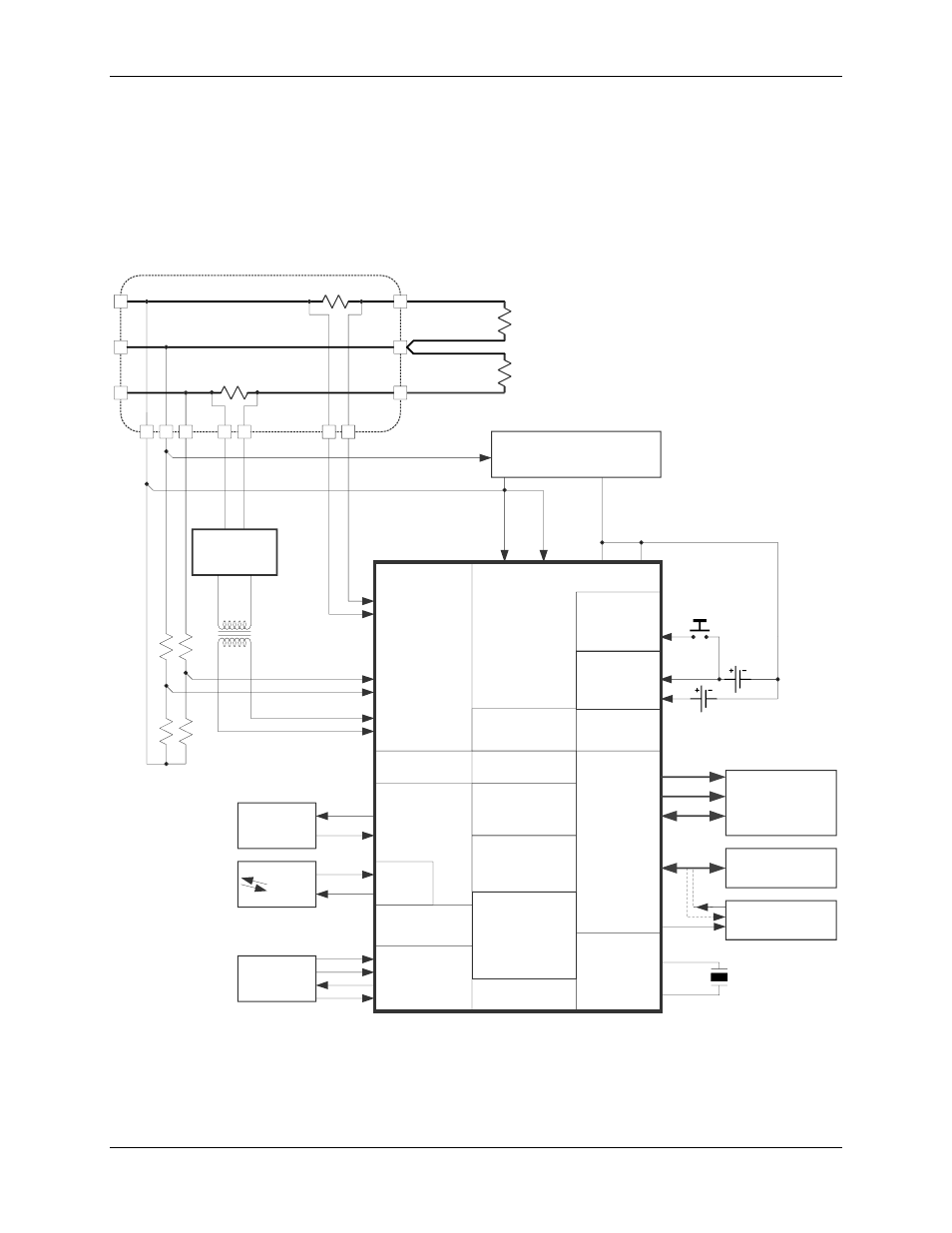

Figure 38: 71M6542F with 71M6x01 Isolated Sensor
