30 © 2008–2011 Teridian Semiconductor Corporation v1.1
MUX STATE
CK32
(32768 Hz)
0 1 2
MUX_DIV[3:0] = 3 Conversions
Settle
Multiplexer Frame (13 x 30.518 µs = 396.7 µs -> 2520.6 Hz)
S S
IA
VA
IB
30.5
µs
122.07 µs
122.07 µs 122.07 µs

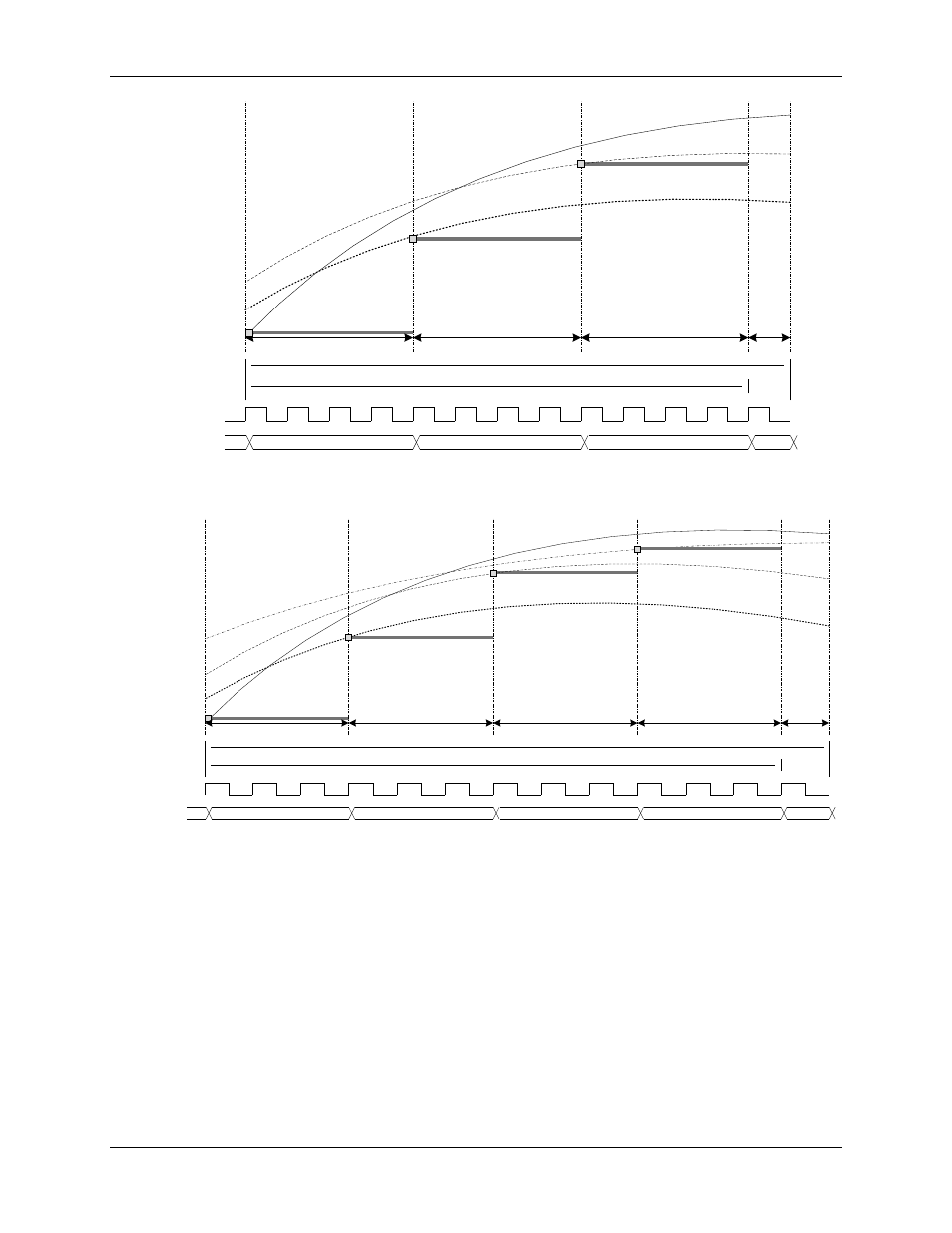

Figure 14: Samples from Multiplexer Cycle (MUX_DIV[3:0] = 3)
MUX STATE
CK32
(32768 Hz)
0 3 1 2
MUX_DIV[3:0] = 4 Conversions
Settle
Multiplexer Frame (13 x 30.518 µs = 396 µs à2520Hz)
S S
IA
VA
IB
30.5 µs
91.5 µs
91.5 µs 91.5 µs 91.5 µs
VB
Figure 15: Samples from Multiplexer Cycle (MUX_DIV[3:0] = 4)
