transformers (CTs) and their corresponding signal conditioning circuits can be characterized and their
correction factors can be programmed to produce electricity meters with exceptional accuracy over the
industrial temperature range.
One of the two internal UARTs is adapted to support an Infrared LED with internal drive and sense configuration
and can also function as a standard UART. The optical output can be modulated at 38 kHz. This flexibility
makes it possible to implement AMR meters with an IR interface. A block diagram of the IC is shown in
2.2
Analog Front End (AFE)
The AFE functions as a data acquisition system, controlled by the MPU. When used with locally
connected sensors, as seen in
, the analog input signals (IAP-IAN, VA and IBP-IBN) are
multiplexed to the ADC input and sampled by the ADC. The ADC output is decimated by the FIR filter
and stored in CE RAM where it can be accessed and processed by the CE.
See
for the multiplexer sequence corresponding to
configuration corresponding to
∆Σ ADC
CONVERTER
VREF
MUX
VREF
VREF
VADC
22
FIR
IBP
IAP
VADC10 (VA)
IAN
IBN
71M6541D/F
CE RAM
*IN = Optional Neutral Current
Local
Shunt
IN*
CT
I
LINE
or
CT
11/5/2010
I
LINE

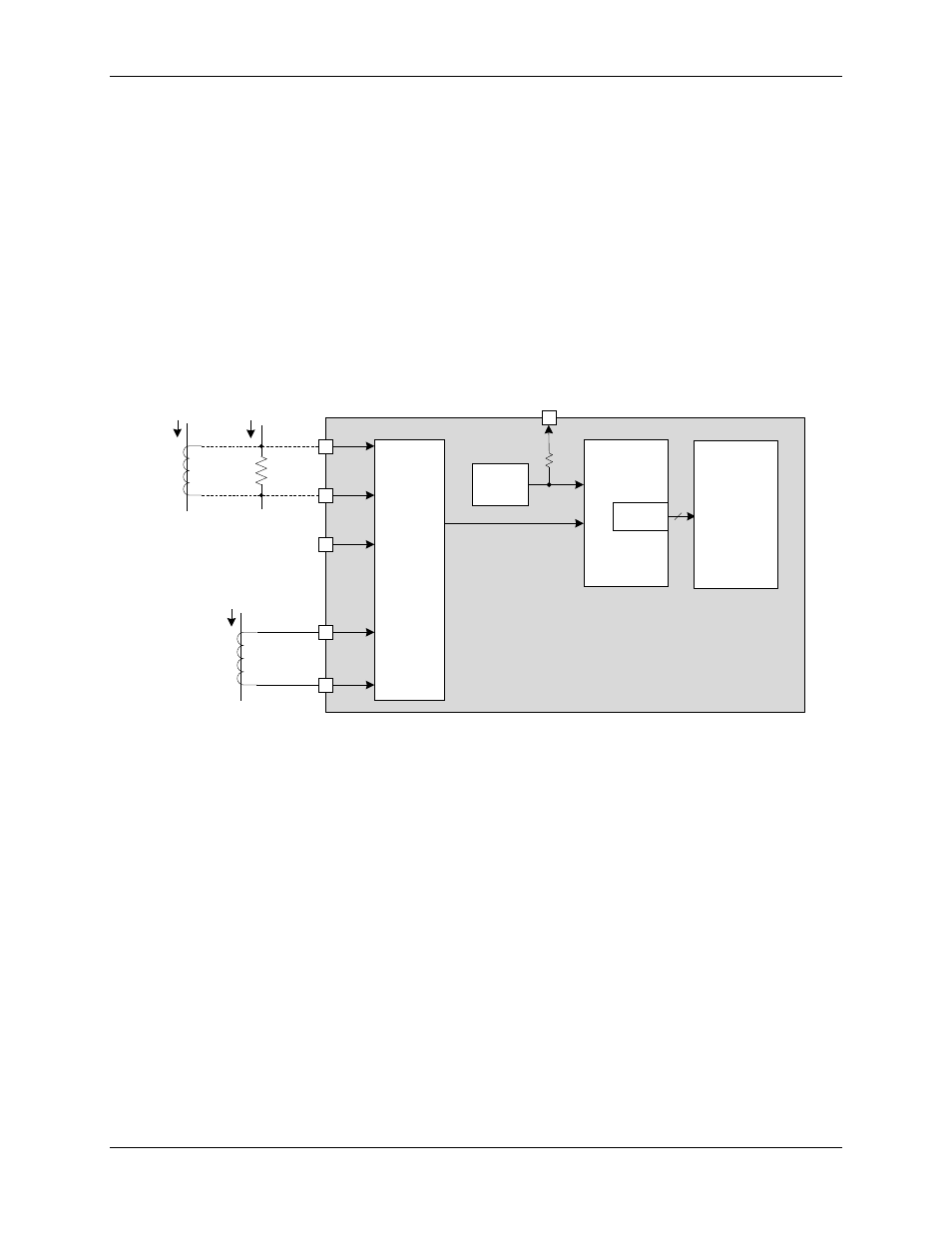

Figure 2. 71M6541D/F AFE Block Diagram (Local Sensors)
