Page 136
136
© 2008–2011 Teridian Semiconductor Corporation
v1.1
5.3.12 CE Flow Diagrams
through
show the data flow through the CE in simplified form. Functions not shown
include delay compensation, sag detection, scaling and the processing of meter equations.

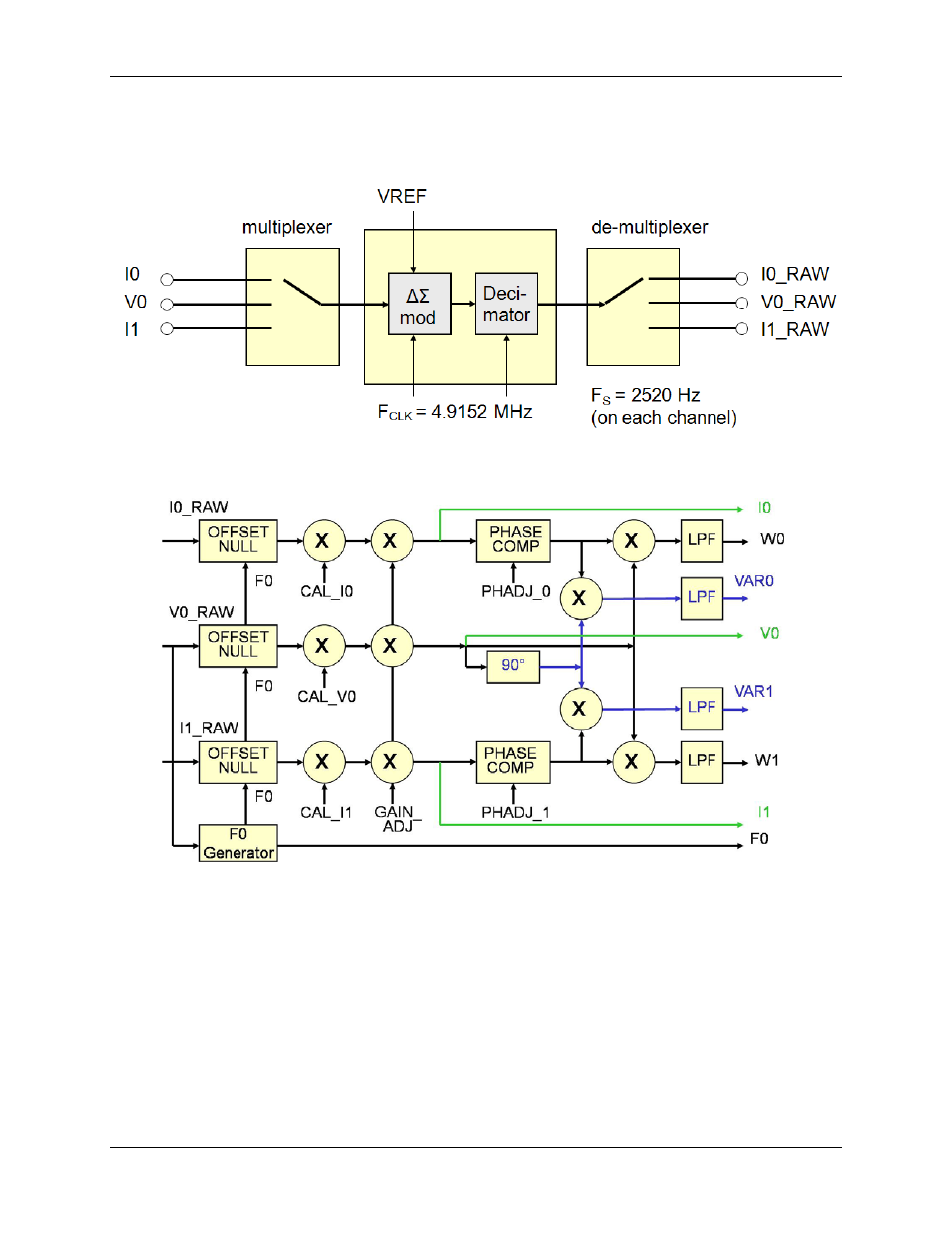

Figure 44: CE Data Flow: Multiplexer and ADC
Figure 45: CE Data Flow: Scaling, Gain Control, Intermediate Variables
