15.10. CAN Autobaud and Listening mode
To activate the Autobaud feature, the AUTOBAUD bit in the CANGCON register is set. In this mode, the CAN
controller is only listening to the line without acknowledging the received messages. It cannot send any message.
The error flags are updated. The bit timing can be adjusted until no error occurs (good configuration find).
In this mode, the error counters are frozen.
To go back to the standard mode, the AUTOBAUD bit must be cleared by the software.

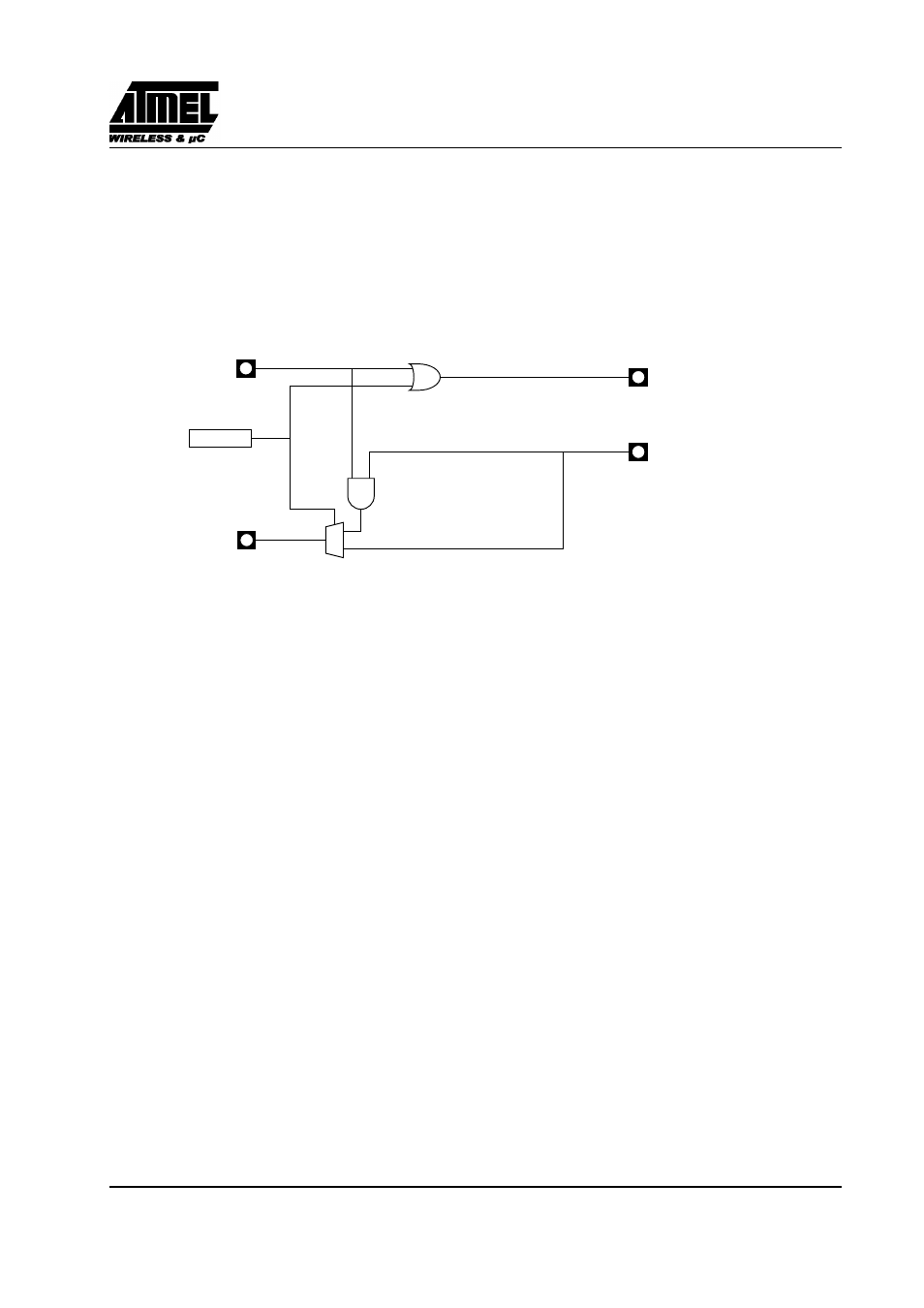

Figure 64. Autobaud Mode
0
1
TxDC
RxDC’
AUTOBAUD
CANGCON.3 RxDC
TxDC’
