8
Gas sampling and gas conditioning technology 2-1.1.7-ME
6 INTRODUCTION
Dilution probes are used wherever dilution of the sample gas is necessary for the measurement of one
or several sample gas components. Examples are the measurement of toxic gas components, mois-
ture measurements or adjustment of the sample gas concentration to the analyser measuring range.
M&C dilution probes type SP2000H/DIL... are based on the modular probe type SP2000-H. The di-
verse variants, filter techniques and materials available ensure optimal adjustment to the particular
process conditions.
7 DESCRIPTION
The probe types SP2000H/DIL/2x, .../DIL/VA/B, .../DIL/BR are shown below.
Sample out
diluted
Pressure gauge
-
1…0bar
Cal gas
Dil. gas
6x1mm

o. Tube 8x1mm * (Inj. I)
Sample out
not diluted
option 2x
1/4"NPT
Dilution gas in
Tube
6x1mm

o.
Tube

 Dilution cross

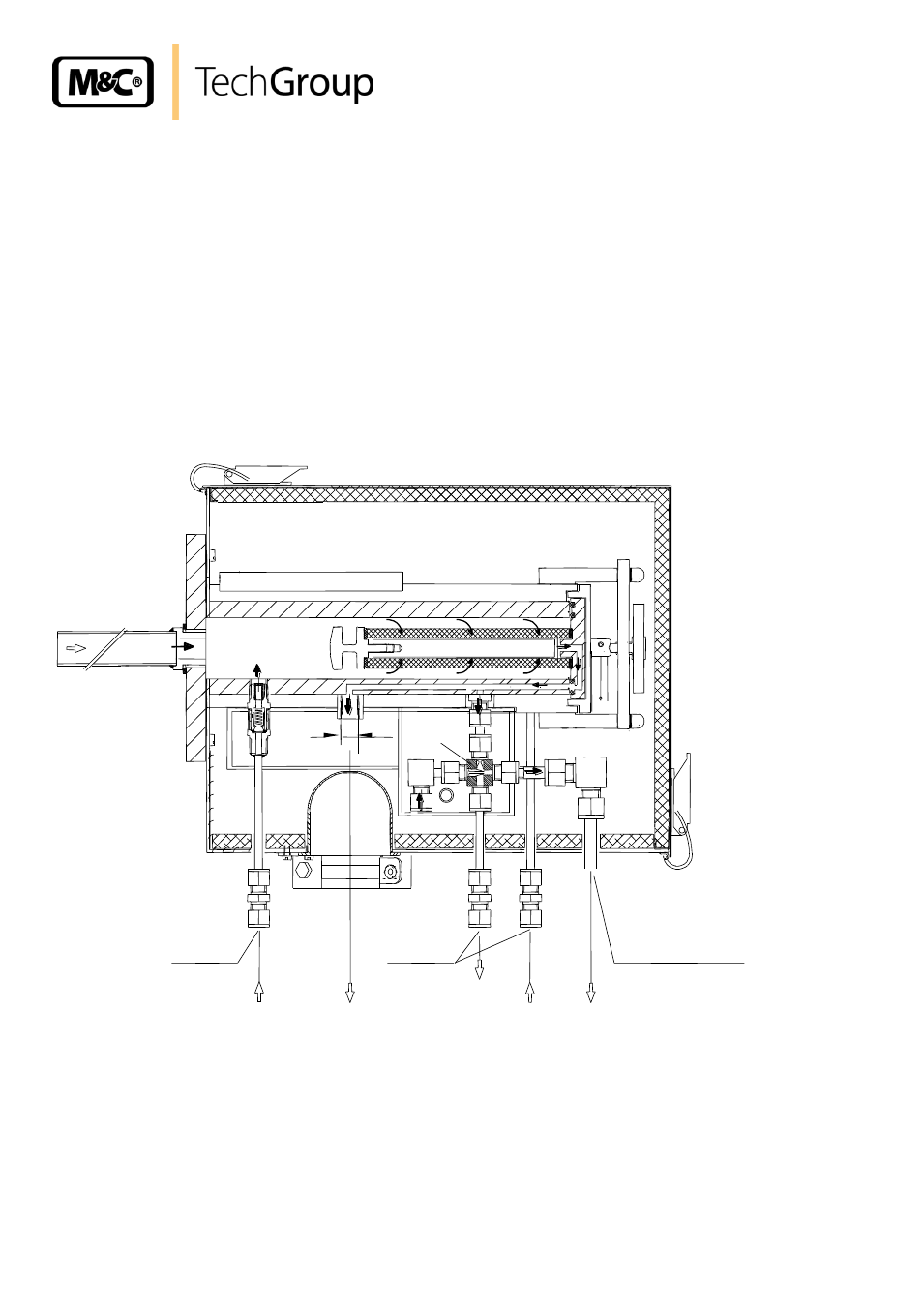

Figure 1 Probe type SP2000H/DIL/2x wit second sample outlet (undiluted)
