6. For an easy retrieval of the configuration, you can save it:
◦ Enter a name in the Template Name field
◦ Click the Add button.
7. Click OK.
The audio configuration is automatically applied.
Audio Level Monitoring
The audio level can be monitored with audiometers on the sides of the Video Display
window when you use the Software Player.
To select the number of audio channels to be displayed, proceed as follows:
1. Right-click the Video Display.
2. Select OCX Audio Configuration from the contextual menu.
The Audio Output Channels window opens.
3. Click the radio button corresponding to the number of audio channels to display.
The audiometers are shown on the Video Display sides.

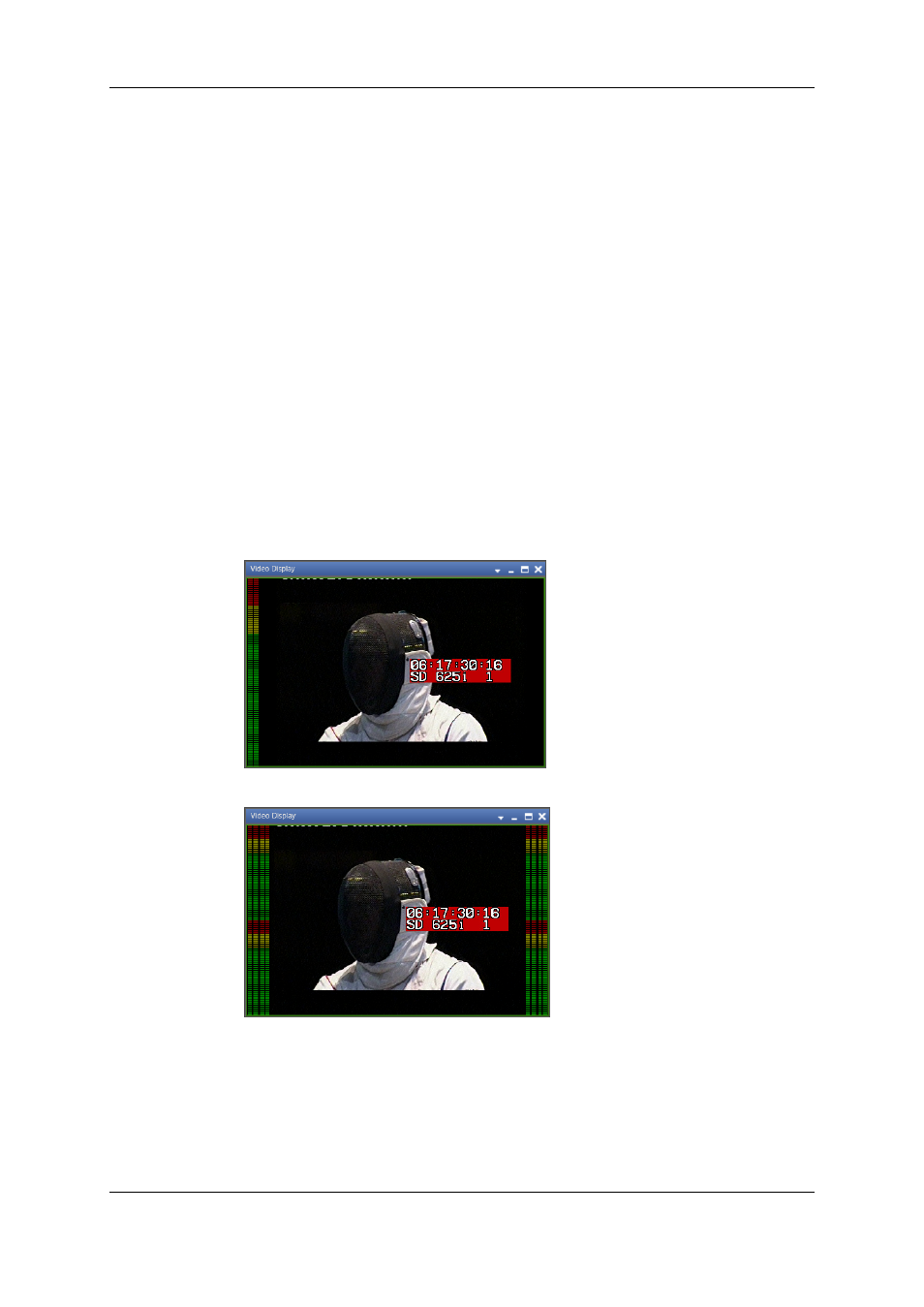

• Example for a selection of 2 channels:
• Example for a selection of 16 channels:
140 10. Display Tools
EVS Broadcast Equipment S.A. - June 2013 Issue 6.2.A
