VAR Mode
The Var wheel mode enables to move in the loaded media at a selected constant review
speed. It is activated by pressing the VAR button. The LED is red.

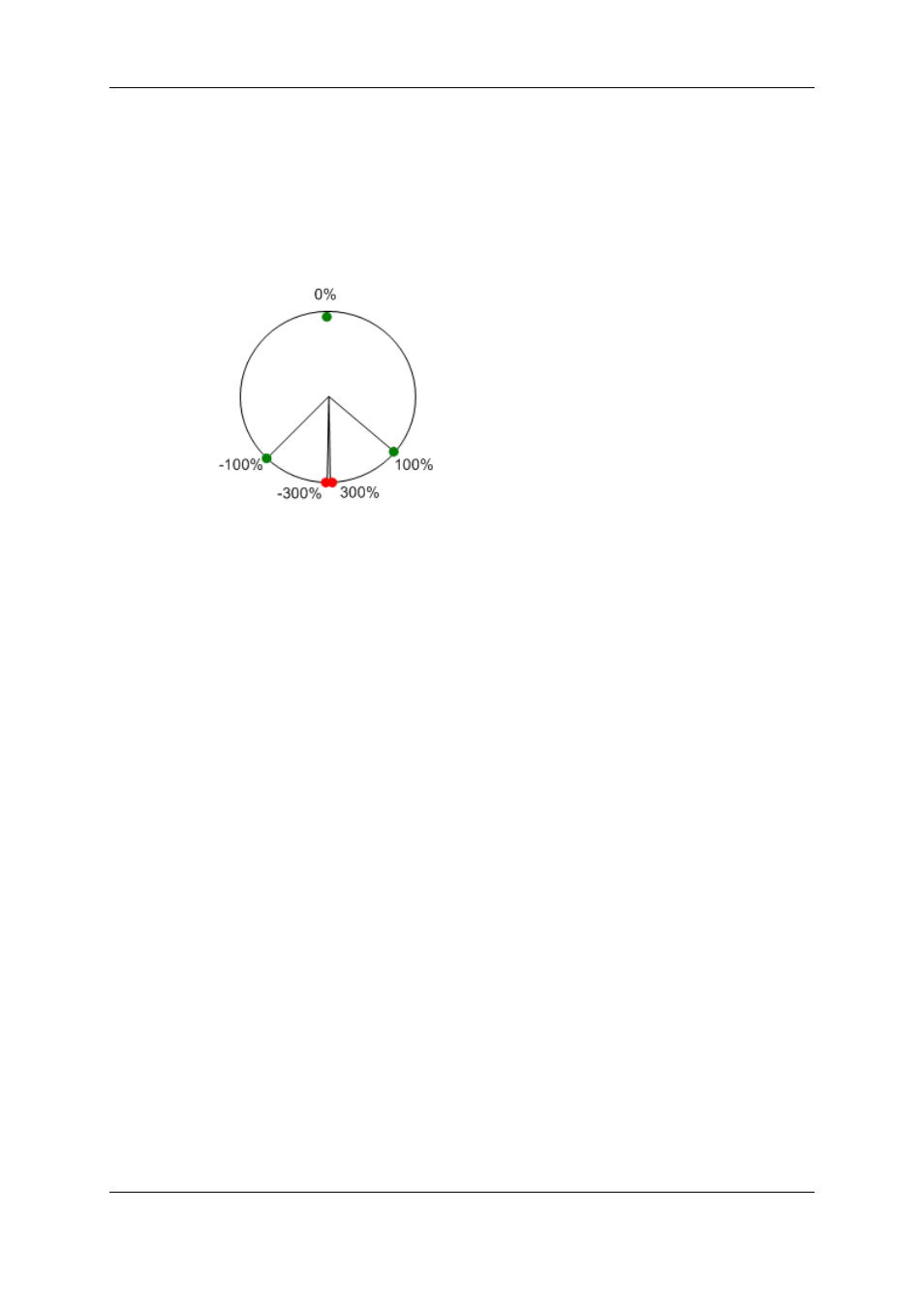

The zero position is calculated from the current playout speed to correspond to the point
where the speed is null. The following picture represents the positions of different speed
values:
Shift Var Mode
The Shift Var wheel mode is used to fine tune a speed by applying +1% or -1% to the
speed. It is activated by pressing the SHIFT key then the VAR button. The LED flashes
red.
The current speed corresponds to the zero position. The speed can be increased
(clockwise), or decreased (counter-clockwise). The positions of the different speed values
will differ according to the initial playout speed.
Shuttle Mode
The Shuttle wheel mode enables to play fast forward or fast rewind the loaded media. It is
activated by pressing the SHUTTLE button. The LED is red.
The zero position is calculated from the current playout speed to correspond to the point
where the speed is null. The speed range is: -35x to +35x.
Jog Mode
The Jog wheel mode is used to navigate through the loaded media field by field. It is
activated by pressing the JOG button. The LED is red.
One impulsion of the wheel corresponds to a jump of one field and is equivalent to
pressing the left arrow or the right arrow keys on the keyboard.
Fast Jog Mode
The Fast Jog wheel mode is used to navigate through content. It is activated by pressing
the SHIFT then the JOG buttons. The LED flashes red.
One impulsion of the wheel corresponds to a jump of 1 second.
