English – ASRock Fatal1ty Z77 Professional User Manual
Page 42
42
Fatal1ty Z77 Professional Series Motherboard
English

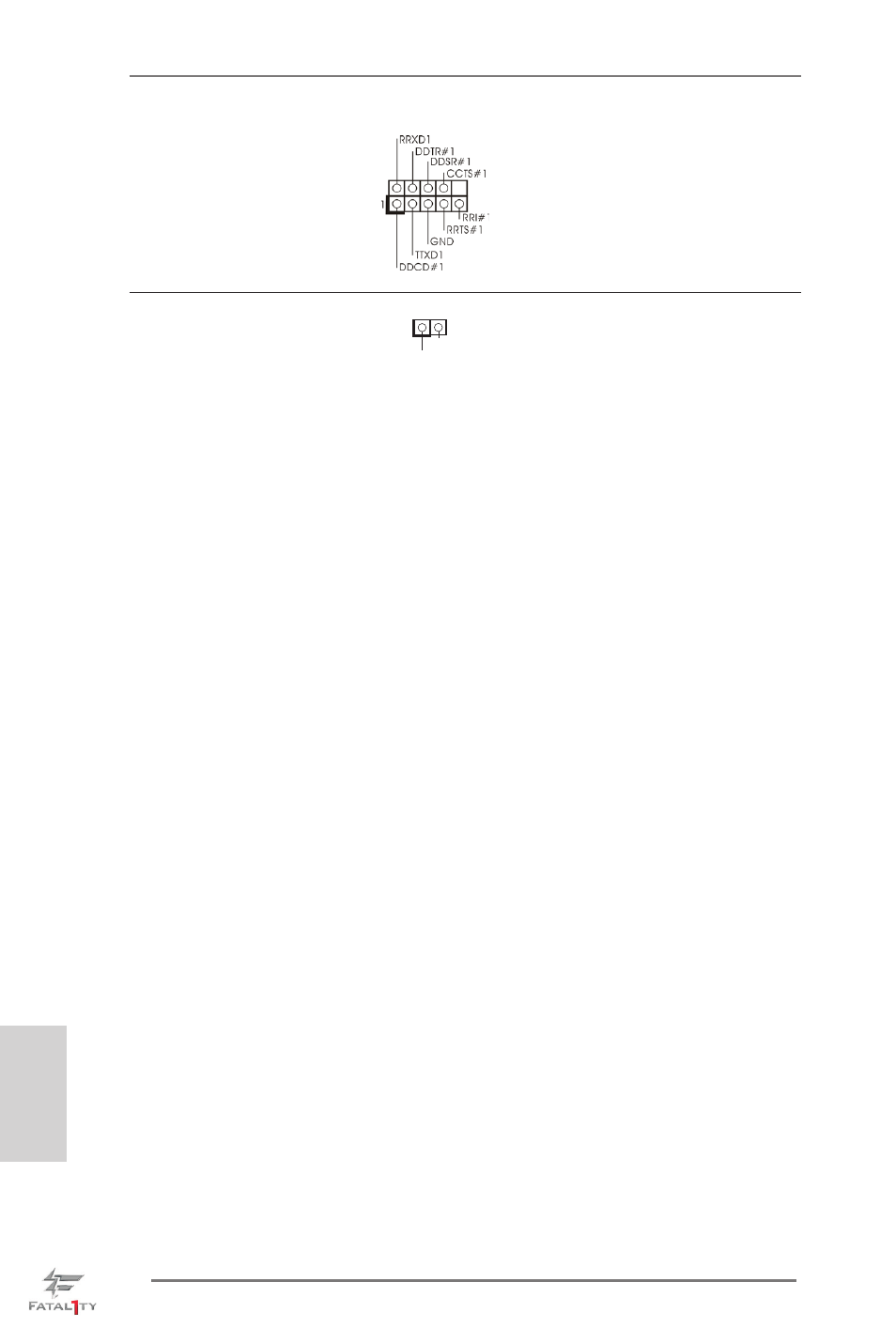

Serial port Header
This COM1 header supports a
(9-pin COM1)
serial port module.
(see p.4, No. 31)
HDMI_SPDIF Header
HDMI_SPDIF header, providing
(2-pin HDMI_SPDIF1)
SPDIF audio output to HDMI
(see p.4, No. 33)
VGA card, allows the system to
connect HDMI Digital TV/
projector/LCD devices. Please
connect the HDMI_SPDIF
connector of HDMI VGA card to
this header.
SPDIFOUT
GND
1
