Step4. Connect a VGA cable or a DVI cable to the monitor connector or the DVI
connector of the graphics card that is inserted to PCIE2 slot.

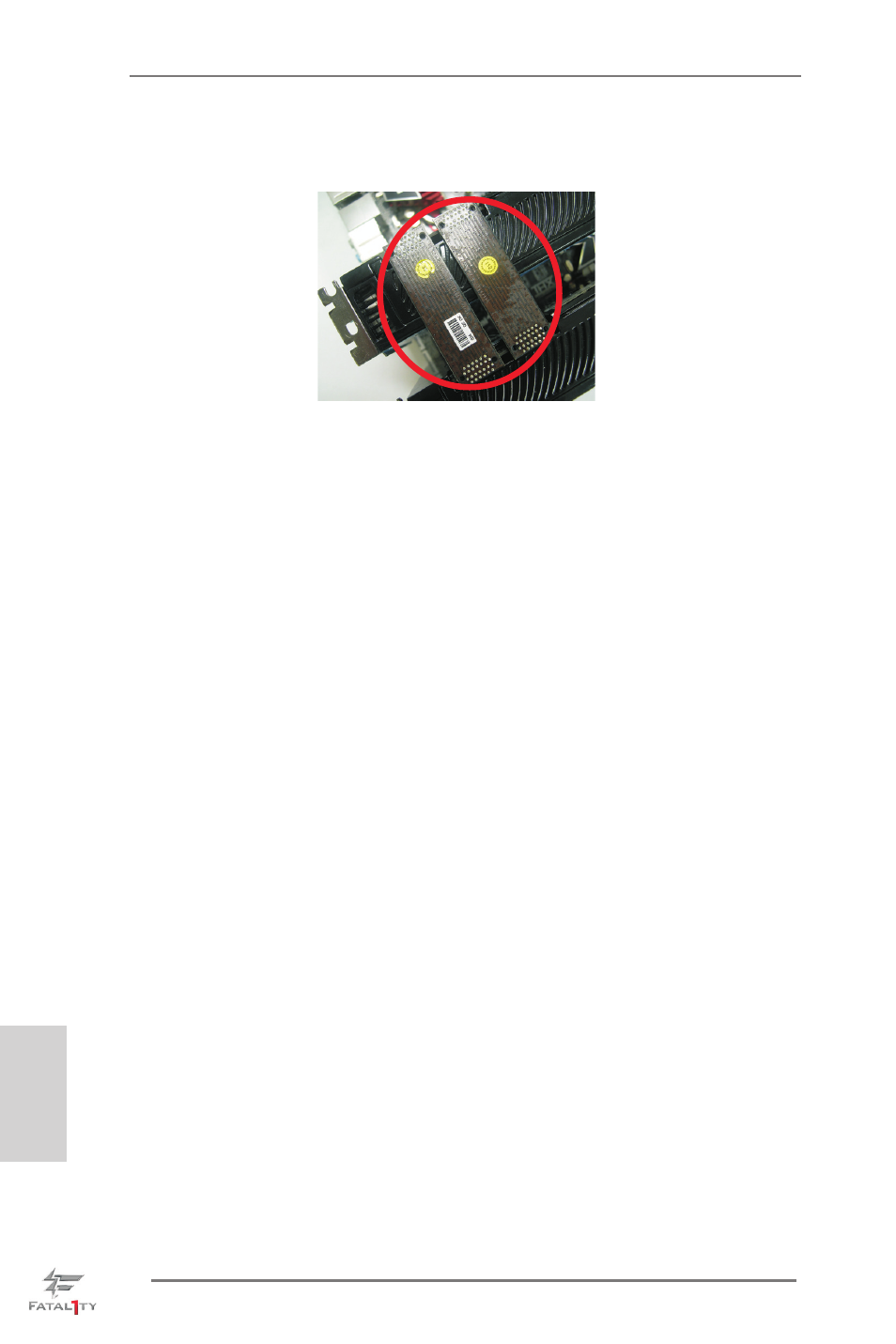

Step3. Align and insert SLI_Bridge_2S Card to the goldfingers on each graphics
card. Make sure SLI_Bridge_2S Card is firmly in place.
