Page 47
3–11
as on the Omni 288P except that the Omni 288S has two LED indicators labeled
RTS and CTS instead of PRP and PCP as found on the Omni 288P.
The meaning of the Omni 288S LED indicators can be found in the table beginning
on page 3-2 where the LED indicators of the same label are explained for the Elite
2864 model.
Omni 288P Rear Panel
Fig. 3.8 shows the rear panel of the Omni 288P.
The table below explains the switch and connectors on the rear panel according to
their labels:
ON/OFF
The power switch; up position is ON, down position is OFF.
POWER
Input terminal for the power adapter, connects to an external AC or
DC 12V-16V, 1A adapter.
AUX
RS232
A RJ45 Jack for an auxiliary RS232 serial port; may be used to is-
sue AT commands and receive responses for monitoring purposes.

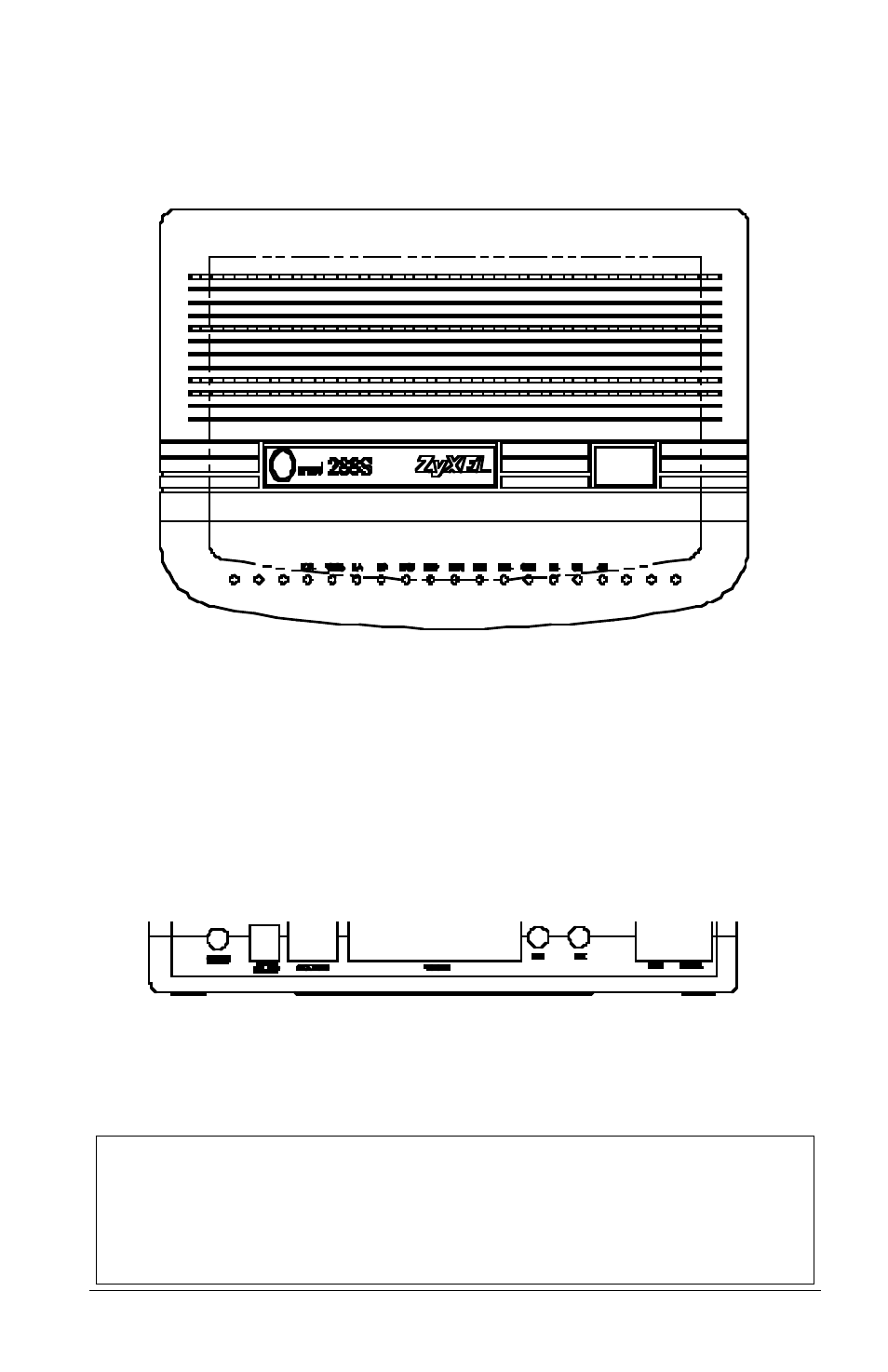

Fig. 3.7The Omni 288S front panel
Fig. 3.8: The Omni 288P rear panel
