ES-2108 Series User’s Guide
76 Chapter 8 VLAN
8.5 Static VLAN
Use a static VLAN to decide whether an incoming frame on a port should be
• sent to a VLAN group as normal depends on its VLAN tag.
• sent to a group whether it has a VLAN tag or not.
• blocked from a VLAN group regardless of its VLAN tag.
You can also tag all outgoing frames (that were previously untagged) from a port with the
specified VID.
8.5.1 Static VLAN Status
Click Advanced Application, VLAN from the navigation panel to display the VLAN Status
screen as shown next.

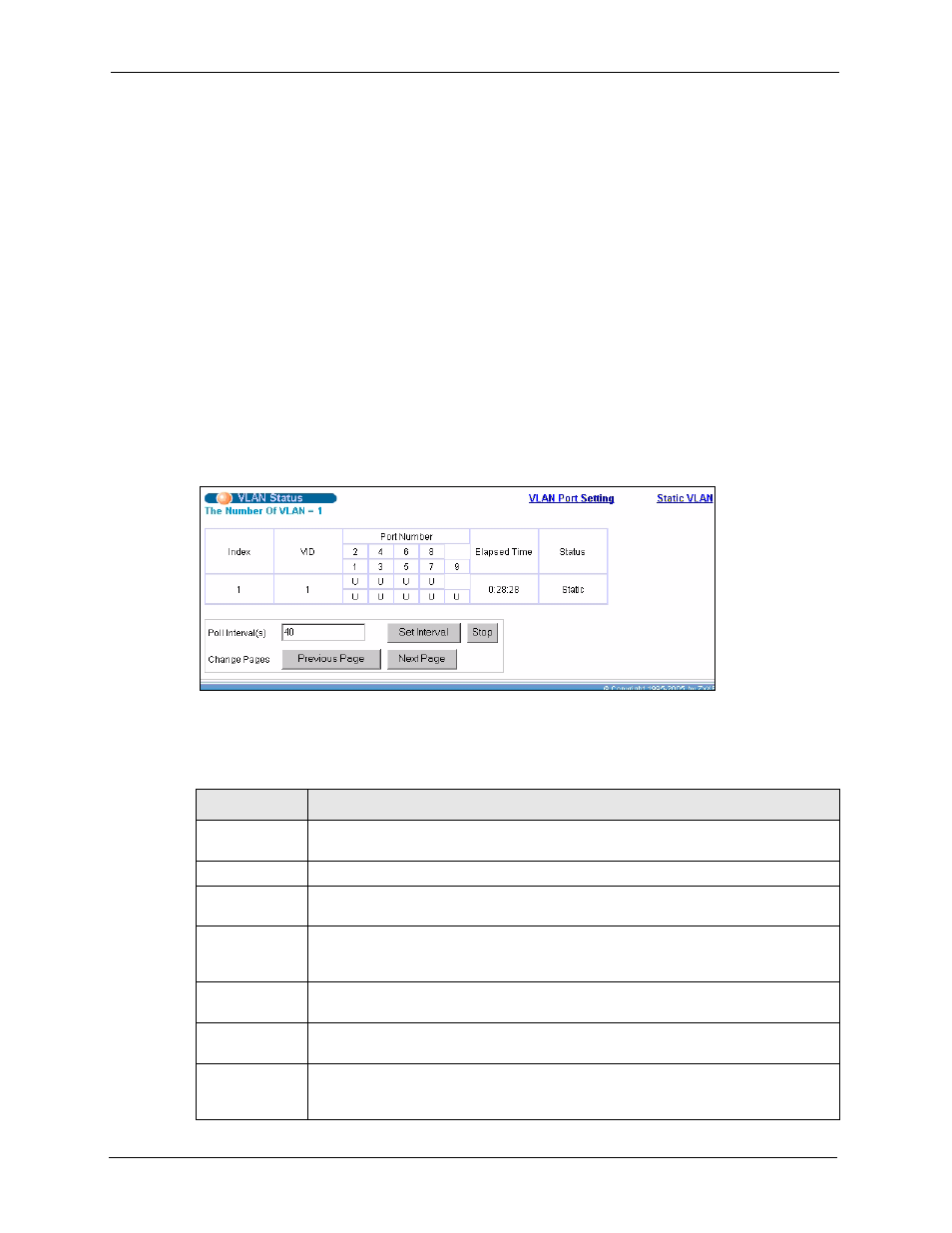

Figure 34 VLAN: VLAN Status
The following table describes the labels in this screen.
Table 14 VLAN: VLAN Status
LABEL DESCRIPTION
The Number of
VLAN
This is the number of VLANs configured on the switch.
Index This is the VLAN index number.
VID This is the VLAN identification number that was configured in the VLAN Setup
screen.
Port Number This column displays the ports that are participating in a VLAN. A tagged port is
marked as T, an untagged port is marked as U and ports not participating in a VLAN
are marked as “–“.
Elapsed Time This field shows how long it has been since a normal VLAN was registered or a static
VLAN was set up.
Status This field shows how this VLAN was added to the switch; dynamically using GVRP or
statically, that is, added as a permanent entry.
Poll Interval(s) The text box displays how often (in seconds) this screen refreshes. You may change
the refresh interval by typing a new number in the text box and then clicking Set
Interval.
