ES-2108 Series User’s Guide
40 Chapter 3 Hardware Overview

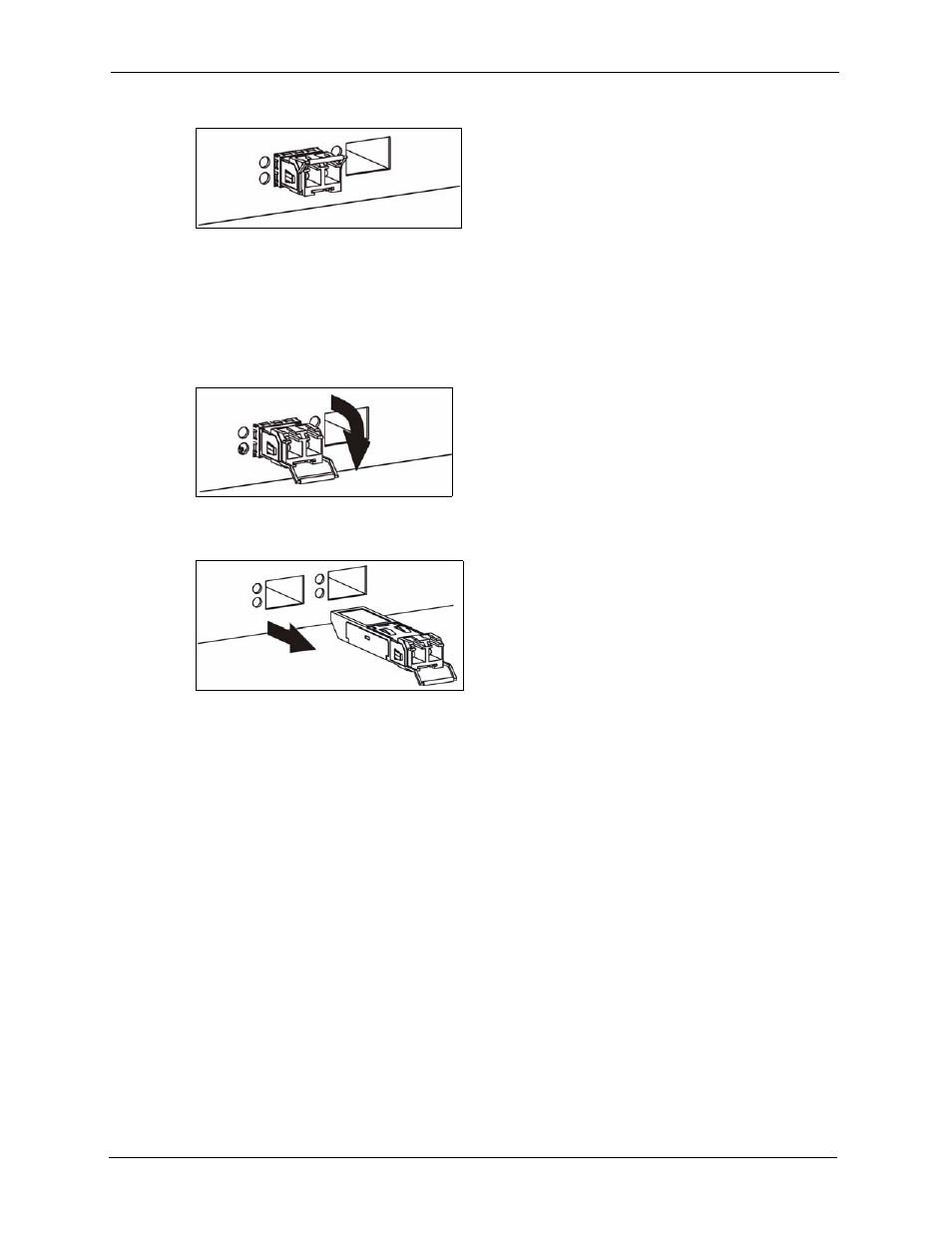

Figure 13 Installed Transceiver
3.1.3.2 Transceiver Removal
Use the following steps to remove a mini GBIC transceiver (SFP module).
1 Open the transceiver’s latch (latch styles vary).
Figure 14 Opening the Transceiver’s Latch Example
2 Pull the transceiver out of the slot.
Figure 15 Transceiver Removal Example
3.1.4 100 Base-FX Fiber-Optic Port
This 100 Base-FX fiber-optic port is only available on the ES-2108-LC.
Note: To avoid possible eye injury, do not look directly into a module’s fiber-optic
connectors. Keep the dust cover on a fiber-optic module until you connect it.
You may need to clean the fiber-optic cable’s connectors with a cotton swab
dipped in alcohol.
• Type: Fiber-optic
• Wavelength: 1310 +/- 50 nm
• Multi-mode
• Dual LC connectors
• Connection distance: Up to 2km
