ES-2108 Series User’s Guide

52

Chapter 5 Initial Setup Example

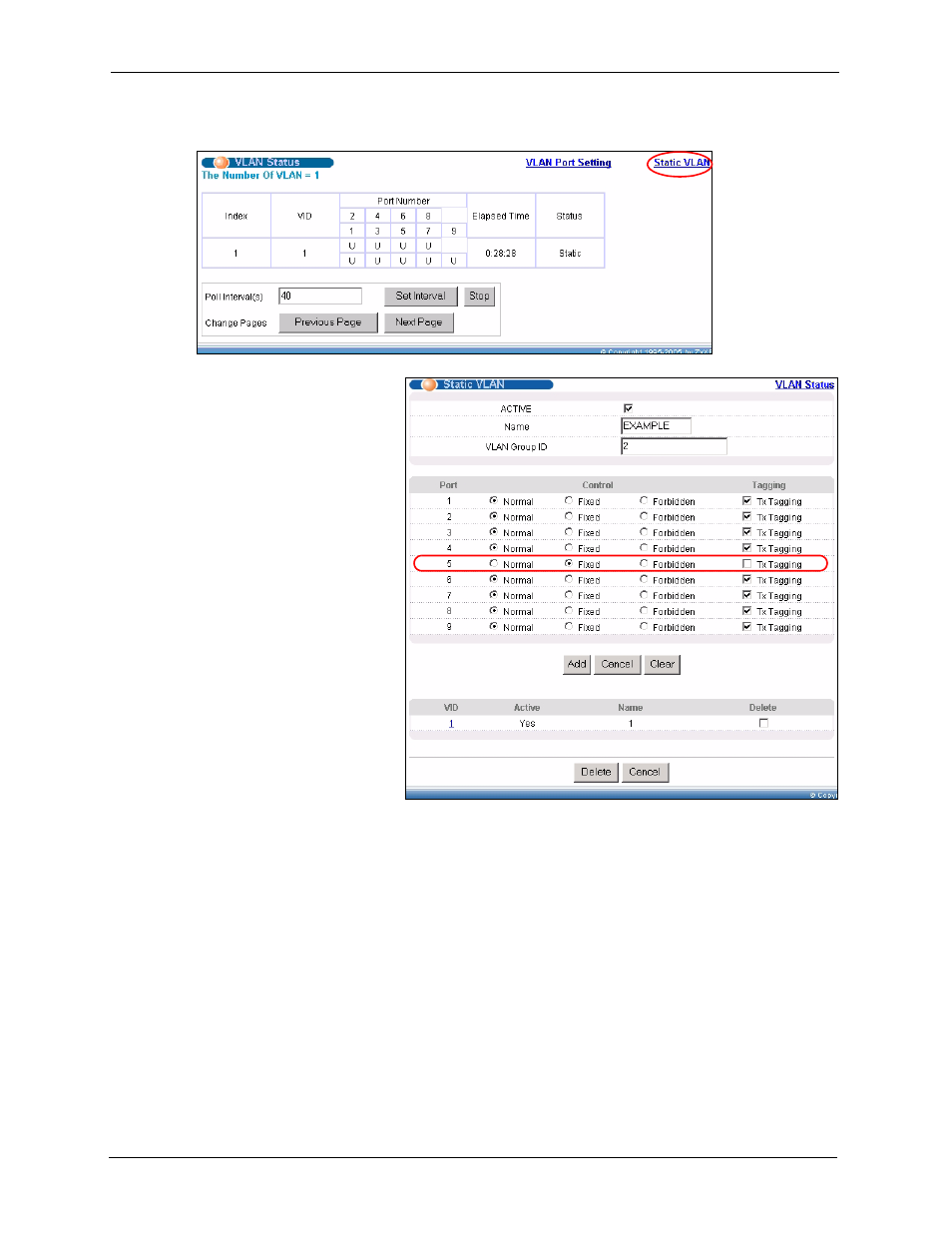

1 Click Advanced Application and VLAN in the navigation panel and click the Static

VLAN link.

2 In the Static VLAN

screen, select
ACTIVE, enter a
descriptive name in the
Name field and enter 2
in the VLAN Group
ID
field for the VLAN2
network.

Note: The VLAN Group

ID field in this
screen and the VID
field in the IP Setup
screen refer to the
same VLAN ID.

3 Since the VLAN2

network is connected to
port 5 on the switch,
select Fixed to
configure port 5 to be a
permanent member of
the VLAN only.

4 To ensure that VLAN-unaware devices (such as computers and hubs) can receive frames

properly, clear the TX Tagging check box to set the switch to remove VLAN tags before
sending.

5 Click Add to save the settings.

5.1.2 Setting Port VID

Use PVID to add a tag to incoming untagged frames received on that port so that the frames
are forwarded to the VLAN group that the tag defines.

In the example network, configure 2 as the port VID on port 5 so that any untagged frames
received on that port get sent to VLAN 2.
