ES-2108 Series User’s Guide
Chapter 5 Initial Setup Example 53

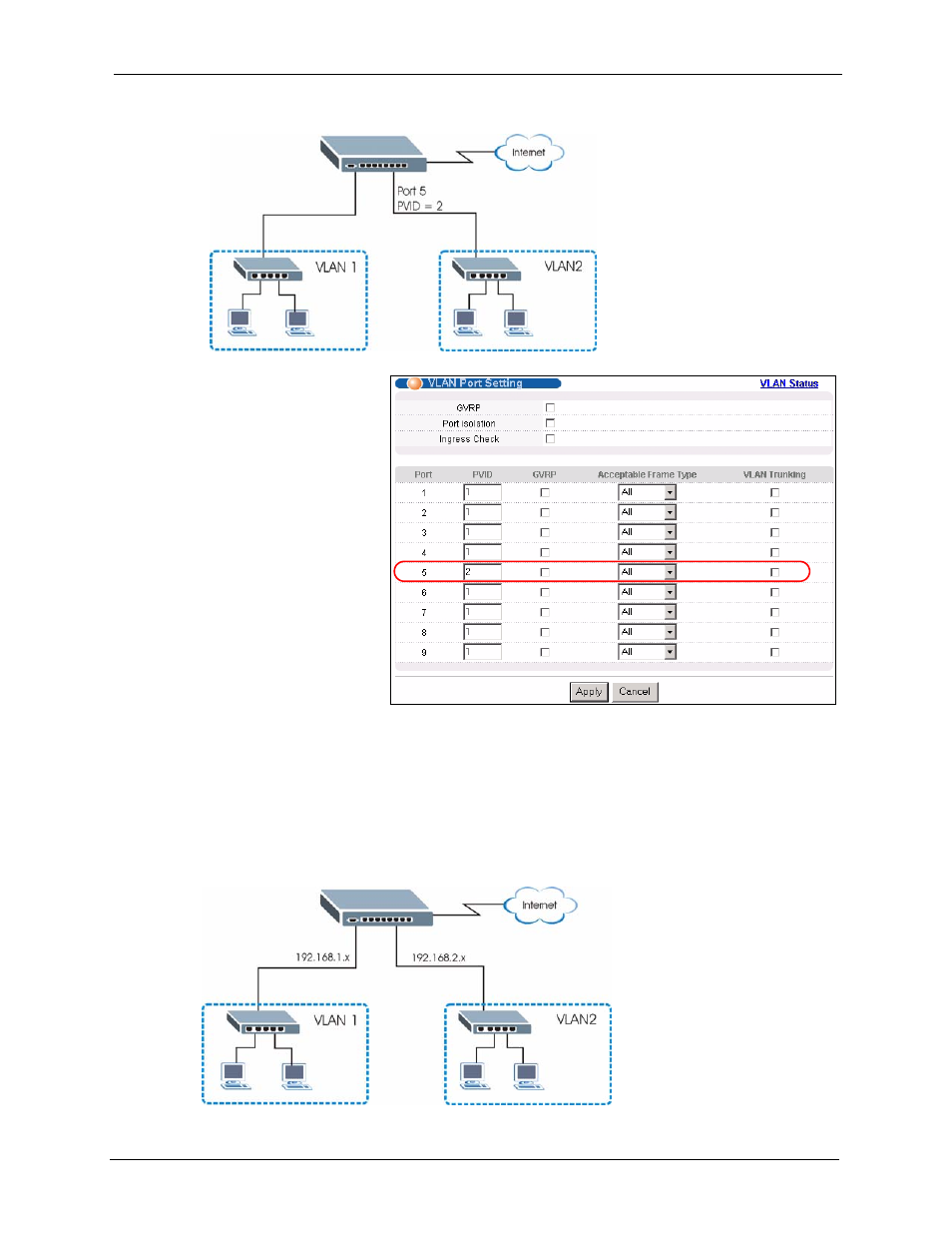

Figure 23 Initial Setup Network Example: Port VID
1 Click Advanced
Applications and
VLAN in the
navigation panel.
Then click the VLAN
Port Setting link.
2 Enter 2 in the PVID
field for port 5 and
click Apply to save
the settings.
5.1.3 Configuring Switch Management IP Address
The default management IP address of the switch is 192.168.1.1. You can configure another IP
address in a different subnet for management purposes. The following figure shows an
example.
Figure 24 Initial Setup Example: Management IP Address
