ES-2108 Series User’s Guide
114 Chapter 20 Differentiated Services

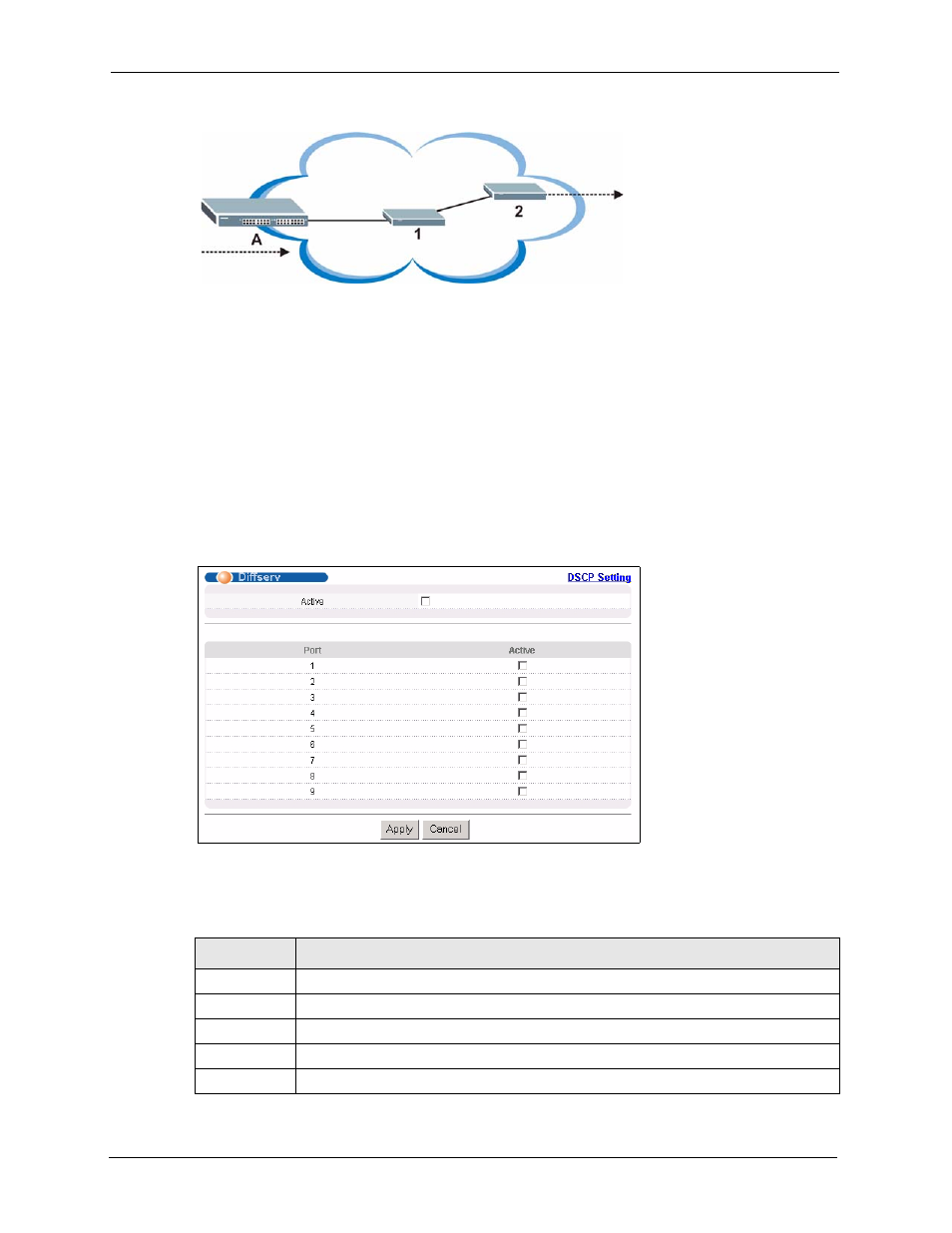

Figure 56 DiffServ Network Example
Switch A marks traffic flowing into the network based on the configured marking rules.
Intermediary network devices 1 and 2 allocate network resources (such as bandwidth) by
mapping the DSCP values and the associated policies.
20.2 Activating DiffServ
Activate DiffServ to allow the switch to enable DiffServ on the selected port(s).
Click IP Application, DiffServ in the navigation panel to display the screen as shown.
Figure 57 DiffServ
The following table describes the labels in this screen.
Table 37 DiffServ
LABEL DESCRIPTION
Active Select this option to enable DiffServ on the switch.
Port This field displays the index number of a port on the switch.
Active Select this option to enable DiffServ on the port.
Apply Click Apply to save the changes.
Cancel Click Cancel to start configuring this screen again.
