1 default ethernet settings, 3 mini-gbic slot, 1 transceiver installation – ZyXEL Communications ES-2108 User Manual

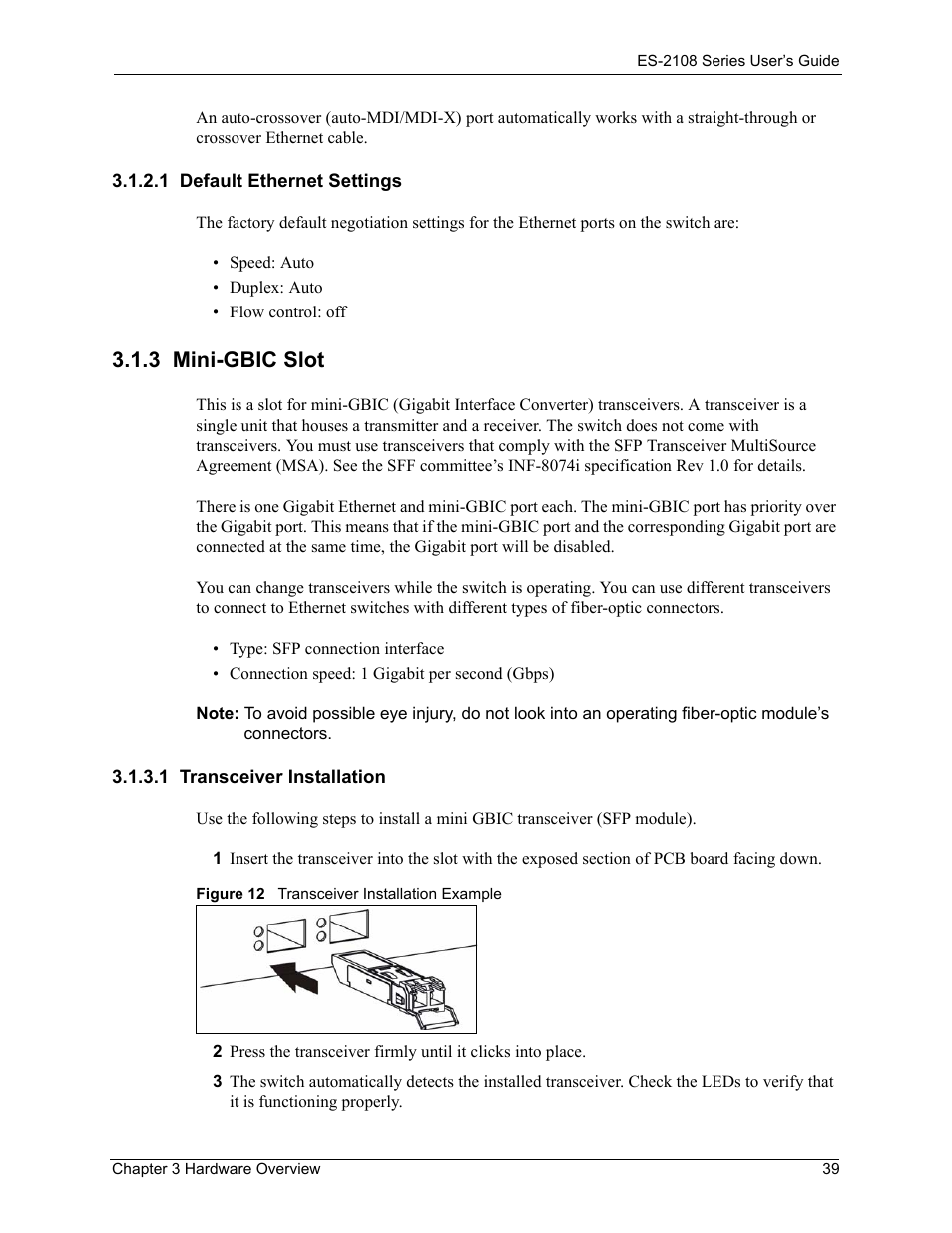

Page 39: Figure 12 transceiver installation example
