8 Keyboard (EX5 and EX7 only)
The EX5 has a 76-key keyboard while the EX7 has a 61-key keyboard. Both are velocity and
after-touch sensitive for broad, intimate expressive control.
6 A/D Gain Control
Adjusts the input level of the INPUT R and L/MONO jacks (the INPUT jack on the EX7), and
therefore the level of the signal appearing at the input of the A/D (Analog-to-Digital) converter.
This control is important for setting optimum record level when recording samples in the
SAMPLE mode.
➡ See page 70 for more information.
5 SCENE [1] and [2] Keys ([SC1] and [SC2] on the EX5R)
The SCENE [1] and [2] keys can be used to memorize and recall different settings of the
Controller Knobs, so a complete set of knob settings can be recalled instantaneously. Knob
scenes are stored by using the SCENE keys in conjunction with the STORE key (page 57).
When both SCENE indicators are lit (this is done by pressing one SCENE key while holding the
other), the MODULATION 2 wheel or a foot controller can be used to “morph” between the
two scenes stored in the SCENE [1] and [2] keys (page 57).
7 VOLUME Control
Adjusts the volume of the sound delivered via the rear-panel OUTPUT L/MONO and R jacks
as well as the PHONES jack.

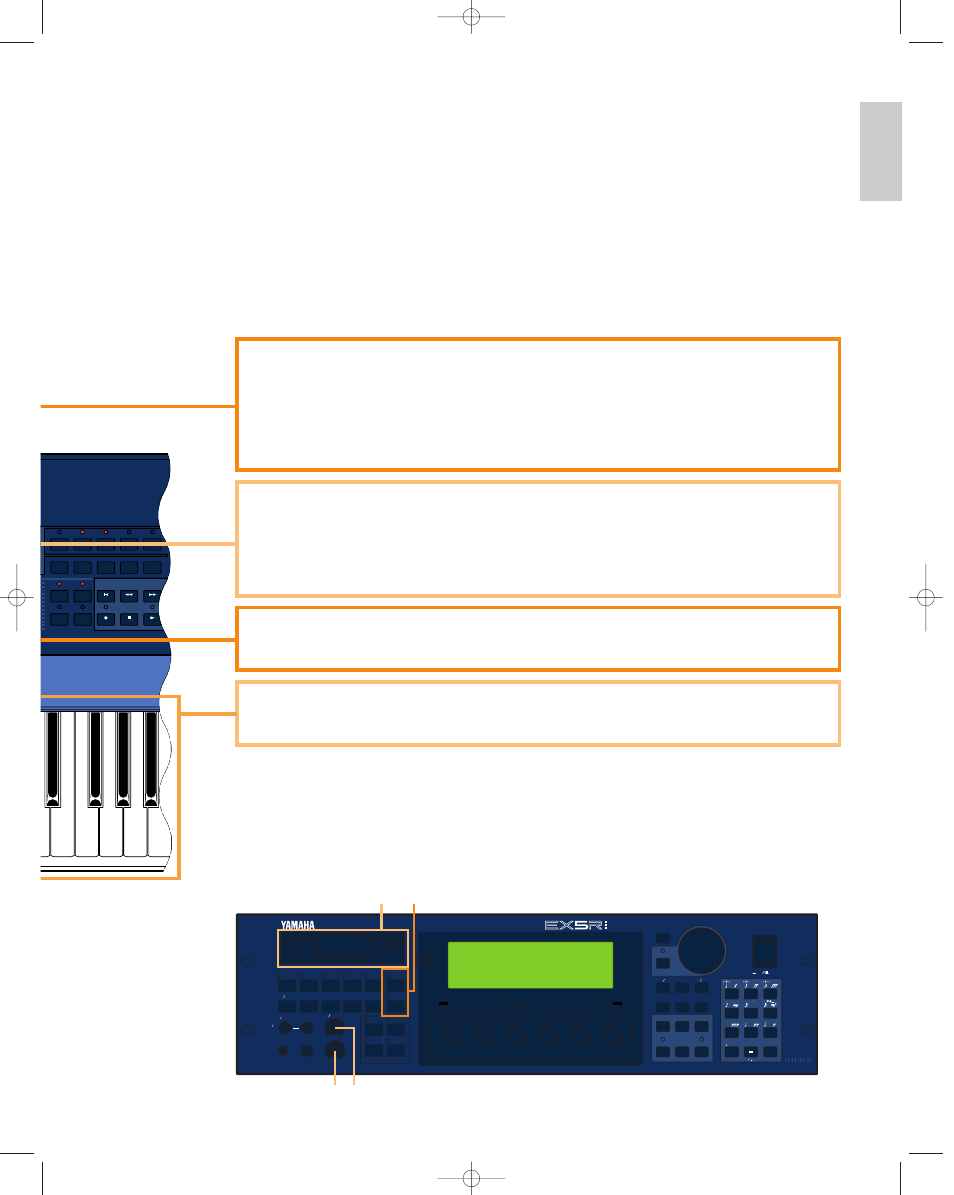

EX5R
7 6
9
5
*
1, 2, 3, 4 and 8 are not available on EX5R.
