Management port, Rear panel, 3 rear panel – ZyXEL Communications ZyXEL Dimension ES-3124 User Manual
Page 41: 5 management port

Dimension ES-3124 Ethernet Switch
Hardware Connections
3-5

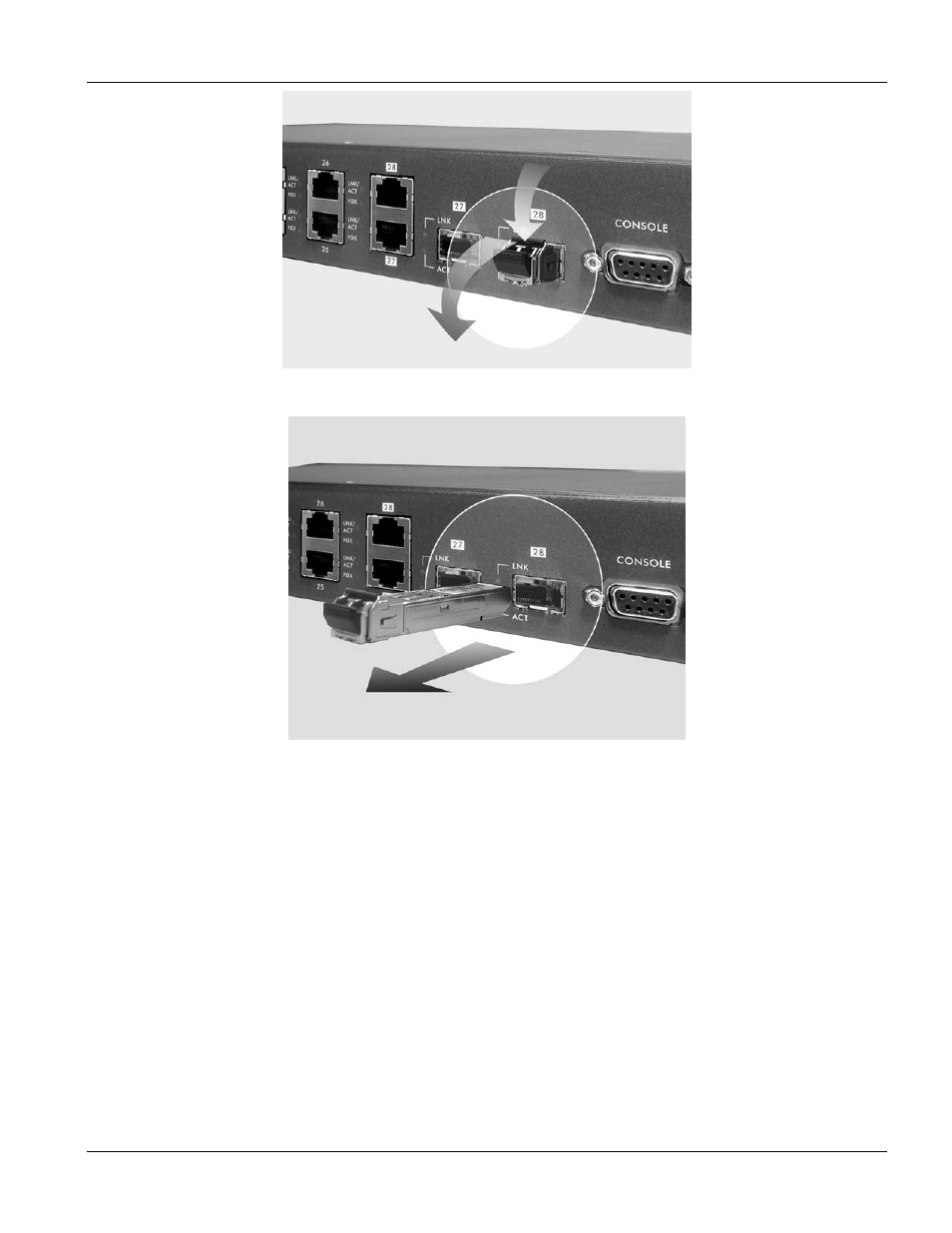

Figure 3-4 Opening the Transceiver’s Latch Example
Figure 3-5 Transceiver Removal Example
3.2.5 Management
Port
The MGNT (management) port is used for local management. Connect directly to this port using a STP (Shield
Twisted-Pair) cable. You can configure the switch via Telnet or the web configurator.
The default IP address of the management port is 192.168.0.1 with a subnet mask of 255.255.255.0
3.3 Rear Panel
The following figure shows the rear panel of the ES-3124. The rear panel contains the ventilation holes, a connector
for external backup power supply (BPS) and the power receptacle.
