2-4 IMACS System Release 5.1.6 Data Cards
Model No. Running Head SRU Card User Screens and Settings SRU Card
2.3 SRU Card User Screens and Settings
You must configure the SRU card for operation after installing it in the system chassis. This
is done from the SRU Card Main Screen (Figure 2-3). To go to that screen, highlight the
desired card on the System Main Screen and press . The SRU Card Main Screen has
numerous columns of data for port configuration purposes. The port numbers on the screen
correspond to the card faceplate jacks from top to bottom (see Figure 2-3).

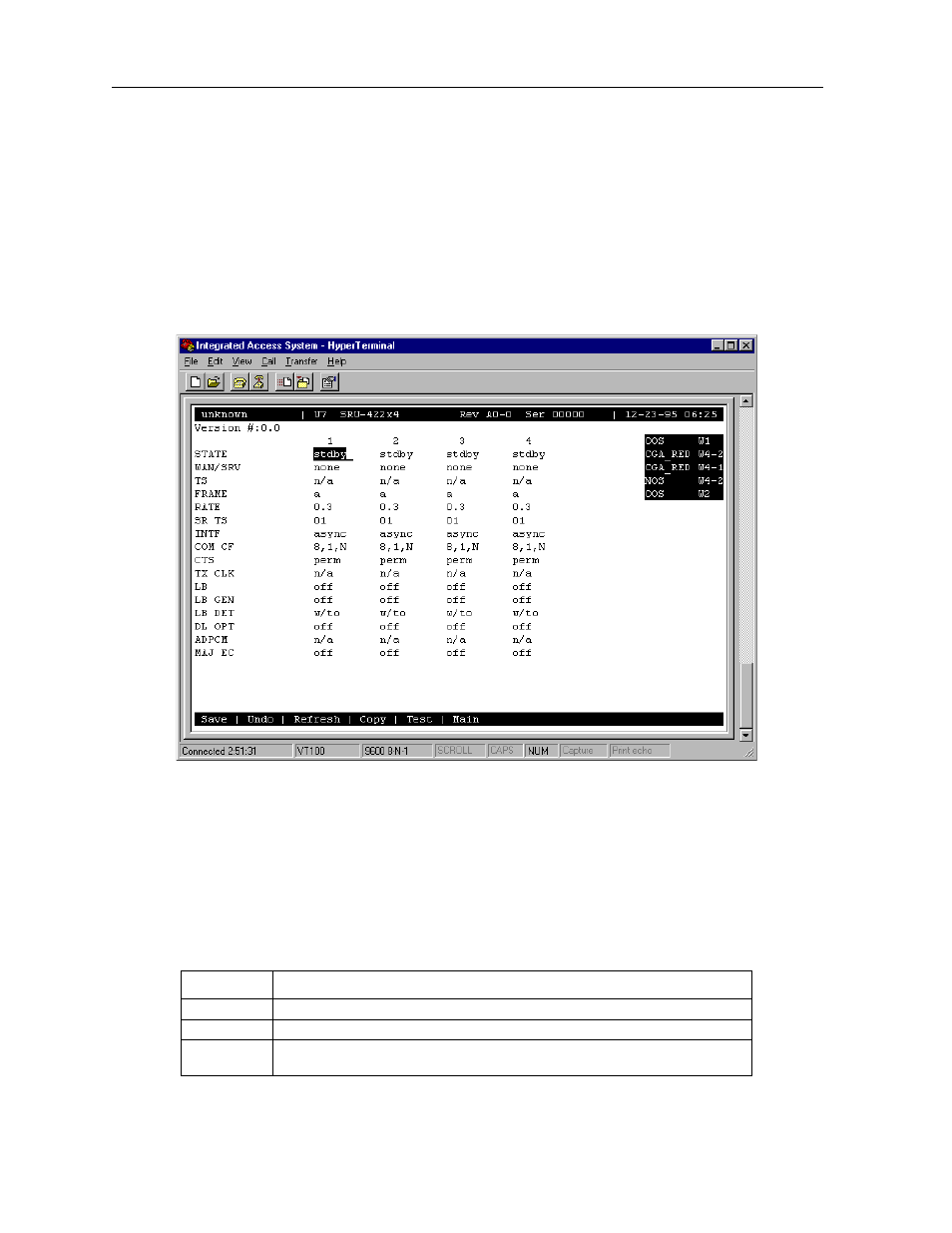

Figure 2-3. Typical SRU Card Main Screen
The highlighted bottom line of this screen shows numerous actions you can perform from this
screen. To perform an action, simply press the uppercase key indicated on this line. For
example, to save your option settings for this card, press “s”. Table 2-1 lists the actions you
can perform.
Table 2-1. Main Screen Actions
Action Function
Save Saves changes to settings.
Undo Returns all settings to the last saved state.
Refresh Updates certain time-related information fields that are not automatically
updated (i.e., test status).
