1-4 IMACS System Release 5.1.6 Data Cards
Model No. Running Head HSU Cards HSU Card

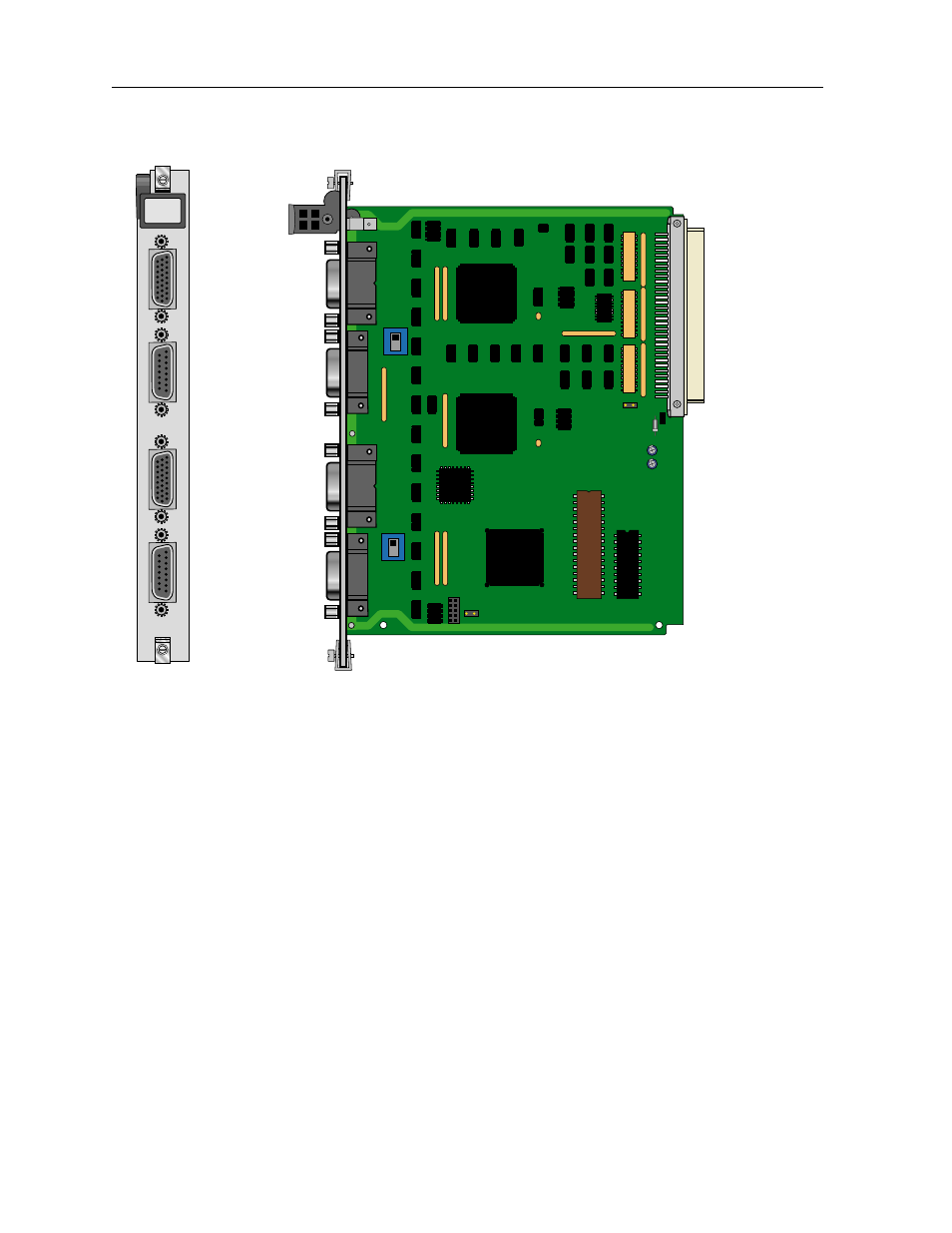

Figure 1-2. HSU-AD 530/35 Card Switches
1.2.4.2 Installing the HSU-AD 530/35 Card
Install the HSU-AD 530/35 Card into any user card slots. These slots are U1 to U8 on the
two-sided chassis and front-loading chassis with power supplies on top, or P1 to P4 and W1
to W4 on the front-loading chassis with power supplies on the side.
1.2.5 HSU-T V35 Card Description (821460)
The HSU-T V35 Card supports two V.35 CPE data devices. Each card port can be configured
to operate as either DCE or DTE, with data speeds ranging from 56 or 64 kbps to 1.544 or
2.048 Mbps.
Power
Bus
Edge
Connector
HSU RS530/V.35
Port #1
RS366 Dialing
Port #1
HSU RS530/V.35
Port #2
RS366 Dialing
Port #2
RS-530
V.35
RS-530
V.35
HSU*4
AD530/35
P
1
P
2
P
3
P
4
