Data Cards IMACS System Release 5.1.6 6-11
PM-IOR Card PM-IOR Card User Screens and Settings
6.3.2 PM-IOR Test Screen
Selecting “T” (Test) from the PM-IOR Card Main Screen accesses the Test Screen depicted
in Figure 6-9. From this screen, you can create test scenarios between PM-IOR Cards, or
between a single card and test equipment at a remote site.

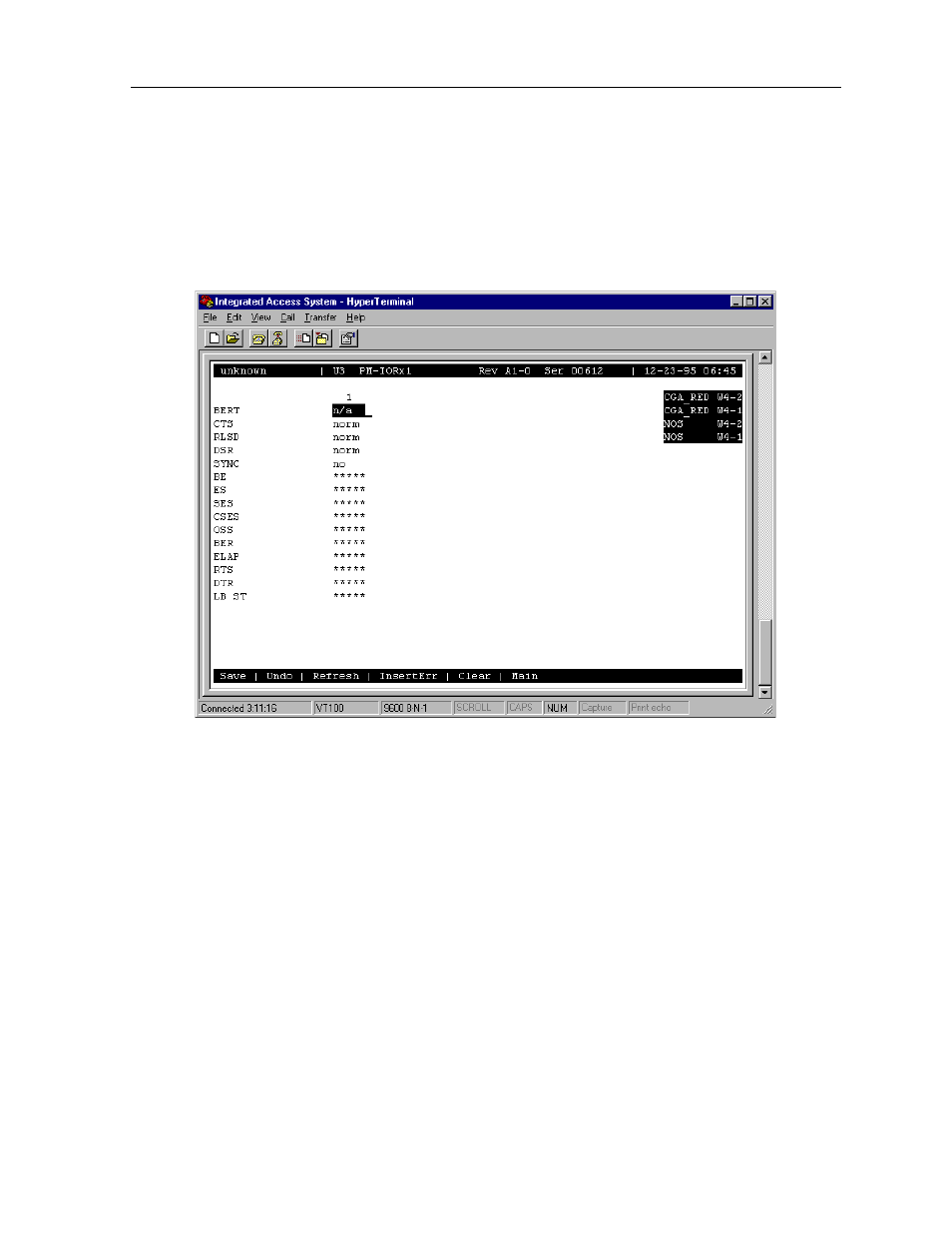

Figure 6-9.Typical PM-IOR Test Screen
Table 6-3 lists the actions you can perform from the bottom line of this screen, and Table lists
the settings presented on this screen, along with their possible and default values. Both of
these tables are on the following page.
