Data Cards IMACS System Release 5.1.6 1-11
HSU Card HSU Cards

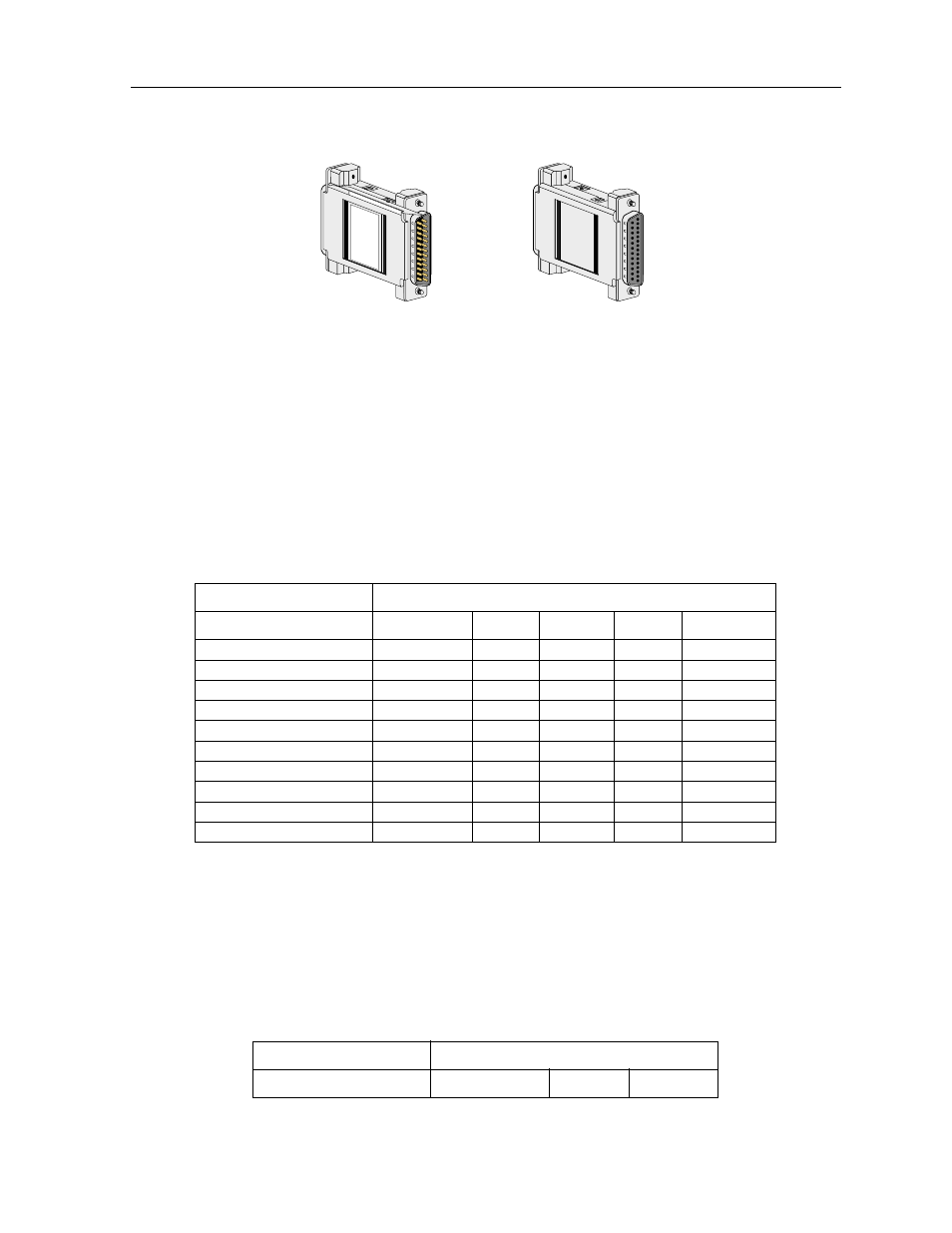

Figure 1-7. RS-232 Personality Module
1.2.10 HSU Card Cables
Table 1-1, Table 1-2, and Table 1-3 represent a matrix used for connecting cables to HSU
Cards for DTE and DCE transmit clocking. The following HSU Cards apply (820260, 820360,
821260, 821360, 821460, 821570 and 821660).
Table 1-1. HSU to Cable Matrix (To DTE Clock)
*820260/820360 Switches set to RS-530 and 1252 Connected to HSU Card
**The 1253 Connects to the end of the 1264F Cable
1253 is a New Version of the 1252 and can replace a 1252.
Table 1-2. HSU to Cable Matrix (To DCE Clock)
HSU CARD TO A DTE THAT ACCEPTS CLOCK
RS232 RS366 RS449 RS530 V.35
820260 NO SWITCHES 1252/1221* 1212F/M 1204F/M 1203F/1251
820260 WITH SWITCHES 1252/1221* 1212F/M 1204F/M 1261F/M
820360 DCE 1252/1221* 1212F/M 1204F/M 1261F/M
820360 DTE
821260
1203F/M
821360/821560/821660 1264F/1253** 1206F 1265F/M 1264F/M 1263F/M
821460 DCE 1260F/M
821460 DTE
2 PORT EXT. CABLES
1221 1222 1224
4 PORT EXT. CABLES 1269 1268
HSU CARD TO A DCE THAT ACCEPTS CLOCK
RS449 RS530 V.35
DB25 Male-Female
(Male view)
DB25 Male-Female
(Female view)
