Page 125
Data Cards
IMACS System Release 5.1.6
5-11
BRI Card
BRI Card User Screens and Settings

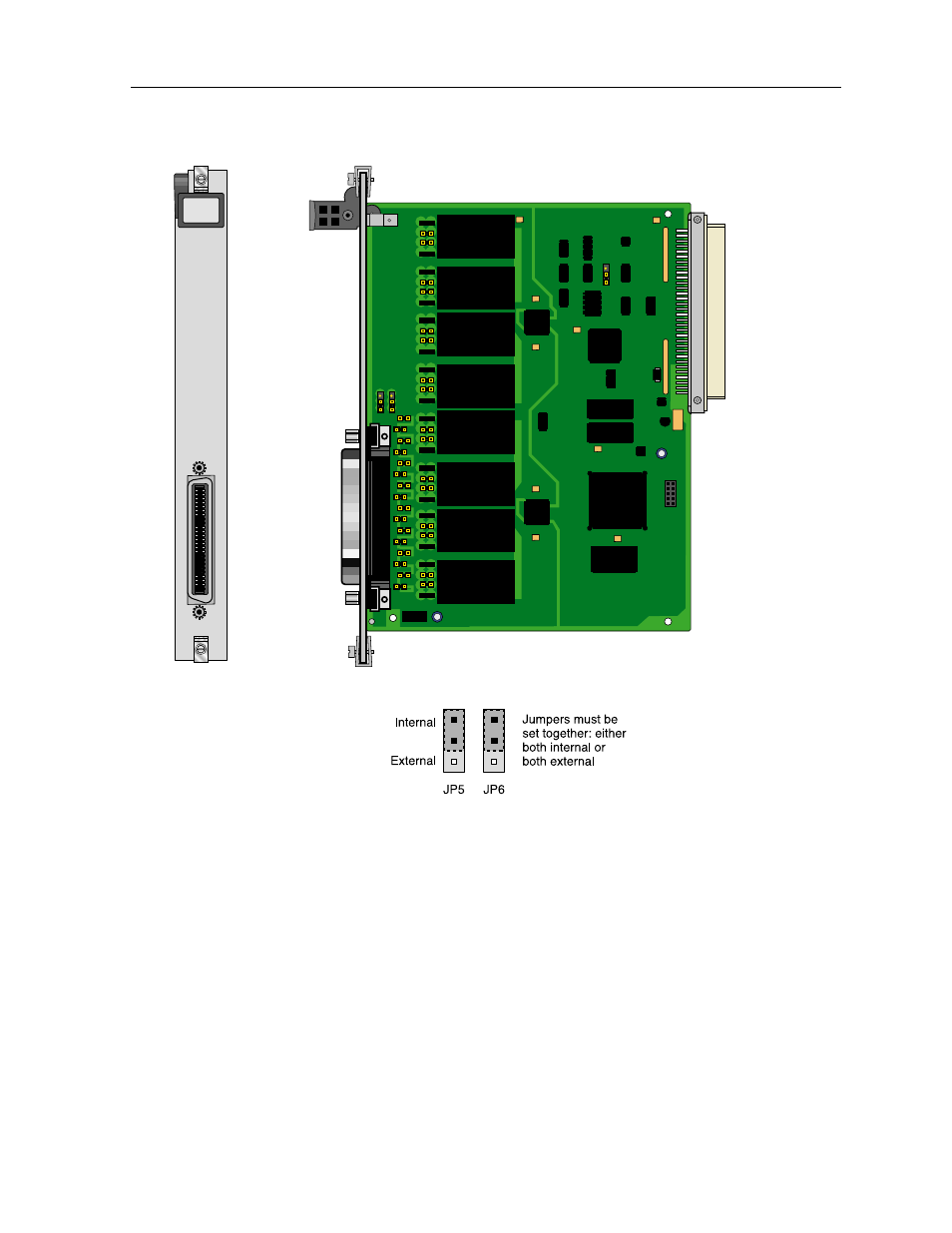

Figure 5-6. BRI-ST*8 Card Jumpers (826270)
5.3.3.2
Installing the BRI-ST*8 Card
Install the BRI-ST*8 card into any user card slot. These slots are U1 to U8 on the two-sided
chassis and front-loading chassis with power supplies on top, and P1 to P4 or W1 to W4 on
the front-loading chassis with power supplies on the side.
BRI "S"
*8
P
1
Power
Bus
Edge
Connector
Amphenol
Connector
JP701
JP704
JP5/6
JP103
JP102
