HSU Card

HSU Cards

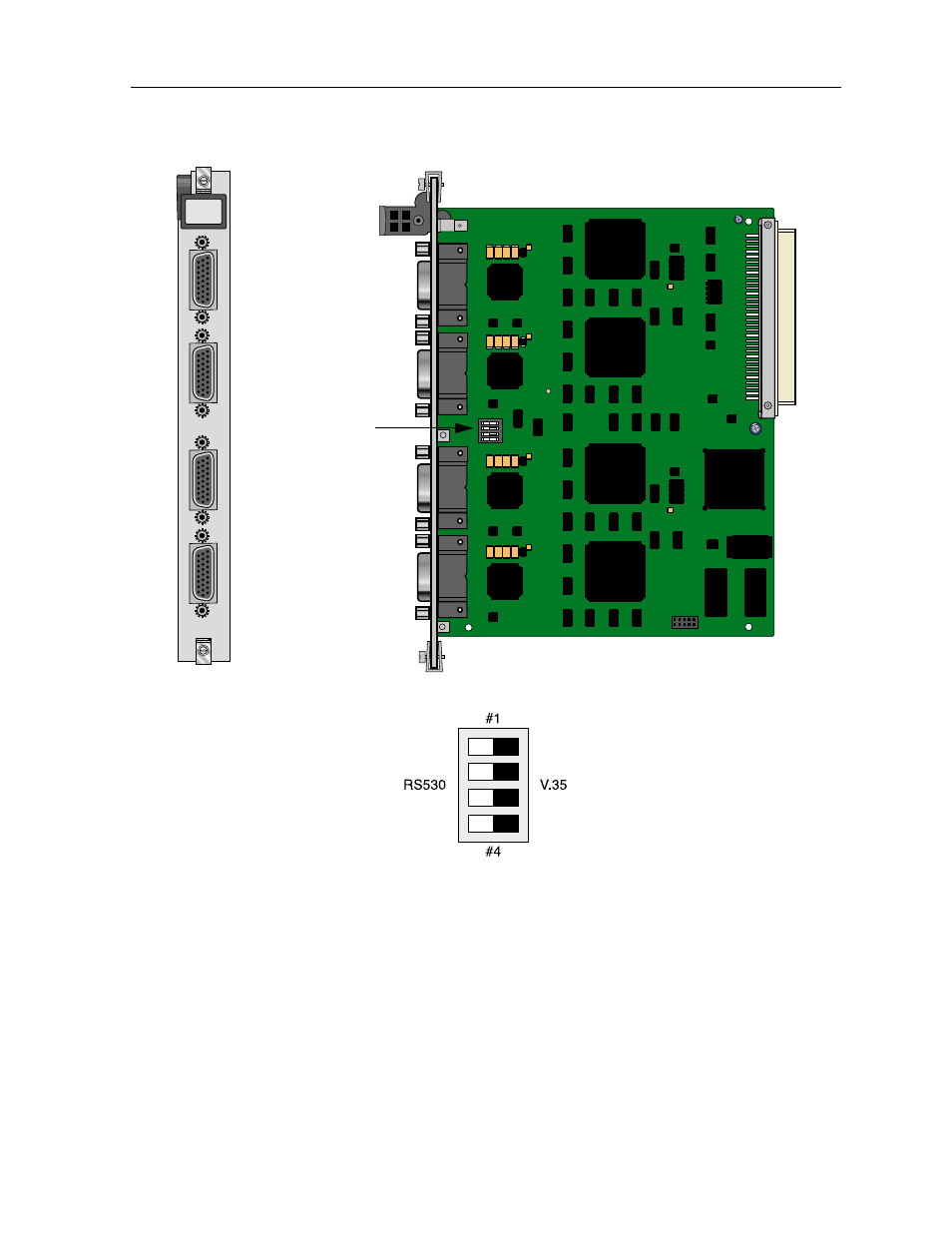

Figure 1-5. Four-Port HSU*4E 530/35 SS Card Switches

1.2.7.3

Installing the Four-Port HSU*4E 530/35 Card

Install the Four-Port HSU*4E 530/35 Card into any user card slots. These slots are U1 to U8
on the two-sided chassis and front-loading chassis with power supplies on top, or P1 to P4 and
W1 to W4 on the front-loading chassis with power supplies on the side.

HSU*4E

530/35

P
1

P
2

P
3

P
4

HSU RS530/V.35 Port #1

HSU RS530/V.35 Port #2

HSU RS530/V.35 Port #3

HSU RS530/V.35 Port #4

See below
