Page 94

7 Appendix

7.2.2 For FoUSB Driver

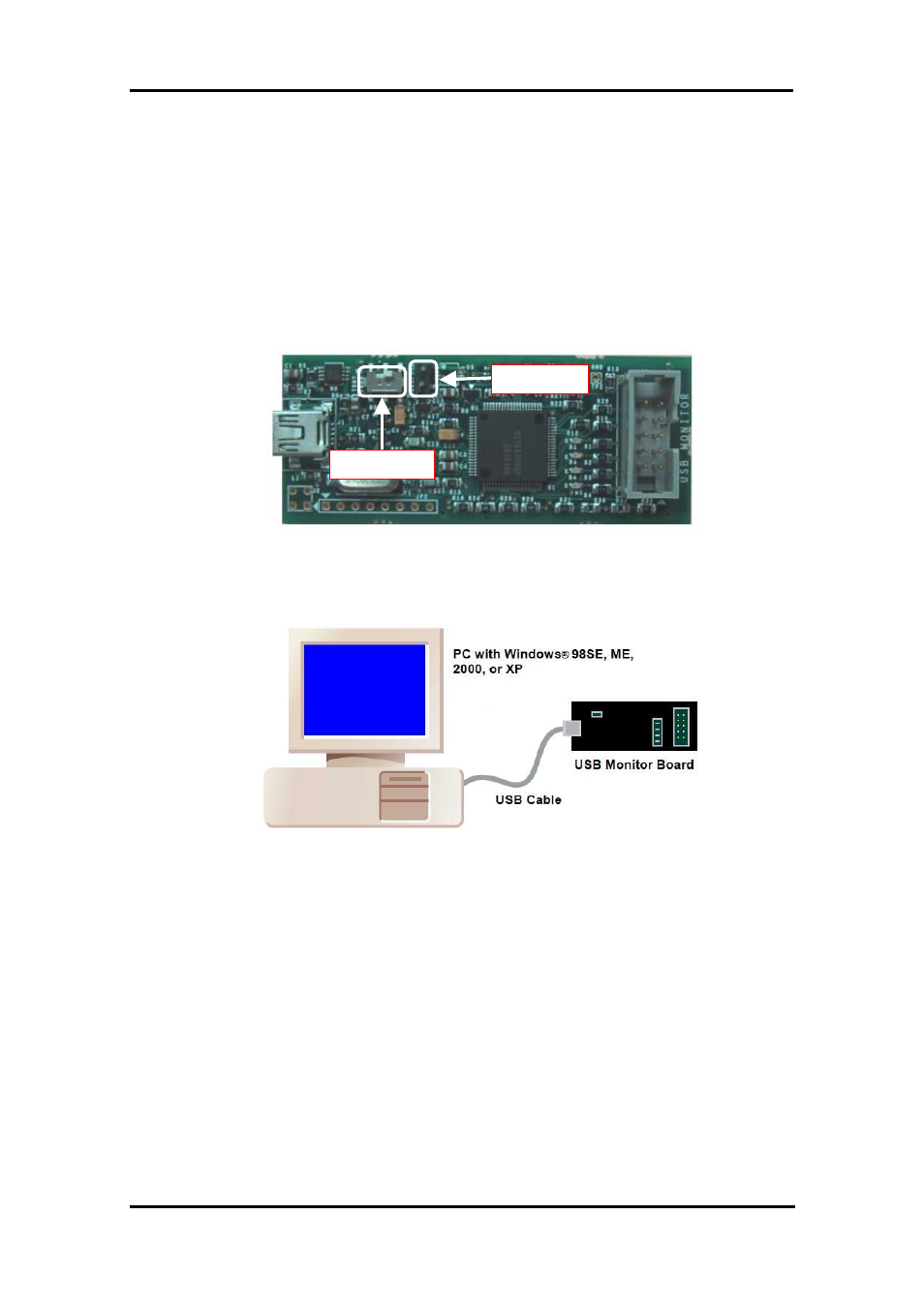

1) Remove the cover of USB Monitor Board and make a USB Monitor Board (Board) the

following setup, before installing FoUSB Driver. If a setup is completed, attach a cover in a

USB Monitor Board (Board).

Power Source Supply Selector (S1: Power Mode): USB side

MCU Mode Pin (JP1: MCU Mode): Shorted

Shorted

USB side

2) Connect the USB Monitor Board included with the package to the USB port of your host

computer (PC). The Power indicator (D1: Power) of USB Monitor Board lights.

3) Windows system recognizes new hardware. The following installation methods are the

examples which used Windows 98SE. Although the installation methods differ a little for every

operating system, it is installable by the almost same operation.
