4 Using the FoUSB

NOTICE: ID code address of MCU

Series

ID code address

M16C/10
M16C/20
M16C/Tiny
M16C/60

ID1: 0FFFDFh
ID2: 0FFFE3h
ID3: 0FFFEBh
ID4: 0FFFEFh
ID5: 0FFFF3h
ID6: 0FFFF7h
ID7: 0FFFFBh

M16C/80
M32C/80

ID1: 0FFFFDFh
ID2: 0FFFFE3h
ID3: 0FFFFEBh
ID4: 0FFFFEFh
ID5: 0FFFFF3h
ID6: 0FFFFF7h
ID7: 0FFFFFBh

R8C/Tiny ID1:

0FFDFh

ID2: 0FFE3h
ID3: 0FFEBh
ID4: 0FFEFh
ID5: 0FFF3h
ID6: 0FFF7h
ID7: 0FFFBh

740
38000

ID1: 0FFD4h
ID2: 0FFD5h
ID3: 0FFD6h
ID4: 0FFD7h
ID5: 0FFD8h
ID6: 0FFD9h
ID7: 0FFDAh

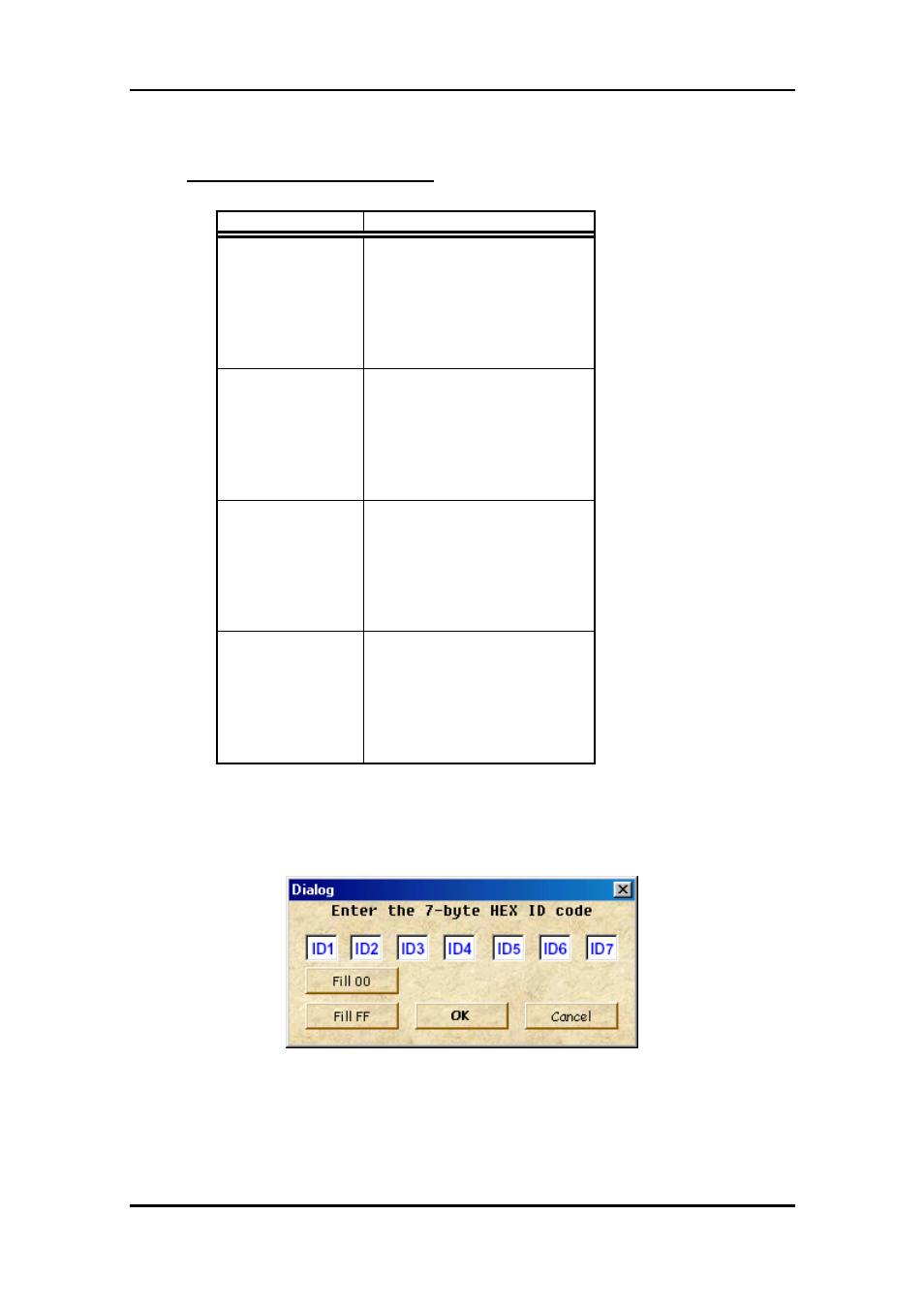

The ID code address of MCU and the ID code input forms of FoUSB are the

following relations.

40
