5 Using the KD

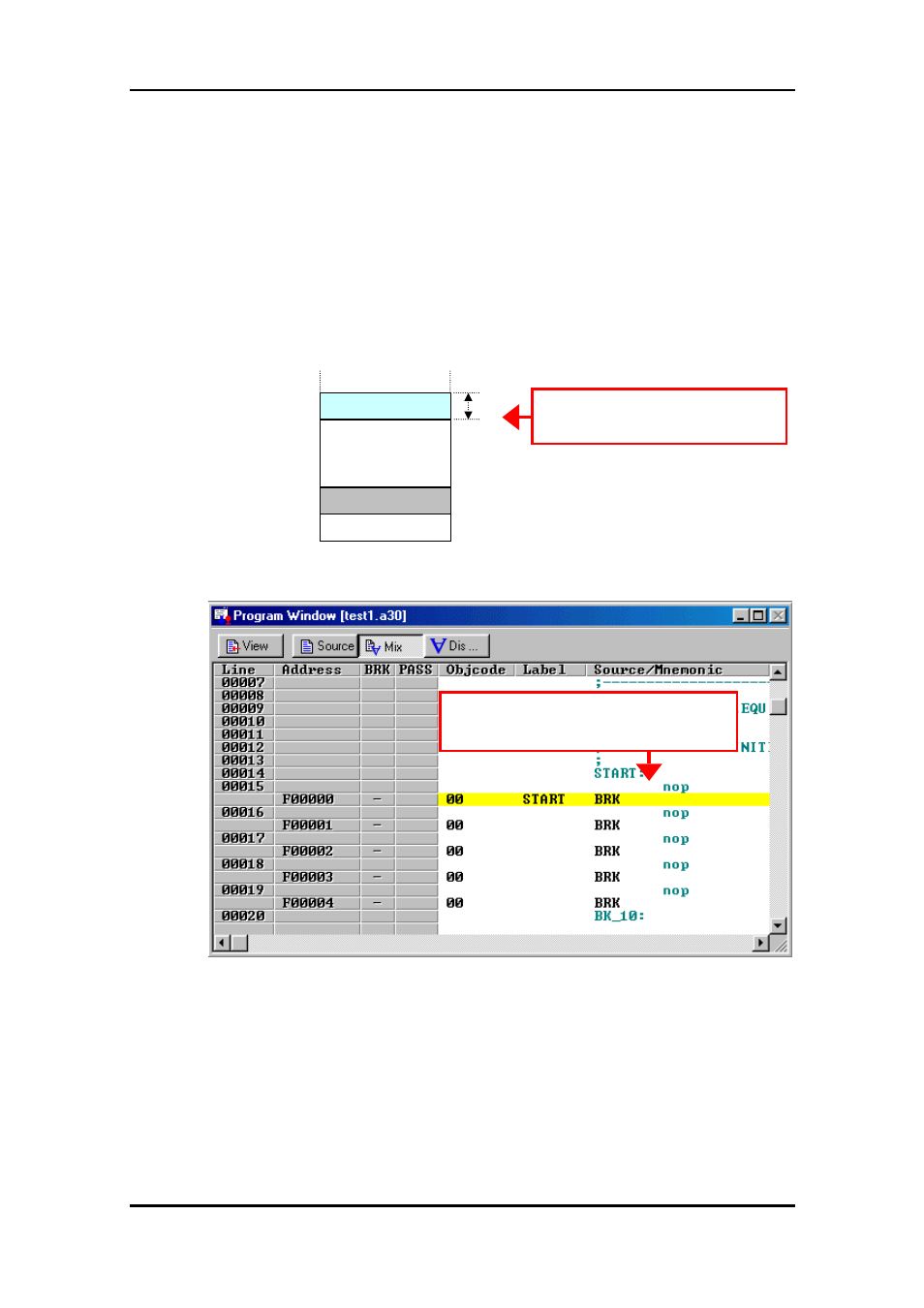

(a) At first an example to which the Emulation Memory overlaps the User Program is
shown. In this example, the User Program is allocated from F00000h and the
Emulation Memory is allocated from F00000h (using default value F0 of bank
address). Therefore, the Emulation Memory overlaps the User Program and contes
of the User program and asseble codes are not matched.
64KB Emulation Memory
Fixed Vector Table
Monitor Area
User Area
The Emulation Memory overlaps
the user program.
Bank Address
F0 0000h
F10000h
FFF900h
FFFEFFh
FFFFFFh
The user program code (NOP) and
asseble code (BRK) are not matched.
