4 Using the FoUSB
(2) Manual setting
If you click the “UNLOCK” button, Figure 4-17 will be displayed. Enter the ID code
and click the button.
When the ID code written in the Target MCU matches with the input ID code and
Figure 4-18 will be displayed. When the ID code does not match, Figure 4-19 will
be displayed (Target MCU is locked) and enter the correct ID code.

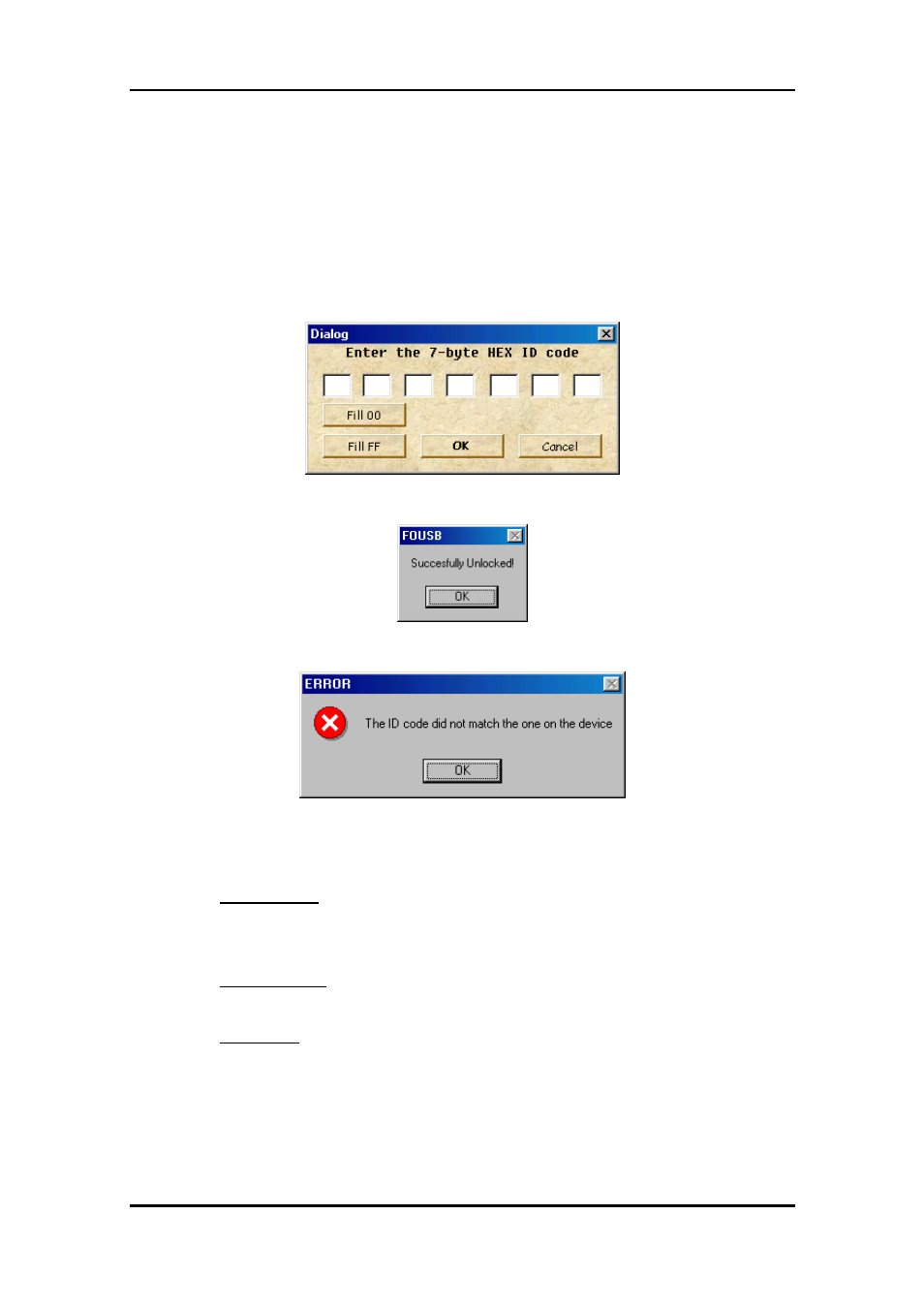

Figure 4-17 ID code dialog
Figure 4-18 ID code match
Figure 4-19 ID code not match
The setting method of the ID code is the following.
a. Macro input
The button or the button is clicked, and input “All 00h” or “All
FFh”.
b. Manual input
Input the ID code by the keyboard input.
c. File input
Input the HEX file or Motorola file which has an ID code.
The example of File input is shown in the next page.
