4 Using the FoUSB

4.1.3 Details of Main Button 1

1) “OPEN” button

This button reads the downloading (programming) file to the Target MCU.

(1) Click the “OPEN” button, and the screen shown in Figure 4-5 will appear, allowing

you to choose the file to download into the Target MCU. The type of file that can be

downloaded is HEX or Motorola. After selecting the file to download, click the

button.

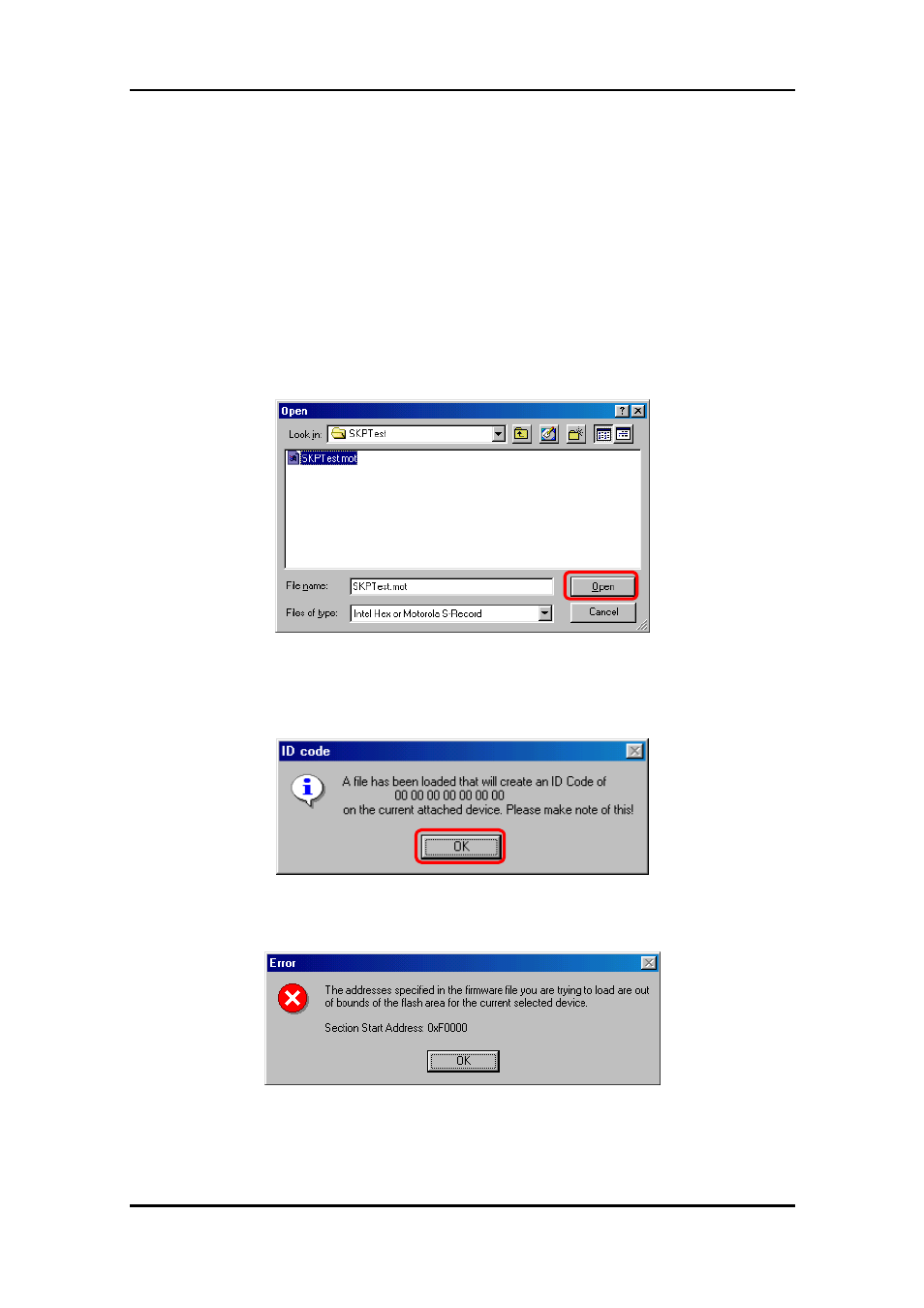

Figure 4-5 Open screen

(2) The ID code is automatically read in. Click the button.

If file don’t have ID code, a message is not displayed.

Figure 4-6 ID code screen

Note: A file which is out of flash area cannot be open.
