Renesas M16C FAMILY User Manual
Page 93
7 Appendix

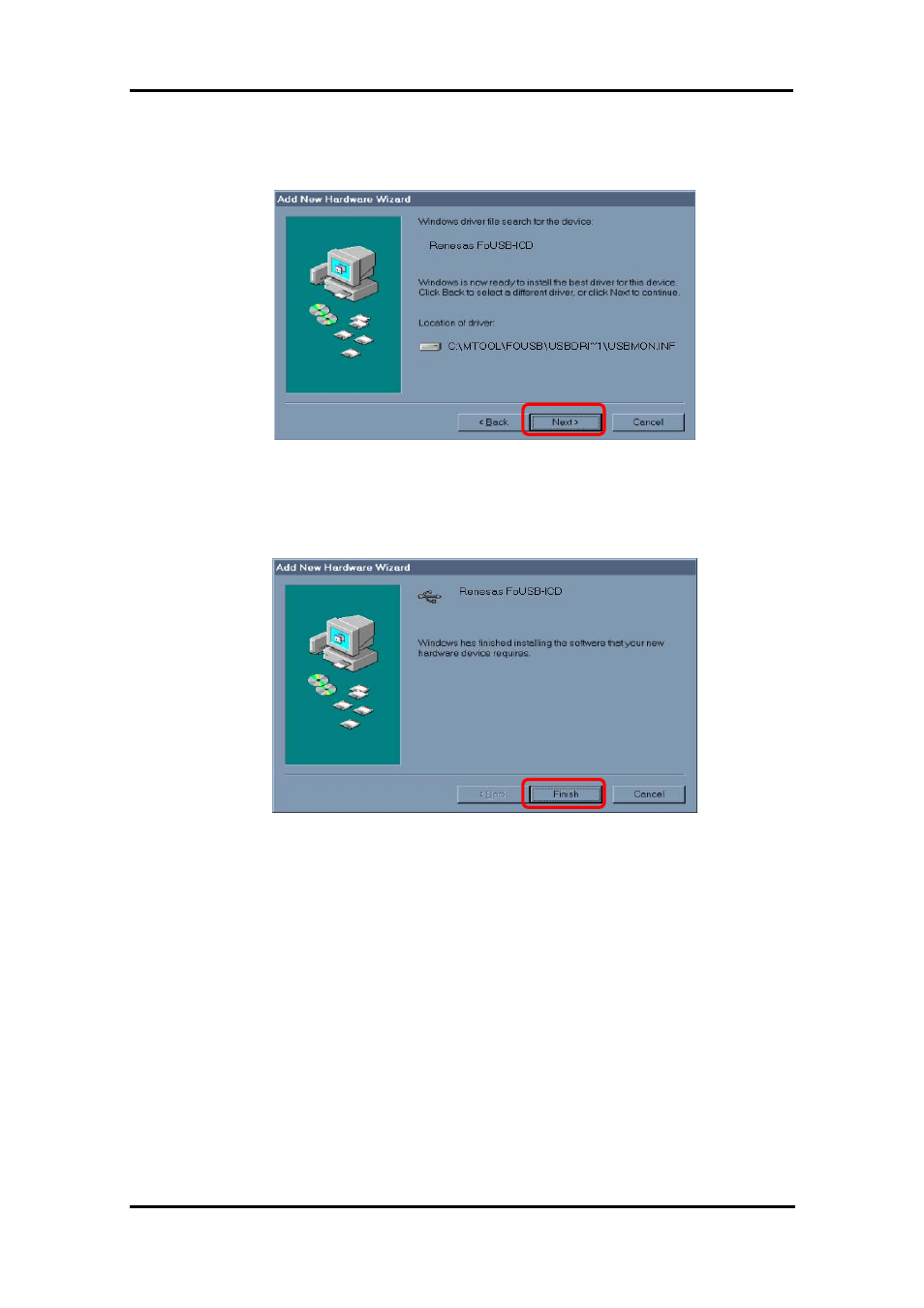

7) When the Windows system has been prepared to install the driver the wizard shown in
Figure 7-3 appears. So click the
Figure 7-3 USBMON Driver-1
8) When the Windows system has finished installing the driver, the wizard shown in Figure 7-4
appears. So click the
Figure 7-4 USBMON Driver-2
9) Installation of a USBMON Driver, and recognition fo USB Monitor Board have been finished.
Separate USB Monitor Board from your host computer (PC).
